R3765/67G Series Network Analyzer Operation Manual
5.2 Transmission/Reflection Characteristic Measurement (Four Screen Display Mode)
5-24
Dual-display channel 1 (channel 3) and channel 2 (channel 4).
[DISPLAY] {DUAL CH ON/OFF}
Then the active channel becomes channel 4.
Each time [CH 2] is pressed, the channel is switched to 2.
When channel 1 or channel 3 is required to change to active channel, press [CH 1].
The display on the screen is as follows.

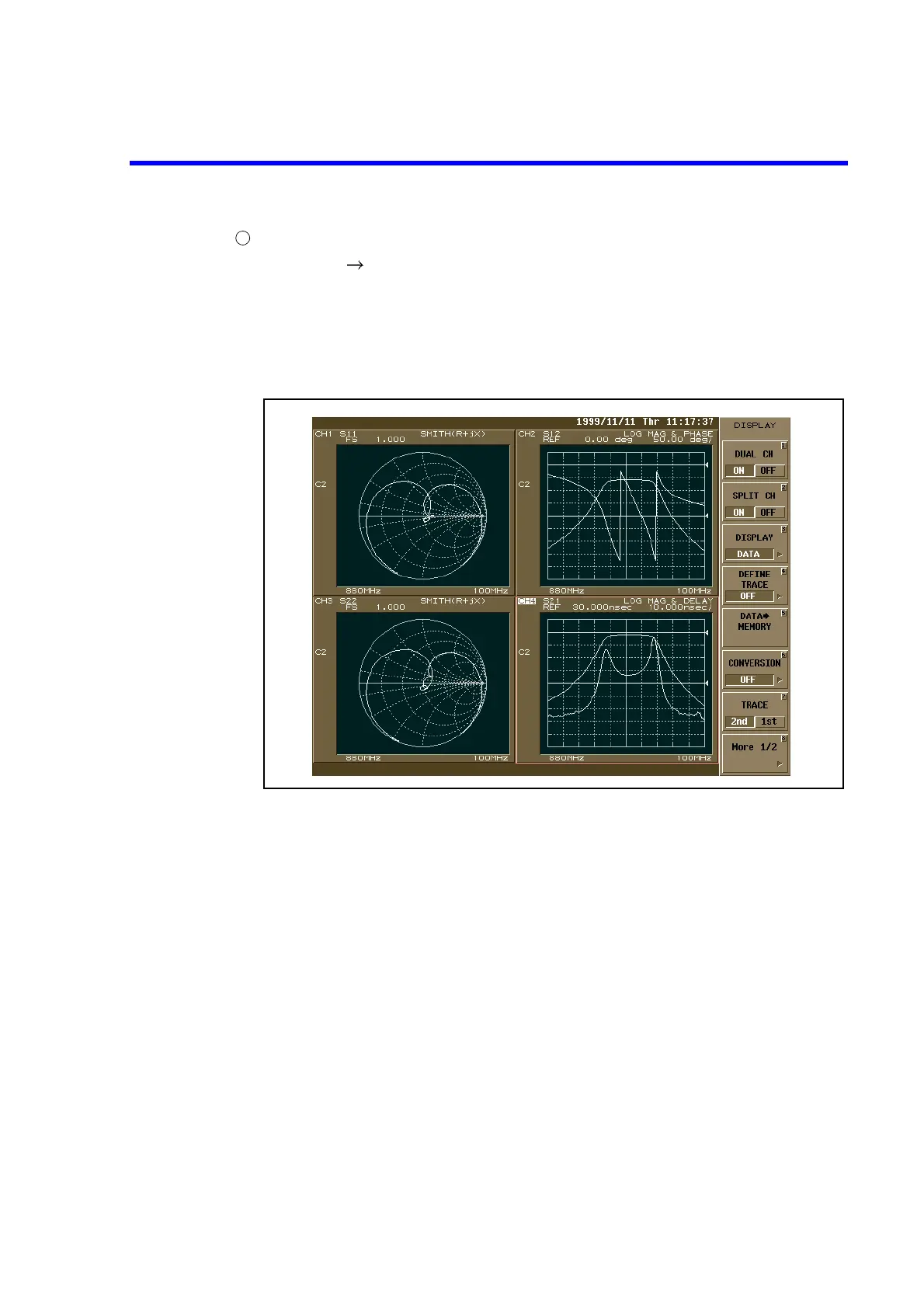

Figure 5-22 The Finished 4 Screen Display
