ADVANTEST R3765G Series User Manual

R3765/67G Series Network Analyzer Operation Manual
10.6 Load Match of Test Port
10-15
(2) Load match measurement of B PORT
Testing procedure
Setup the R3765AG/67AG as follows.

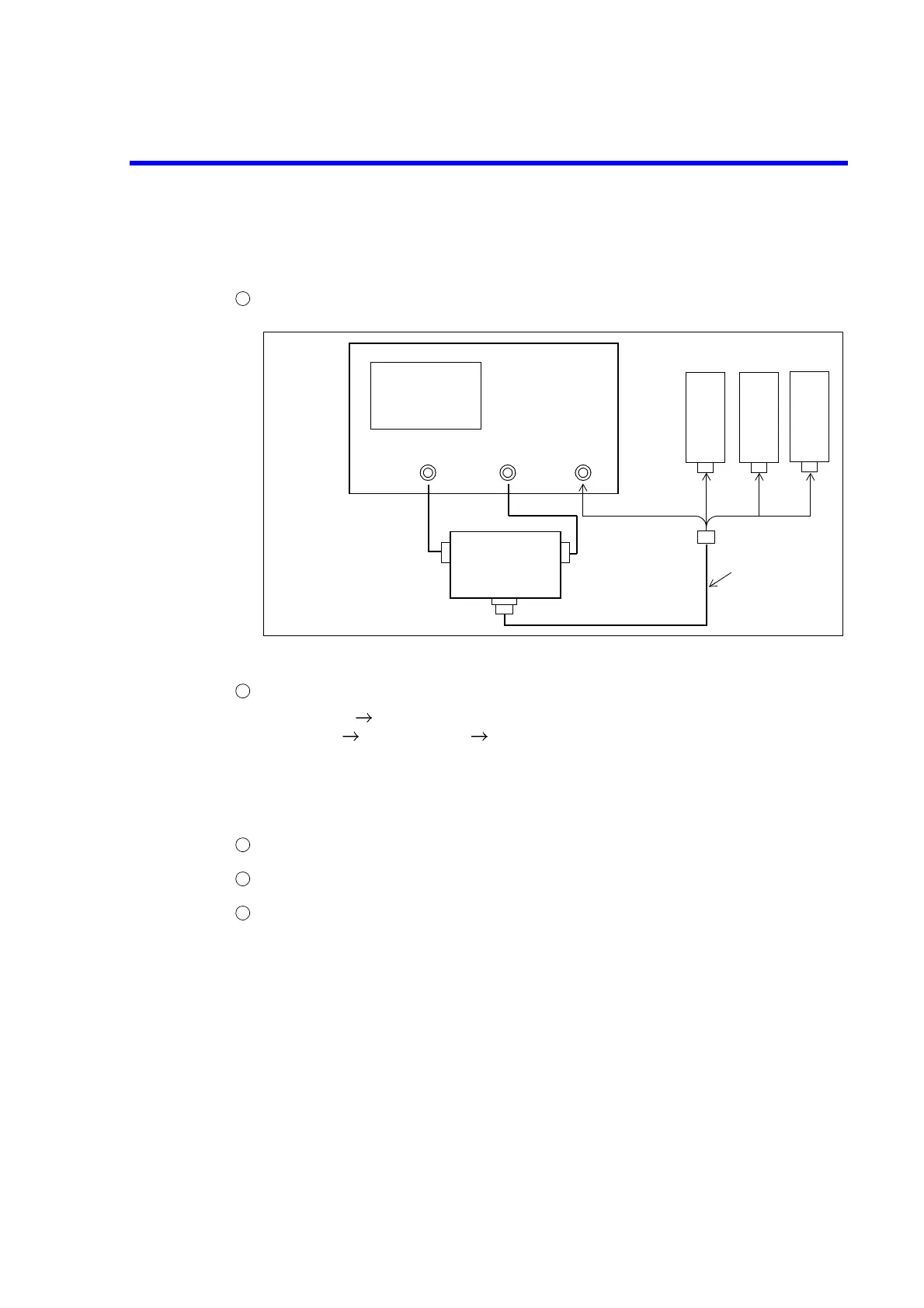

Figure 10-7 Load Match Measurement of B PORT (R3765AG/67AG)
Perform 1 port full calibration.
(a) [MEAS] {A/R}.
(b) [CAL] {CAL MENUS} {1 PORT FULL CAL}.
(c) Connect the open standard to the tip of RF cable and press {OPEN}.
(d) Connect the short standard to the tip of RF cable and press {SHORT}.
(e) Connect the load standard to the tip of RF cable and press {LOAD}.
(f) Press {DONE 1 PORT}.
Connect A PORT of the R3765AG/67AG and the tip of RF cable.
Read the load match of B PORT from trace data with the marker.
<Check> : B PORT load match (in 23°C ± 5°C)
300kHz to 40MHz : -16dB or less
40MHz to 2.6GHz : -18dB or less
2.6GHz to 3.8GHz : -16dB or less
3.8GHz to 8.0GHz : -14dB or less (R3767AG only)
1
SOURCE A PORT B PORT
R3765AG/67AG
OPEN standard
Directivity
bridge
RF OUT
RF IN
TEST PORT
RF cable
SHORT standard LOAD standard
2
3
4
5
