R3765/67G
Series
Network A
nalyzer
Operation M
anual

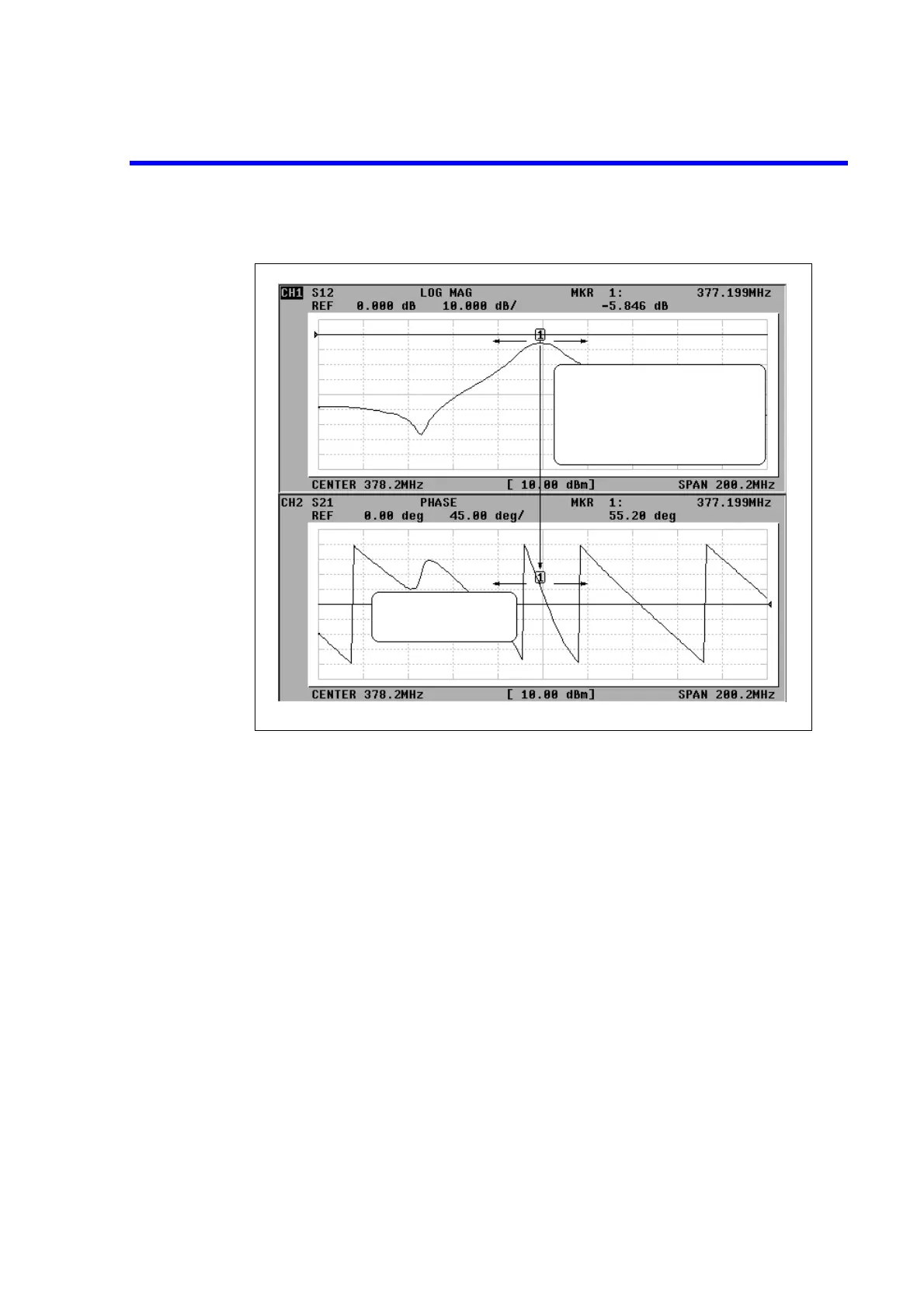

7.6 Marker
Function
7-67
<For
MKR
CP
L>
The inactiv
e cha
nnel mark
er
moves in
respon
se to the
active m
arke
r or st
imulus
data of the a
ctive c
hannel.
This mo
ves in
respo
nse to the
active channel
210
212
Table of Contents
Table of Contents
10
Getting Started
21
Product Description
21
Product and Attachment
22
Option, Accessory and Recommended Kit (Extra-Cost)
23
Environmental Conditions
25
Operating Environment
25
Supply Description
27
Power Supply Specifications
27
Replacing the Power Fuse
27
Connecting the Power Cable
28
System Setup Cautions
29
Notes on the Use of Parallel I/O Ports
29
Notes on the Use of Serial I/O Ports
29
Note on the Probe Connector
29
Measurement Time
29
Input Signal Level Overload Cautions
29
How to Replace the Protective Fuse for Bias Input
30
Cleaning, Storage and Transportation
31
Notes on Use
32
Human Body
33
Floor in the Work Area
33
Calibration
34
Replacing Parts with Limited Life
34
Panel Description
35
Front Panel Descriptions
35
Front-Panel Descriptions (R3765AG/67AG)
35
Front-Panel Descriptions (R3765AG/67AG)
36
R3765Bg/67Bg
37
Front-Panel Descriptions (R3765BG/67BG)
37
Front-Panel Descriptions (R3765BG/67BG)
38
R3765Cg/67Cg
39
Front-Panel Descriptions (R3765CG/67CG)
39
Front-Panel Descriptions (R3765CG/67CG)
40
R3765Cg/67Cg (Opt11)
41
Front-Panel Descriptions (R3765CG/67CG (OPT 11))
41
Front-Panel Descriptions (R3765CG/67CG (OPT11))
42
R3765Cg/67Cg (Opt14)
43
Front-Panel Descriptions (R3765CG/67CG (OPT 14))
43
Front-Panel Descriptions (R3765CG/67CG (OPT14))
44
Rear Panel Descriptions
45
Rear Panel Descriptions (R3765CG/67CG)
46
Screen Display Descriptions
47
Screen Display Descriptions
48
Basic Operating Guidelines
49
Initial Power-On
49
Connecting the Power Cable
49
Setting Screen When Switch on or Preset
50
Operation Keys
51
Panel Keys and Soft Keys
51
Displayed Active Area
53
How to Set Data
54
How to Read the Display Screen
55
Annotation on the Screen (Annotation Character)
55
Basic Measuring Procedure
56
Measurement Samples of Simple Transmission Characteristics
57
The Setup of Transmission Characteristic Measurement (AG Type)
57
The Setup of Transmission Characteristic Measurement (BG/CG Type)
57
Calibration (Normalize)
59
Screen of Frequency Characteristic Normalize
59
Magnitude Measurement
60
Auto-Scale of Magnitude Measurement
60
Filter Analyzing Function (3Db Bandwidth and Q Measurement)
61
Filter Analyzing Function (6Db Bandwidth and Q Measurement)
62
Phase Measurement
63
Auto-Scale of Phase Measurement
64
Phase Extension Display
64
Group Delay Measurement
65
Auto-Scale of Group Delay Measurement
66
Change of Group Delay Aperture
67
Measurement Samples of Simple Reflection Characteristics
68
Setup for Reflection Characteristic Measurement (AG Type)
68
Setup for Reflection Characteristic Measurement (BG/CG Type)
69
Calibration (1-Port Full Calibration)
70
Port Full Calibration (Open)
71
Port Full Calibration (Load)
72
Measurement by Various Formats
73
Return Loss Measurement
73
Reflection Coefficient Measurement
74
Standing Wave Ratio (SWR) Measurement
75
S Parameter Measurement
76
Impedance Measurement
77
Basics Operation
78
Basic Keys Operations
78
Basic Key Operation Examples
78
Soft Key Menu Configuration
79
Initial Setup
80
Initial Setup Value
80
Initial Setup Value (1 of 3)
80
Setting Backup Memory (Factory Default Settings)
84
Setting Backup Memory
84
Measurement Method Example
85
Measurement of Transmission Characteristic (2 Trace Display)
85
Overlap Display Mode (Two Traces Per Screen Measurement)
85
Auto-Scale of the First Trace of Magnitude/Phase Measurement (Overlap Display)
86
Auto-Scale of the Second Trace of Magnitude/Phase Measurement (Overlap Display)
87
Logarithmic Magnitude/Group Delay Measurement (Overlap Display)
88
Linear Magnitude/Phase Measurement (Overlap Display)
89
Split Display
90
Logarithmic Magnitude/Phase Measurement (Split Display)
91
Logarithmic Magnitude/Group Delay Measurement (Split Display)
92
Linear Magnitude/Phase Measurement (Split Display)
93
Transmission/Reflection Characteristic Measurement (Four Screen Display Mode)
94
Setup of the Reflection Characteristic Measurement
94
Calibration (Two Port Full Calibration)
95
Calibration of 2-Port Reflection (Test Port/Open)
95
Calibration of 2-Port Reflection (Test Port/Short)
96
Calibration of 2-Port Reflection (Test Port/Load)
97
Execution of 2-Port Reflection Characteristic Calibration
98
Calibration of 2-Port Transmission Characteristic (Forward Direction)
99
Execution of 2-Port Transmission Characteristic Calibration
100
Execution of the Isolation Calibration
101
Execution of 2-Port Full Calibration
102
Four Screen Display
103
Screen Display (Channel 1)
103
Screen Display (Overlap Display of Channel 1 and 3)
104
Screen Display (Split Display of Channel 1 and 3)
105
Screen Display (Channel 2)
106
Screen Display (Split Display of Channel 2 and 4)
107
The Finished 4 Screen Display
108
Narrow Band/Wide Band Sweep Measurement
109
Two Channels Simultaneous Display (Overlap Display)
110
Two Channels Simultaneous Display (Split Display)
111
Multi-Marker List Display
112
Multi-Marker Display
113
Display of Multi-Marker List
114
Ripple Measurement in the Bandwidth
115
Specification of Delta Section (Partial Search)
116
Measurement of Maximum Value in the Delta Section
117
Measurement of Minimum Value in the Delta Section
118
Measurement of Ripple in the Delta Section
119
Measurement of Electrical Length
120
Electrical Length of Cable
121
Electrical Length Correction Mode
122
Measurement of Electrical Length
123
High-Speed Measurement Using the Program Sweep Function
124
Linear Sweeping
124
Setting of Program Sweeping
125
Execution of the Program Sweep
127
Change of the Program Sweep
128
GO/NG Measurement Using Limit Line Function
129
Screen before Execution of Limit Line Measurement
129
Setting of the Limit Line
130
Limit Line Editing
131
Setting of Segment 0
131
Setting of each Segment
133
Execution of Limit Test
134
Change of Limit Line
135
RECORD and OUTPUT
136
Output of Measured Data to the Plotter
136
Setting of Plotter GPIB Address
136
Change of Plotter Initial Setup Value (Initial Value)
137
Output Data to the Plotter
138
Output Result of the Plotter
139
Using the Save/Recall Register
140
Saving into the Save-Register
140
Recalling from the Recall-Register
141
Saving to the Floppy Disk
142
Saving to the Floppy Disk
143
About the Measurement Data to Save
144
Recall from Floppy Disk
144
Function Descriptions
145
ACTIVE CHANNEL Block
145
ENTRY Block
147
STIMULUS Block
149
Setting Signal Source
150
Interlocking between Channels
152
RESPONSE Block
153
Setting Input and Parameter Conversion
154
Display Data Format
158
Setting Display Coordinate Scale
159
Four Screen Display and Display Selection Information
160
Display Layout
162
Trace Data Selection
167
TRACE Operation
168
Label Input
169
Colors Settings
170
Averaging/Smoothing and Resolution Bandwidth
172
Calibration
175
Normalizing
175
Normalize & Isolation Calibration
176
1-Port Full Calibration
176
2-Port Full Calibration (R3765CG/67CG Only)
178
Calibration Method
180
Interpolating Calibration Data
186
Combination of Interpolatable Sweep Type (O; Possible, X; Impossible)
186
Status Display
186
Calibration Kit Selection
187
Parameters Entry of an User-Selected Calibration Kit
188
Extending Measurement Reference Plane
191
Calibration Data Clear
194
3-Port Full Calibration
195
4-Port Full Calibration
202
Directivity
203
Marker Function
208
Setting Marker
209
Marker Coupling between Channels
210
Interpolation between Measurement Points
212
Displaying Marker Read out Value
212
Delta-Marker Function
213
Marker Menu During Impedance Measurement
216
Marker Analysis Function
217
Band Pass Filter Analysis/Max Reference
223
Band Pass Filter Analysis/Active Marker Reference
224
Band Pass Filter Analysis/Reference Line Reference
224
Notch Filter Analysis/Max Reference
225
Notch Filter Analysis/Active Marker Reference
225
Notch Filter Analysis/Reference Line Reference
226
Example of Filter Analysis Execution
226
Time Domain Function(OPT 70)
228
Time Domain Transformation Function
228
Window Processing
230
Gate Function
231
Time Domain Transformation Mode
232
Transformation of the Time Domain Horizontal Axis
232
CDMA if Filter Analysis Function
233
Setting Sweep Type
237
Editing Segment of User Frequency Sweep
238
Editing Segment of Program Sweep
239
The Screen before the Segment Edited
240
The Screen after the Segment Edited
241
Software Fixture Function (OPT 71/72)
242
Overview
242
Measurement Flow Used with OPT
242
Function
243
Measurement Flow Used with Network Elimination Function
243
Dynamic Range When Changing the Impedance
244
Reflection Parameter
245
Transmission Parameter
245
Transformer
246
Measurement Example
263
Measurement Jig for Balanced Input and Balanced Output Filter
263
INSTRUMENT STATE Block
271
System Menu
272
System Configuration
274
Service Function
275
Limit Function
276
Limit Menu
276
GPIB Block
282
Controller Menu
283
GPIB Menu
284
Save/Recall
285
Selection of Save Type
285
Executing Save Register
286
File List Display
286
Executing Store File
288
Setting Register Name
289
Label Window Display
289
Register List Display
289
Setting File Name
290
Clearing Saved Register
291
Purging Stored File
292
Executing Recall
292
Hard Copy
295
Setting Plot Scale
296
Selecting Plot Data
297
Specifying Pen
297
Plotter Setup
298
Setting DIP Switches
299
DSW1 Function
299
Printer Setup
300
DSW2 Function
300
Bitmap File Setup
302
Communication with Peripheral Devices
303
Parallel I/O Port
303
Timing Chart of WRITE STROBE
303
Parallel I/O (36-Pin) Connector Pin Assignment and Signal
305
Schematic Circuit Diagram of Parallel I/O Port
306
Interface
312
In Abnormalities
313
Inspection and Simple Troubleshooting
313
Error Messages
314
Hardware Trouble
314
Notice of Hardware Information
315
Operating Error
316
Warning of Internal Set, Change, Etc
321
Completed Operation Conditions Messages
324
Principle
325
Data Flow
326
Required Measurement Instrument for Performance Test (1 of 3)
327
Required Measurement Instrument for Performance Test (2 of 3)
328
Required Measurement Instrument for Performance Test (3 of 3)
329
General Note
329
Frequency Accuracy and Range
330
Output Level Accuracy and Flatness
331
Flatness
332
Output Level Accuracy and Flatness
333
Output Level Linearity
334
Output Level Linearity
335
Directivity
337
Load Match Measurement of a PORT (R3765AG/67AG)
340
Load Match Measurement of B PORT (R3765AG/67AG)
341
When R3765BG/67BG
342
Load Match Measurement of TEST PORT 1 (R3765CG/67CG)
343
When R3765CG/67CG
343
Load Match Measurement of TEST PORT 2 (R3765CG/67CG)
344
Load Match Measurement of TEST PORT 3 (OPT11/OPT14)
345
Noise Level
347
Crosstalk Measurement of a PORT (R3765AG/67AG)
350
Crosstalk Measurement of B PORT (R3765AG/67AG)
351
When R3765BG/67BG
352
When R3765CG/67CG
353
Crosstalk of TEST PORT 2 (R3765CG/67CG)
354
Crosstalk of TEST PORT 1 (When the Measurement Path Is S12)
355
When R3765CG/67CG (OPT 11/OPT 13/OPT 14)
355
Crosstalk of TEST PORT 1 (When the Measurement Path Is S13)
357
Crosstalk of TEST PORT 1 (When the Measurement Path Is S14)
359
Crosstalk of TEST PORT 2 (When the Measurement Path Is S21)
360
Crosstalk of TEST PORT 2 (When the Measurement Path Is S23)
362
Crosstalk of TEST PORT 2 (When the Measurement Path Is S24)
364
Crosstalk of TEST PORT 3 (When the Measurement Path Is S31)
365
Crosstalk of TEST PORT 3 (When the Measurement Path Is S32)
367
Crosstalk of TEST PORT 3 (When the Measurement Path Is S34)
369
Crosstalk of TEST PORT 4 (When the Measurement Path Is S41)
370
Crosstalk of TEST PORT 4 (When the Measurement Path Is S42)
371
Crosstalk of TEST PORT 4 (When the Measurement Path Is S43)
372
Dynamic Level Accuracy
373
Connections for a PORT Measurement for Dynamic Level Accuracy
374
Check Point for the R3765AG/67AG
375
Connections for B PORT Measurement for Dynamic Level Accuracy
376
Connections for TEST PORT 1 Measurement for Dynamic Level Accuracy
378
Dynamic Level Accuracy for the R3765BG/67BG
378
Check Point for the R3765BG/67BG
379
Dynamic Level Accuracy for the R3765CG/67CG
380
Connections for TEST PORT 2 Measurement for Dynamic Level Accuracy
381
Check Point for the R3765CG/67CG
382
Connections for TEST PORT 1 Measurement for Dynamic Level Accuracy
383
Connections for TEST PORT 2 Measurement for Dynamic Level Accuracy
385
Check Point for the R3765CG/67CG (for OPT 11, OPT 13 and OPT 14)
386
Connections for TEST PORT 1 Measurement for Dynamic Level Accuracy
387
Connections for TEST PORT 3 Measurement for Dynamic Level Accuracy
389
Connections for TEST PORT 4 Measurement for Dynamic Level Accuracy
391
Connections for Attenuation Accuracy Measurements
393
Attenuation Accuracy (OPT10)
393
Appendix
407
A.1.2 the Data Interlocking to each Item in MEAS Menu
408
A.2 Measuring Time
409
A.3 Initial Setting
410
A.4 Soft Key Menu List
415
A.5 Other Information
438
Dimensional Outline Drawing
439
Alphabetical Index
440
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the ADVANTEST R3765G Series and is the answer not in the manual?
Ask a question
ADVANTEST R3765G Series Specifications
General
Brand
ADVANTEST
Model
R3765G Series
Category
Measuring Instruments
Language
English
Related product manuals
ADVANTEST R3131
261 pages
ADVANTEST R3162
588 pages
ADVANTEST R3131A
12 pages
ADVANTEST R3131 Series
276 pages
ADVANTEST TQ8210
37 pages
Need help?
General
To Next Page
