Cordex®CXCHPControllerSoftwareManual|8-Linepowersystems

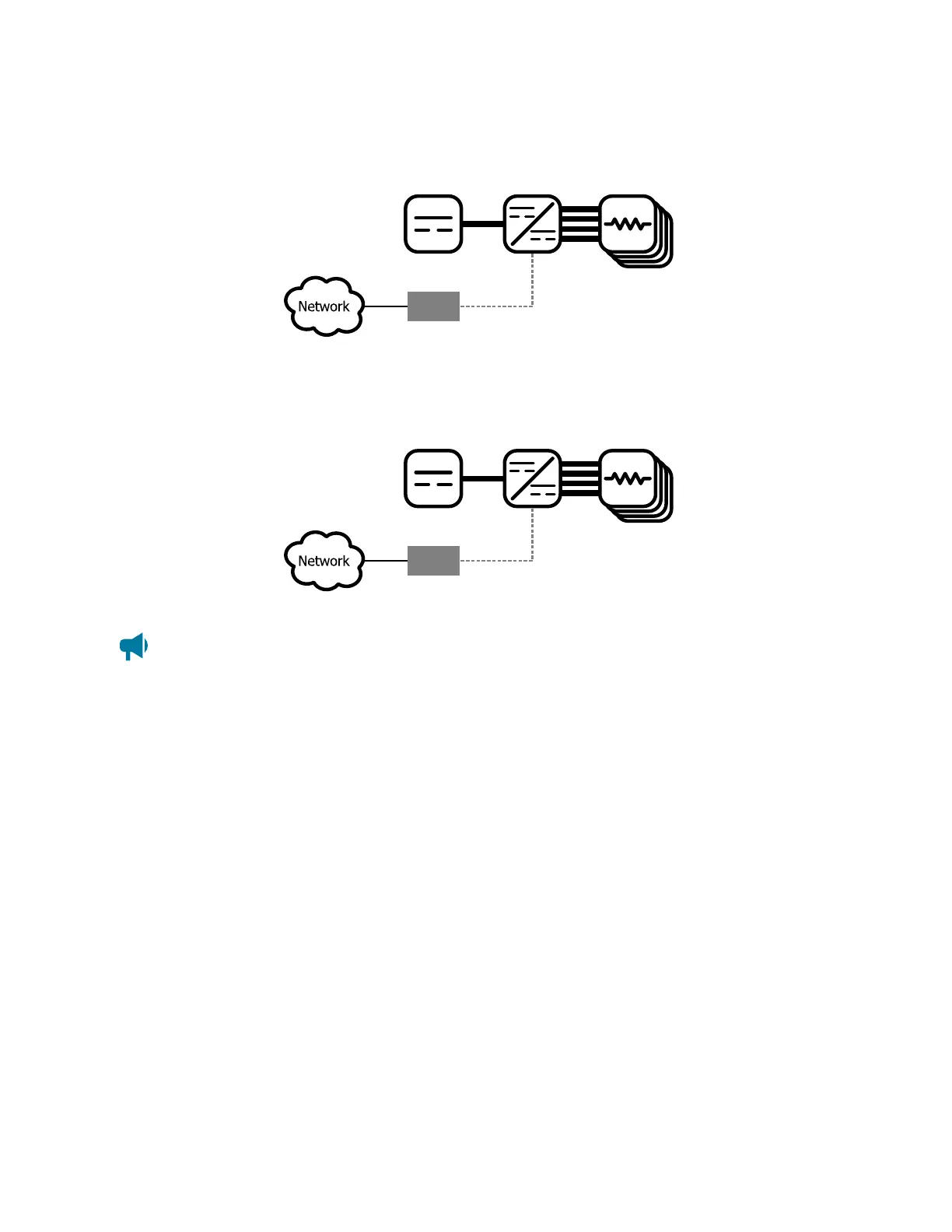

Figure 8-1 ExampleCordex®HPLPS36linepowersystem
CXC HP
DC Source
Line Power
Module
LP Loads
CAN Bus
48V
± 190V
Figure 8-2 ExampleCordex®HPeLimiter+class2distributionsystem
CXC HP
DC Source
eLimiter+
Module
LP Loads
CAN Bus
48V
57V
Notice: Due to the remote location of downconverter modules, they are not monitored by the
controller.
Page 114 0350058-J0 Rev AL
