Cordex®CXCHPControllerSoftwareManual|18-Powerflow
Figure 18-3 Interactingwithpowerflow
ThecontrolsarelocatedalongsidetheHelp buttoninthetopleftcornerofthepowerflow.TheExpand
All buttonletsyouimmediatelyviewallthedetailsofthepowerflowbyshowingallfieldsandalarms.The
Collapse All buttonreturnsthediagramtothecompactstatussummarystate.
18.4. Controller power flow

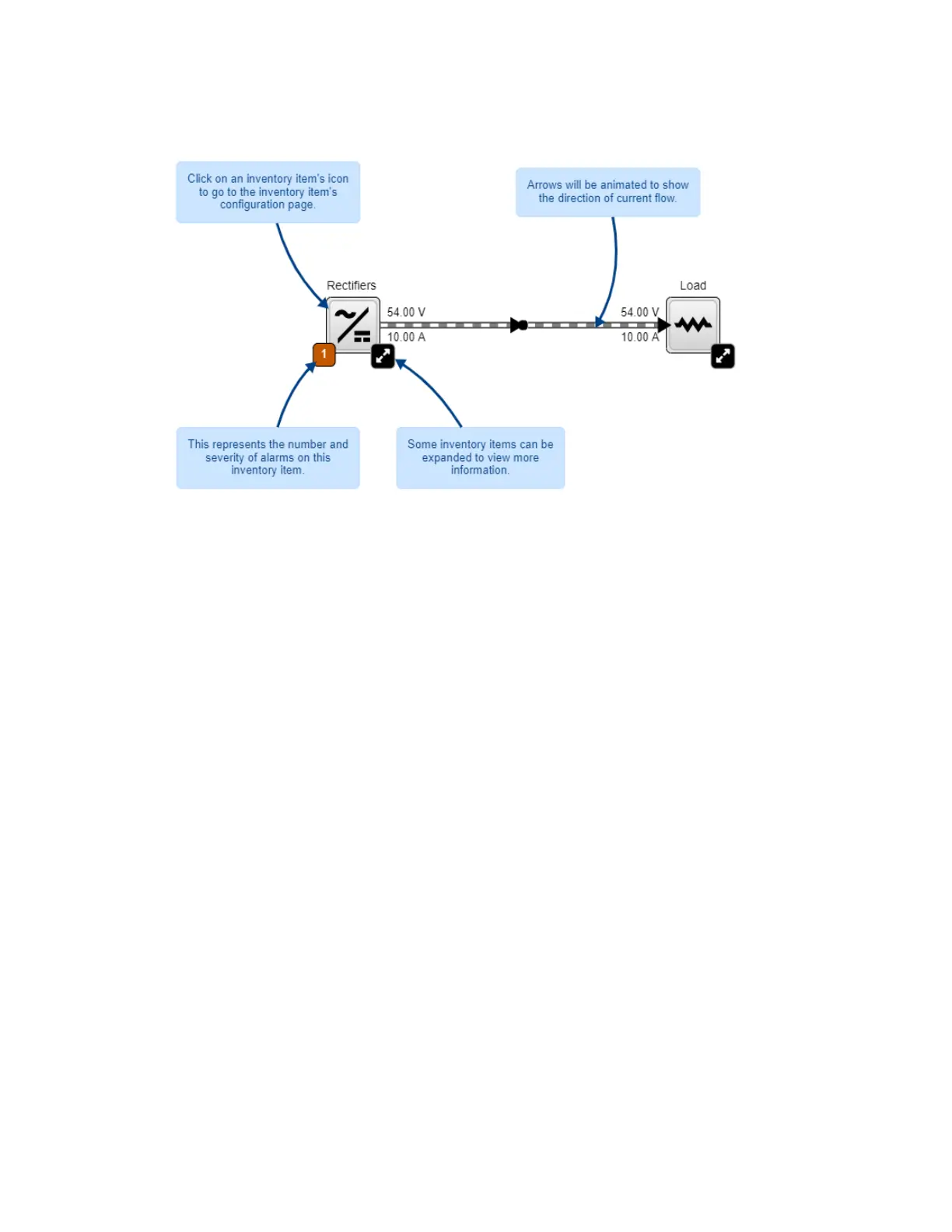

ThecontrollerPower Flow presentsanoverviewonthesystemsconfiguredonthesiteandtheflowof
powerbetweenthem.FromhereyoucangotothePowerFlowofindividualsystemsbyselectingthat
system’sicon.
GrayedoutInventory itemsaretheretohelpdrawamorecompletepicture,orcanbeplaceholdersfor
futuresystems.
Page 164 0350058-J0 Rev AL
