Cordex®CXCHPControllerSoftwareManual|4-Gettingstarted

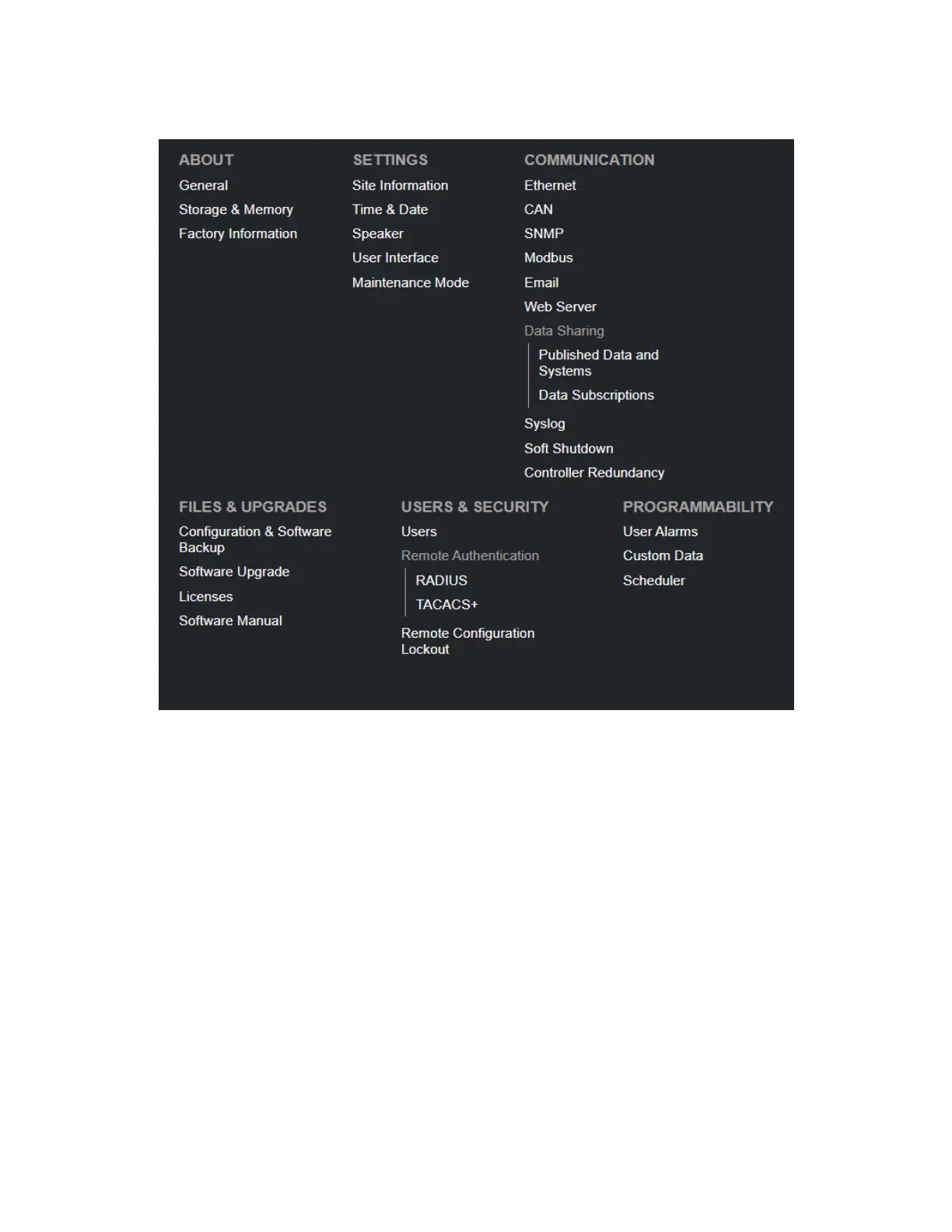

Figure 4-1 Menustructure
4.3.3. Overview of the LCD
TheLCDisatouch-sensitivecolorpanelonthefrontofthecontroller.Thedisplayisalwaysonwhenthe
controllerisfirstpoweredupbutafter20minutesofinactivitytheuserwillbeloggedoutandthedisplay
willbeturnedoff.TouchingthehomebuttonortheLCDinanyspotreactivatestheLCDscreen.
Itispossibletochangetheinactivitytime-outoftheLCDintheController > Settings > User Interface
menu,intheLCD Preferences table.Thetime-outcanbesetto20minutes,1hour,4hours,or8hours.
However,topreventtheLCDfromwearingout,itisstronglyrecommendedtoleavethissettingat20
minutes,unlesstemporarilychangingitforcommissioningordemonstrationspurposes.
TheLCDismostresponsivetotouchwhenfirm,substantialpressureisapplied.TheLCDdoesnot
usuallyrespondtolight,quicktaps.Astylusmaybeusedifdesired.
Thedefaultscreenthatdisplaysonthecontrollerwhenitispoweredupandrunningnormally,iscalled
thedashboard.Seethefollowingfigure.
Page 40 0350058-J0 Rev AL
