Cordex®CXCHPControllerSoftwareManual|18-Powerflow

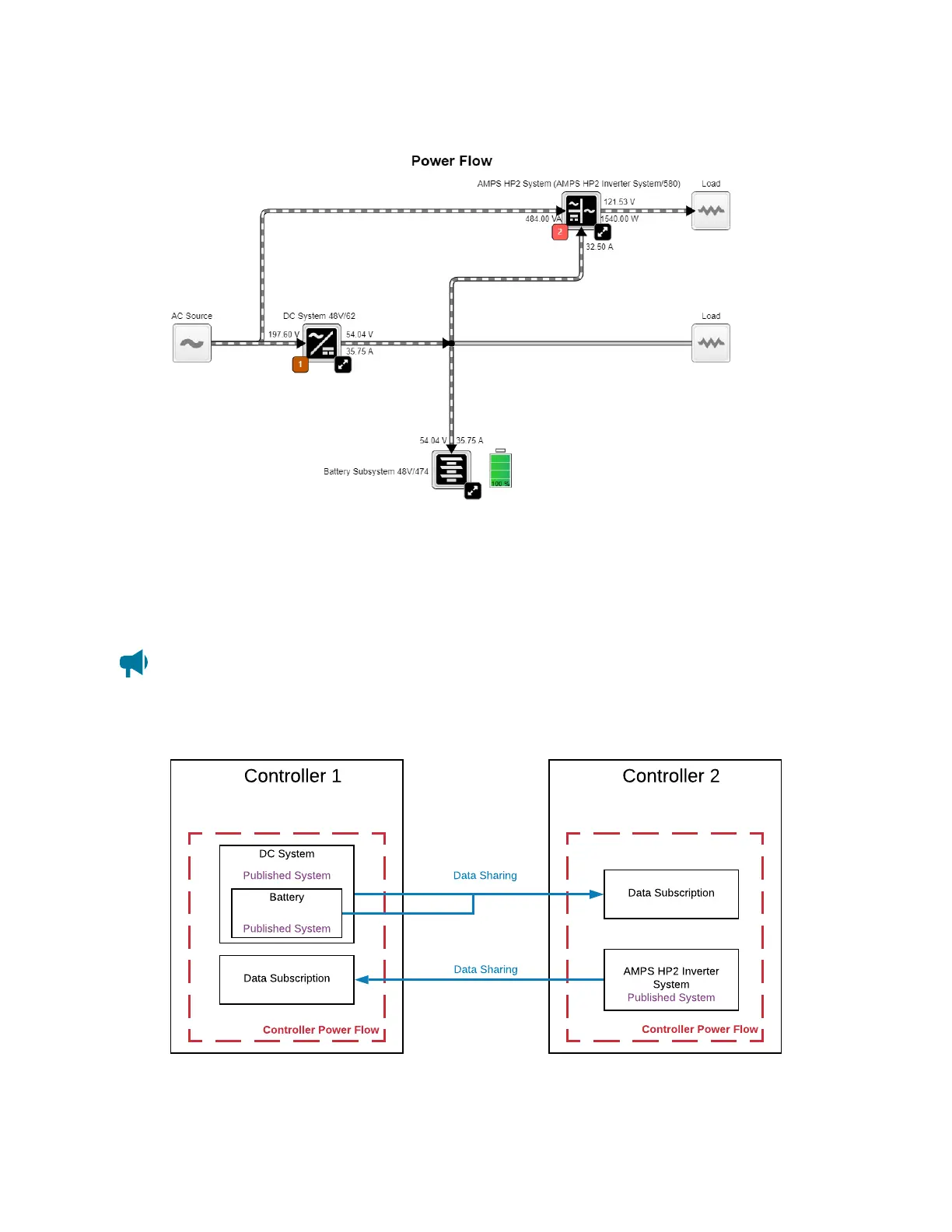

Figure 18-4 Controllerpowerflow
18.5. Power flow for systems managed by different controllers
Forsystemsthataremanagedbydifferentcontrollersbutareelectricallyconnected,Data Sharing can
beusedtogetherwiththeController Power Flow tovisuallyseetheflowofpowerbetweenthetwo
systems.
Notice: In controller software version 6.20 and later, DC and AMPS HP2 Systems can be shared
and shown on the Controller Power Flow.
Figure 18-5 Usingdatasharingtocreatepowerflowacrossdifferentcontrollers
0350058-J0 Rev AL Page 165
