Cordex®CXCHPControllerSoftwareManual|18-Powerflow
18.2.2. Use power flow configuration suggestions
Powerflowcandetectamissingconfigurationfromthesystem’sinventory.Insuchinstances,aspecial
nodewillappeartoallowquickconfigurationofthesystem.Selectingthenodewillbringupadialogtoset
themissingconfiguration.

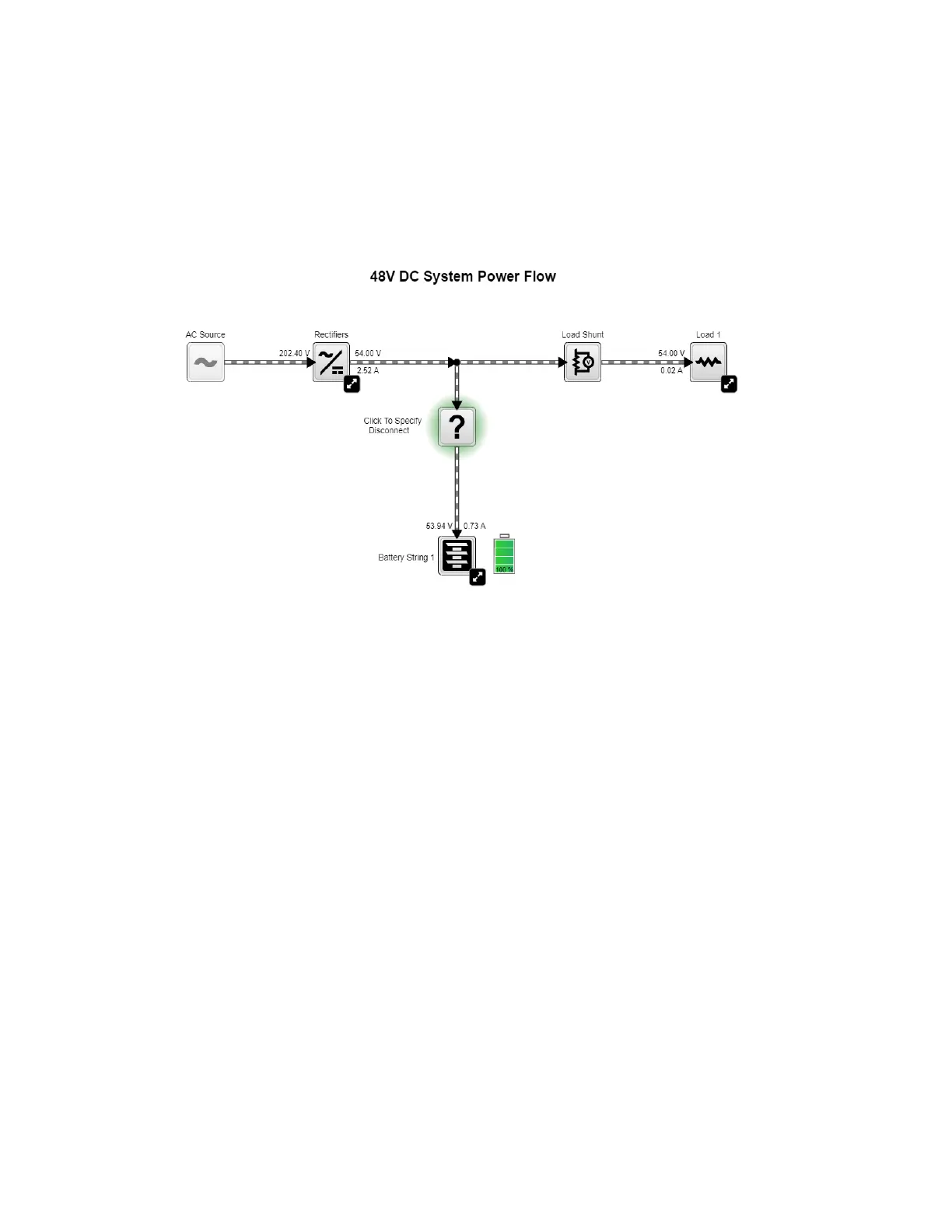

Figure 18-2 Powerflowconfigurationsuggestions
ThisfeaturecanbedisabledunderController > Settings > User Interface > Power Flow
Configuration Suggestions.
18.2.3. Configure the default power flow
IfyoursitehasmultiplesystemssupportedbyPower Flow,youcanconfigureadefault.Thechosen
Power Flow willdisplaywheneveryouselectPower Flow inthemenu.
TosetorchangethedefaultPower Flow,gotoController > Settings > User Interface andsetthe
Default Power Flow field.
18.3. Interact with power flow
Power Flow isaninteractivediagram,assuchonecanexpandelementstoviewmoreinformation,or
selectelementiconstonavigate.Thefollowingfigurehighlightstheinteractiveelementsofthepowerflow
diagram.
