Cordex®CXCHPControllerSoftwareManual|4-Gettingstarted
4.3.4.7. Logs menu
Thelogssectionhasseverallog-relatedsubmenus:Events & Alerts,Battery,Power Outage,
Datalogs,andPerformance.EverylogcanbeexportedtoCSVfilesforfurtheranalysis.

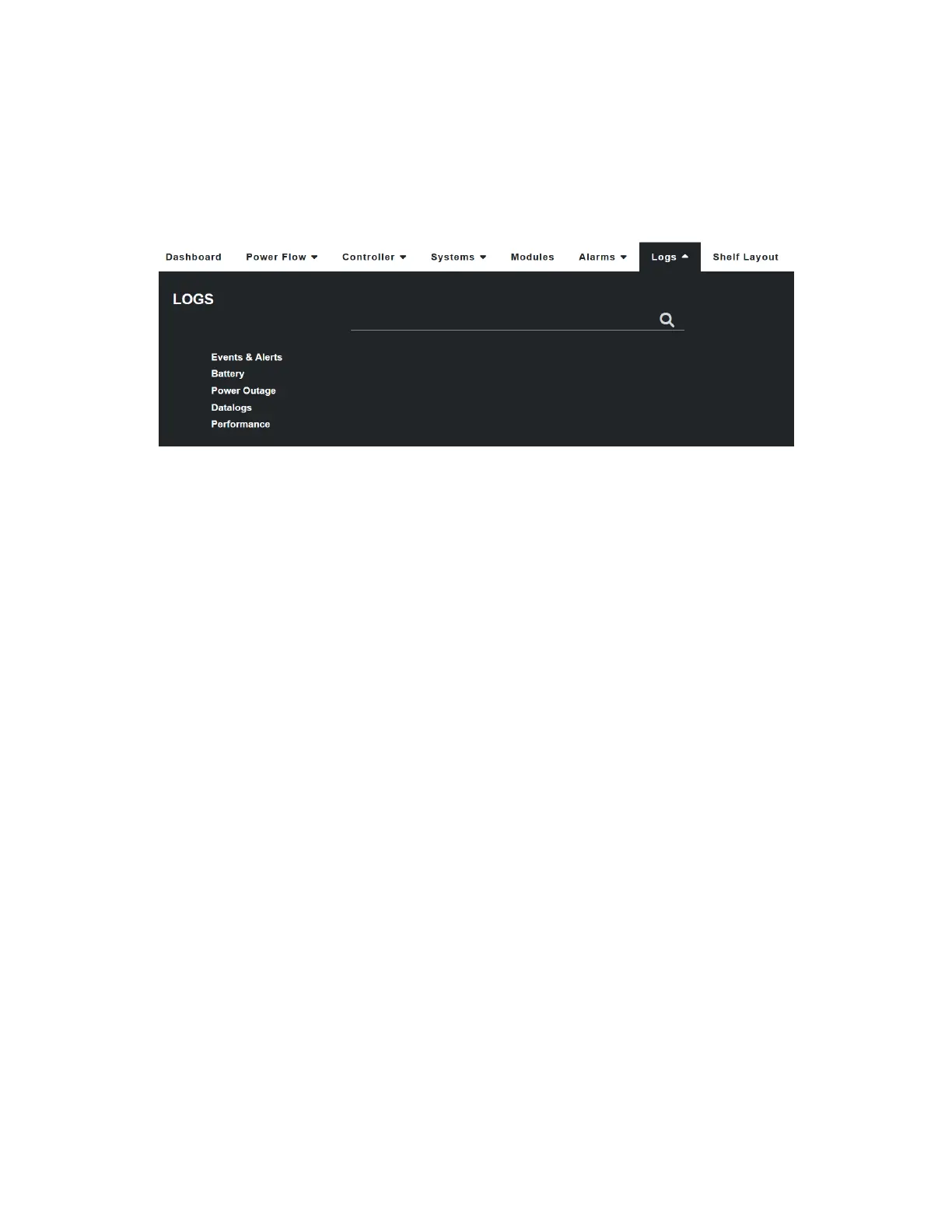

Figure 4-22 Logsmenu
Events & Alerts: TheEvents tableprovidesalistofsystemandcontrollereventsthatrecord
configurationchanges,alarmsandgeneralcontrollerandsystemoperation.TheModule Alerts table
showsthemodulealertnameandmoduleserialnumberwhenamodulereportsanalertcondition.
Battery: Thebatterylogrecordsthedurationandchangeincapacity(Ah)foreverychargeanddischarge
ofabattery.IfyouhaveBattery Runtime & Heath enabled,thelogwillalsorecordthechangeinStateof
Charge(SOC)andStateofHealth(SOH).
Power Outage: Thepoweroutagelogrecordsthestarttime,endtimeanddurationofeachpower
outage.
Datalogs: Thedatalogallowsuserstorecordmeasurementsatsetintervalsoveraperiodoftimeusing
thecontrollersensorsandcalculatedvaluesasinputs.
Performance: Theperformancelogprovidesdailyroll-upswithaminimum,maximumandaveragevalue
forkeyusagestatistics.Forpowersystems,thatusuallyincludestheinputvoltageandcurrentandthe
outputvoltageandcurrent.Forthecontroller,theCPU,andmemoryusagearetracked.
4.3.4.8. Shelf layout menu
TheShelf Layout pagedisplaysavirtualviewofyourshelflayoutsystem.Todisplaythephysical
representationofasystem,adevicemustprovidethebayID,shelfID,andslotIDinformation.
Page 56 0350058-J0 Rev AL
