EnerSys Alpha Cordex CXC HP - Quick Reference for Configuring a Line Power System; Create a Line Power System; Figure 8-3 Quick Reference for Configuring a Line Power System

Cordex®CXCHPControllerSoftwareManual|8-Linepowersystems
8.1.2. Quick reference for configuring a line power system

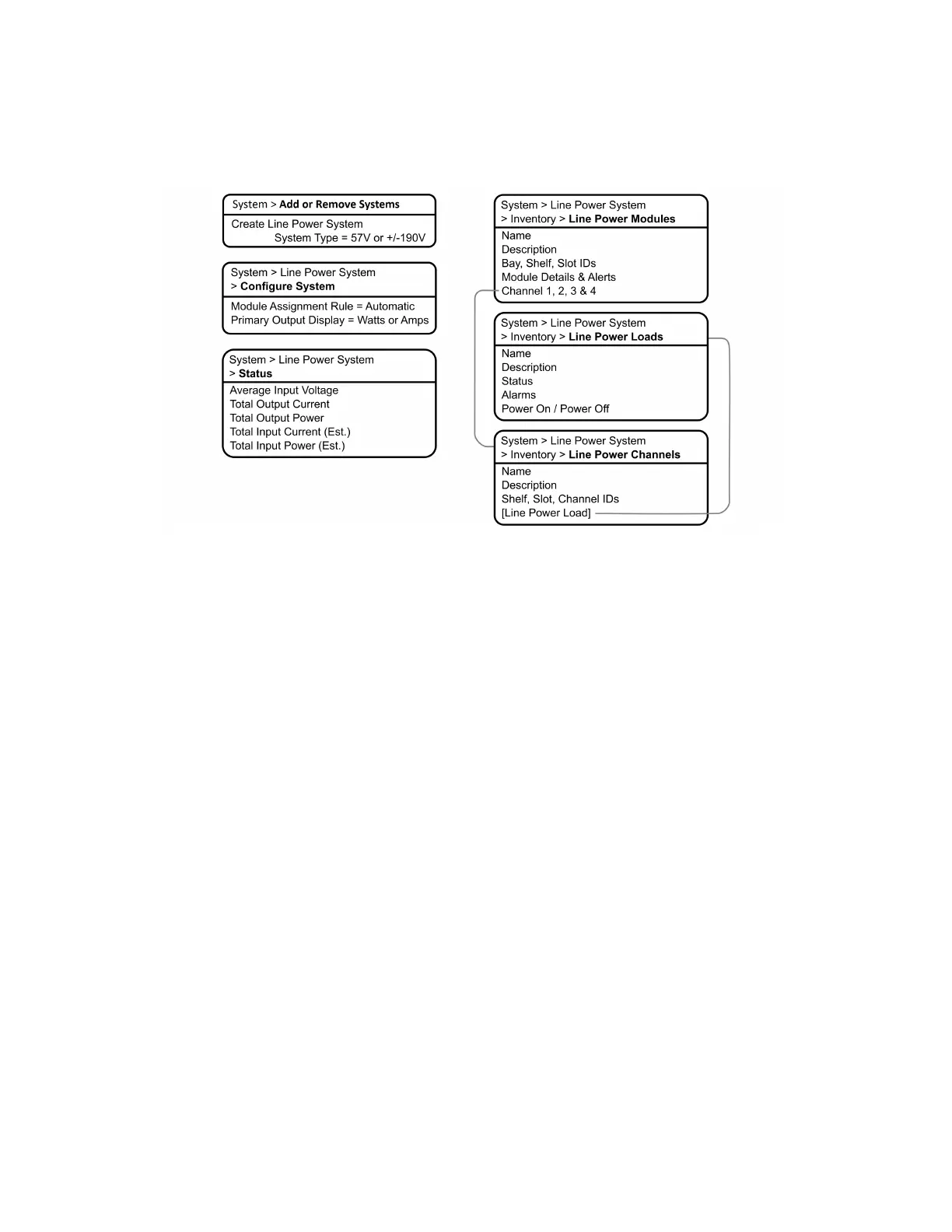

Figure 8-3 Quickreferenceforconfiguringalinepowersystem
8.2. Create a line power system
Thereisnolinepowersystemonanewcontroller.Youcancreateanewsystemfromscratchorimport
onefromaconfigurationfilethatcontainsasystemfromanothercontroller.Itispossibletocreatemore
thanonelinepowersystem.
AnewpowersystemcanbecreatedfromthecontrollerLCDorthewebinterface,viatheSystems > Add
or Remove Systems menu.Awizardstepsyouthroughtheprocesstocreatethenewsystem.Youcan
createthreetypesofsystems:
• Cordex®HPLPS36±190LinePowerSystem
• Cordex®HPLPS36±137LinePowerSystem
• Cordex®HPeLimiter+Class2DistributionSystem
Thenewsystemwillhaveareasonablesetofdefaultsandassociatedalarmswherepossible.Optional
configurablevalues,suchasName,Description,andSystemNumber,canbeusedtodescribeand
organizeyoursystem.
YoucanconfigurethealarmsassociatedwiththeLinePowersystem.Youcanenableordisablethe
alarms,changethepriority,maprelaystothealarms,andwhereapplicable,modifythethresholds.
To create a line power system:
