Cordex®CXCHPControllerSoftwareManual|4-Gettingstarted
5. Toremoveamodulefromthelayoutgrid,selectthered“X”icon.Themodulewillreturntothelist
ofavailablemodules.
6. Repeatthestepsaboveuntilyouhavemappedallyourmodules.

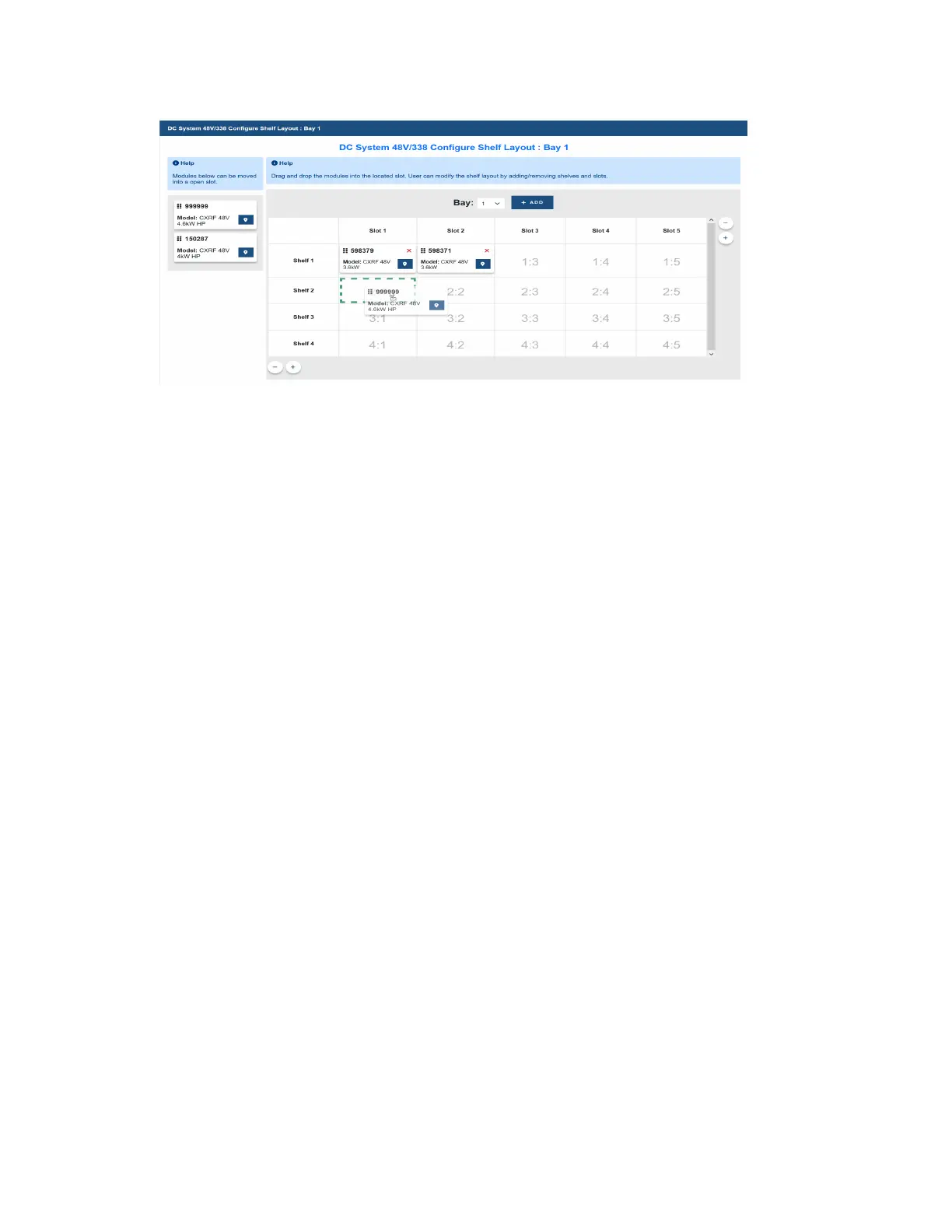

7. Afteryouhavemappedallthemodules,gotoShelf Layout onthemainmenuandyouwillseethe
completedshelflayoutgrid.
Ifyouselectamoduleinthelayout,youwillbetakentothedetailsofthemodule.Inthedetailspage,you
willseethatthebayID,shelfID,andslotIDinformationissettowhereyoudroppedthemodule.
4.3.5. Overview of the in-shelf display
In-shelfcontrollershaveasmallOLEDdisplay.Thisdisplaysshows30characterstotal(sixcharacters
wide,fivelineshigh)andthecontrollerhasthreenavigationbuttonsandoneresetbutton.
In-shelf display screens
Thein-shelfdisplayhasthreemainoperatingmodes:dashboard,menu,andscreensaver.After20
minuteswithnoactivity,thein-shelfcontrollergoesintoscreensavermodeandthedisplayshutsoff.
Fromscreensavermode,pressanyofthethreenavigationbuttonstore-activatethescreenandenter
dashboardmode.
Indashboardmode,thein-shelfdisplayshowsthekeyoperatingparametersofasystem.Forexample,
outputvoltageandloadcurrent.Ifmorethanonesystemisdefined,youcancyclebetweensystems
usingtheForward andBack buttons.Withmultiplesystems,youcanspecifyadefaultsystem,whichis
thendisplayedfirst.
Tosetadefaultsystem,fromthewebinterface,gototheController > Settings > User Interface and
selectasystemfromtheIn-Shelf Controller Display Preferences table.
In-shelf display menu
FromtheOLEDdisplaydashboard,usetheSelect buttontoenteramenu.Fromthemenu,theOLED
displayletsyouexecuteasetofcommandsmuchliketheLCDscreensonthe2RUcontroller.
