Cordex®CXCHPControllerSoftwareManual|6-Convertersystems
Quick reference for configuring a converter system

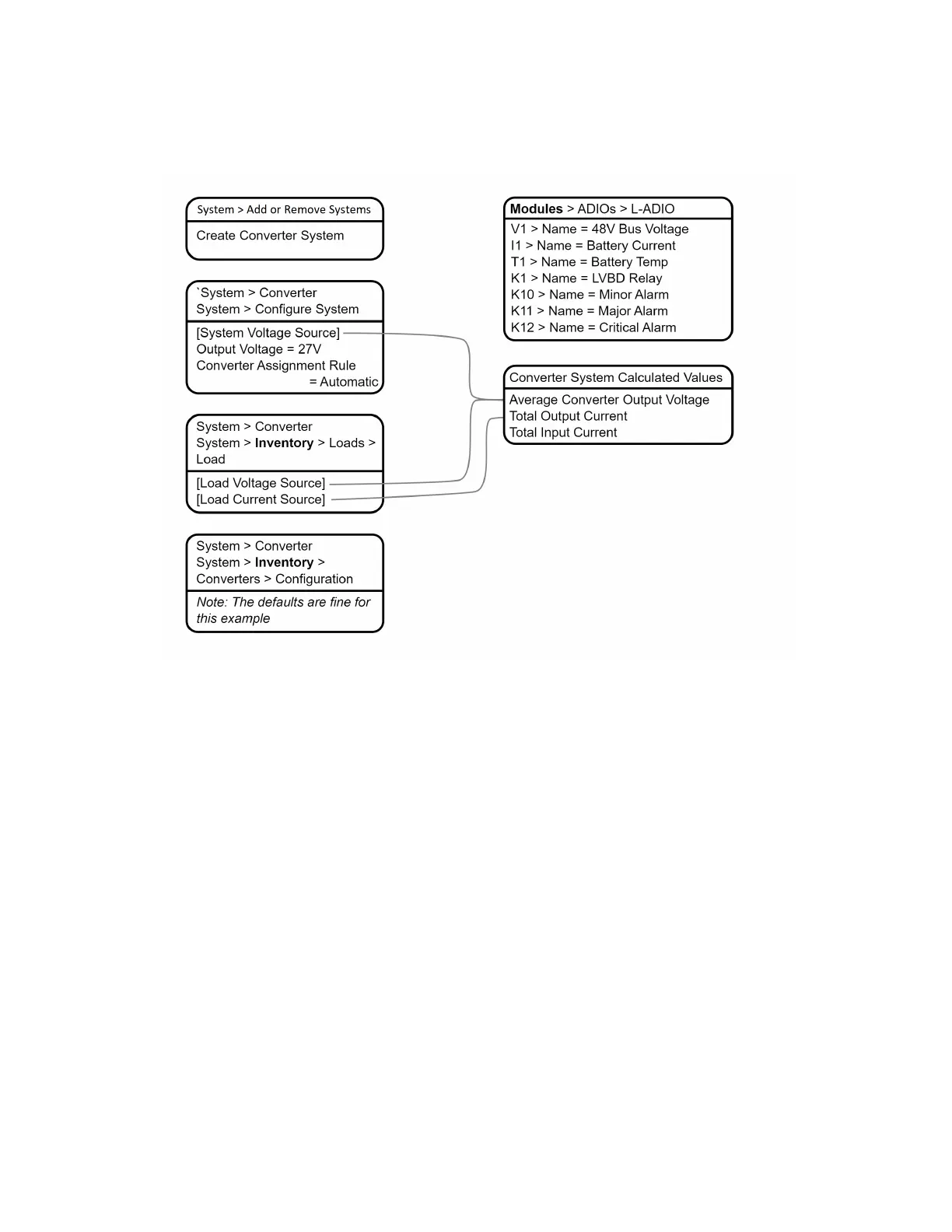

Figure 6-2 Quickreferenceforconfiguringaconvertersystem
6.2. Creating a converter system
Thereisnoconvertersystemonanewcontroller.CreatingaconvertersystemisdoneusingtheCreate
System wizard.Inthecurrentrelease,onlyasingleconvertersystemissupported,soifasystemalready
existsonthecontroller,theoptiontocreateanewconvertersystemwillnotbeavailable.
Youcanalsoimportaconfigurationfilecontainingaconvertersystemfromanothercontroller.
AnewpowersystemcanbecreatedfromthecontrollerLCDorthewebinterface,viatheSystems >
Add or Remove Systems menu.Bothhavewizardassistancetohelpstepyouthroughtheprocessto
createthenewsystem.Youcancreateeithera48V-24Vsystemora24V-48Vsystem.Whenthesystem
iscreated,anassociatedloadisalsocreated.
Theconvertersystemcreatedwillhaveareasonablesetofdefaultsandassociatedalarms.Optional
converteritems,suchasName,Description,System Number,andSerial Number canbeusedto
describeandorganizeyoursystem.
TheConverter Assignment Rule settingcontrolshownewlydiscoveredconvertersaretreated.The
twooptionsareManual andAutomatic.UsingManual,groupsallnewconvertersintoUnassigned
Modules,andthenyoucanaddthemtothesystemmanually.SelectingAutomatic addsnewconverters
tothesystemautomatically.Thisisthedefaultsetting.
0350058-J0 Rev AL Page 99
