Notice: The Call to Stop will always be evaluating the stop conditions, even when the
Generator Control is Disabled, so that the user can test the logic without starting the generator.
Furthermore, the Call to Stop will be evaluated even while the generator is stopped. If the Call
to Start is True when the generator shuts down, the generator will immediately startup again.
Therefore, care should be taken when defining start and stop conditions so that they do not
interfere with each other.
14.6. Generator state
TheGenerator State describeswhetherthegeneratorisrunningornot,andwhatactionthegenerator
controlisdoingbeforemovingtothenextstate.Exceptifthegeneratorisdisabled,suspended,or
manuallystartedorstopped,theactionsfollowthisorder:
1.
Stopped and waiting for Call to Start to be true.
2.
Start is requested. Activating control relay.
3.
Running and waiting for generator to run for minimum runtime.
4.
Running and waiting for Call to Stop to be true.
5.
Stop is requested. De-activating control relay.

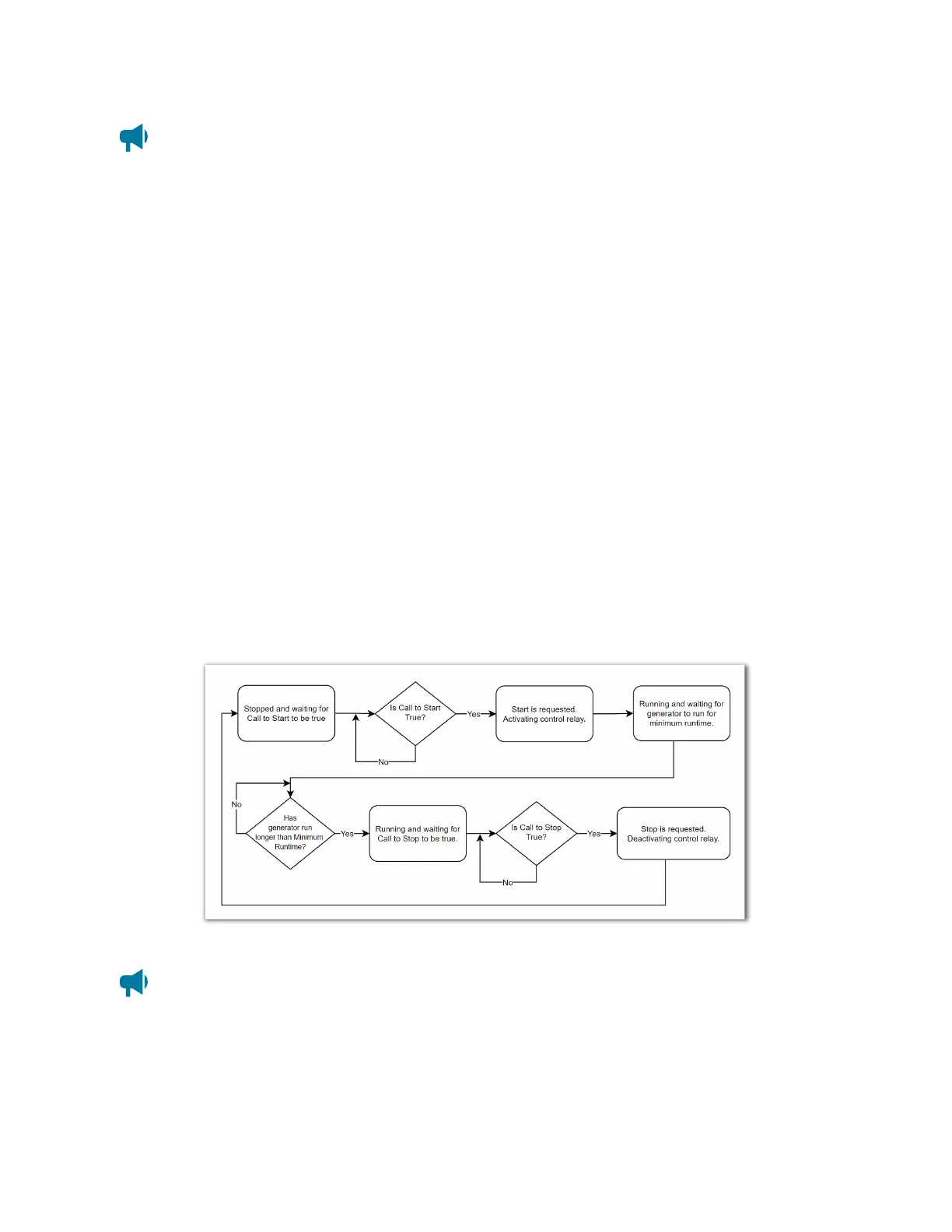

Figure 14-1 Generatorstateflowchart
Notice: The Manual Generator Start button can be pressed When the Generator State is
Stopped and waiting for Call to Start to be true. The generator cannot be manually started
when the Generator State shows disabled or suspended.
