8-62 Phaser 5500 Printer Service Manual

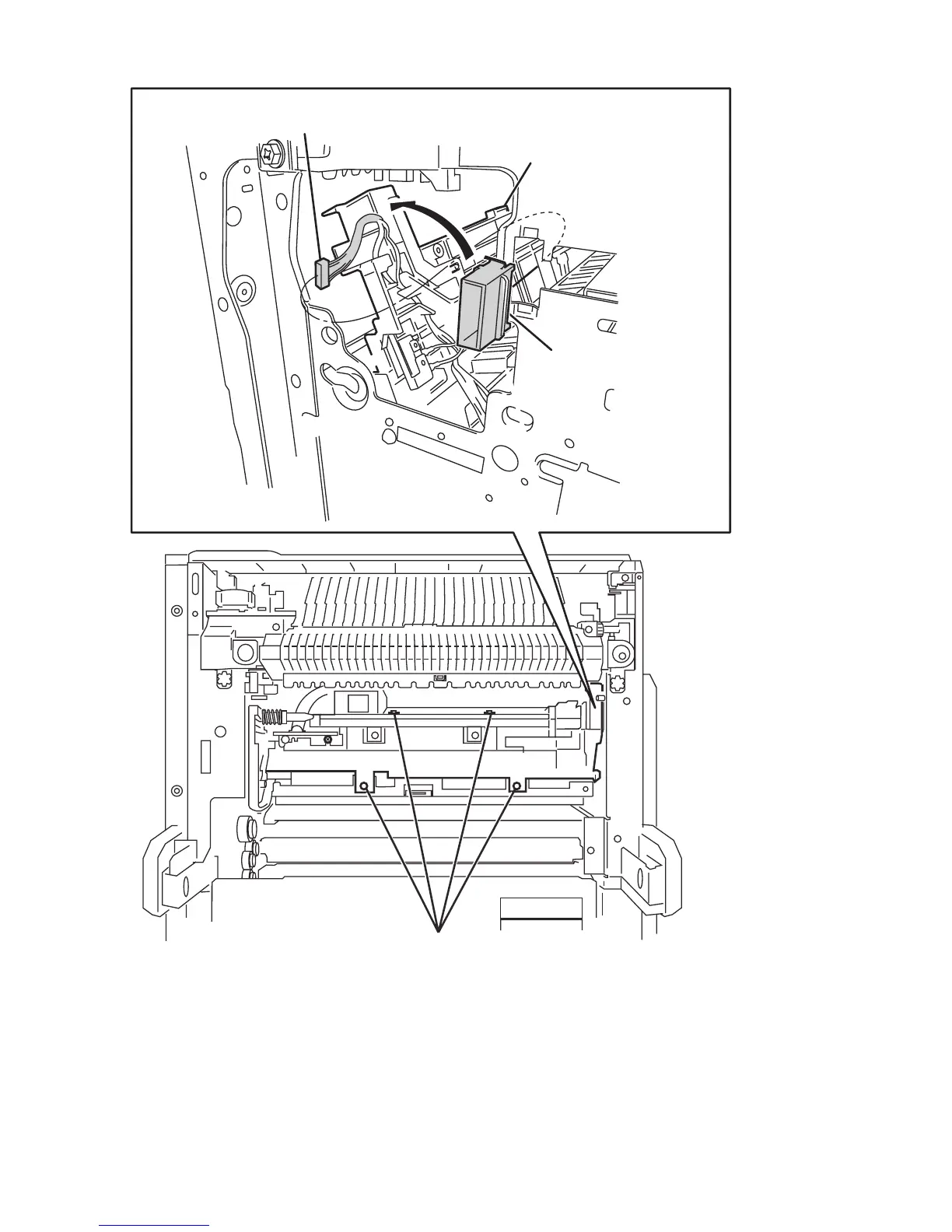

15. Disconnect the connector from the Laser C.
16. Remove the Laser C by moving it in the direction of the arrow.
17. Remove the four screws securing the SUB Guide Assembly to the frame.
Screws
Sub Guide Assembly
Connector
Junction Connector
s5500-155
