FRU Disassembly 8-63
18. Slide the SUB Guide Assembly toward the left side and disconnect the connector
from the Front Harness A.
19. Remove the two hooks securing the Contact Cover to the frame.
20. While pressing the Drum Motor gear located on the rear side of the Motor
Assembly, lift the left side of the SUB Guide Assembly upward.
21. Release the harness from the clamp on the rear side of the SUB Guide Assembly.
22. While pressing the Drum Motor gear located on the rear side of Motor Assembly,
lower the left side (left) of the SUB Guide Assembly.

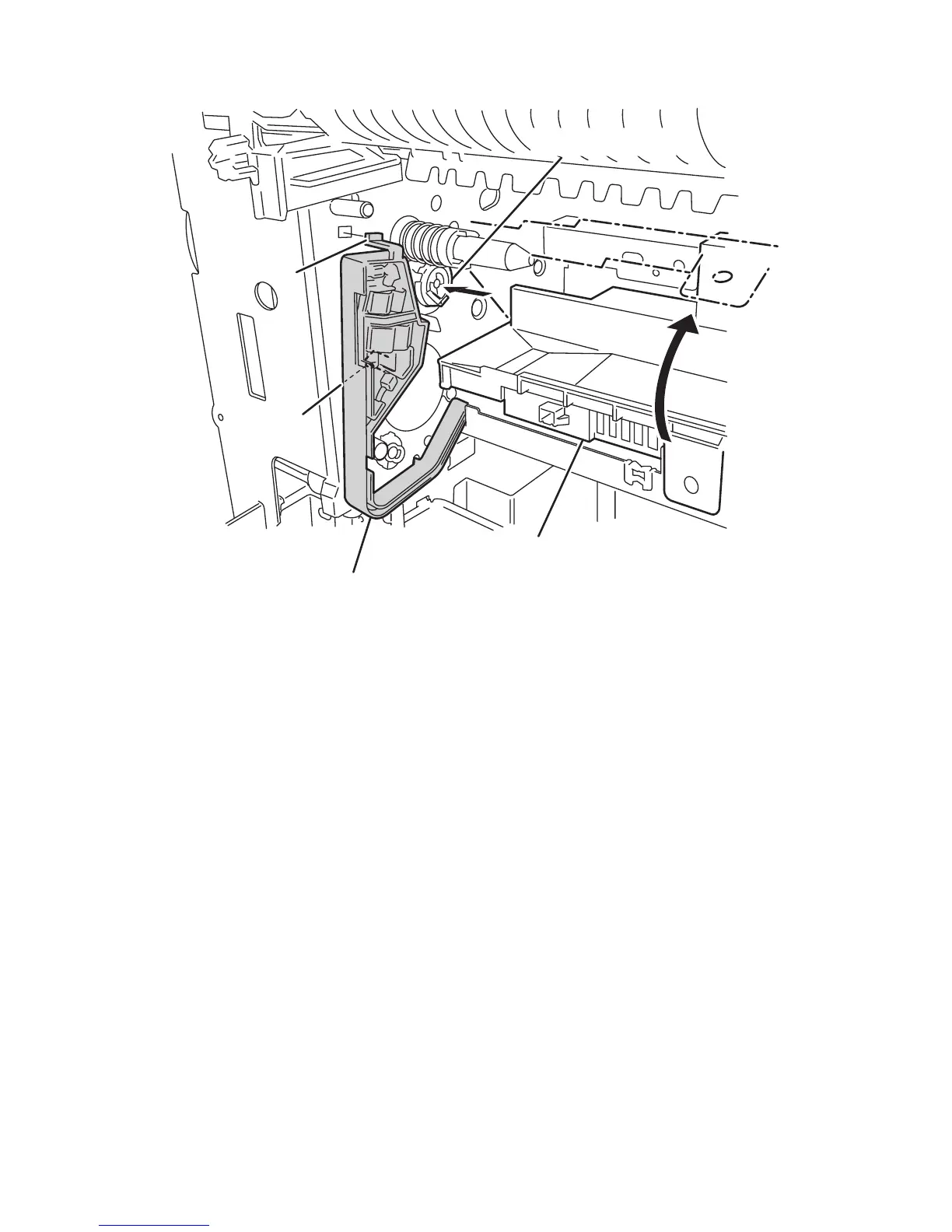

Hook
Hook
Contact Cover
Sub Guide Assembly
Drum Motor Gear
s5500-156
