9-18 Phaser 5500 Printer Service Manual

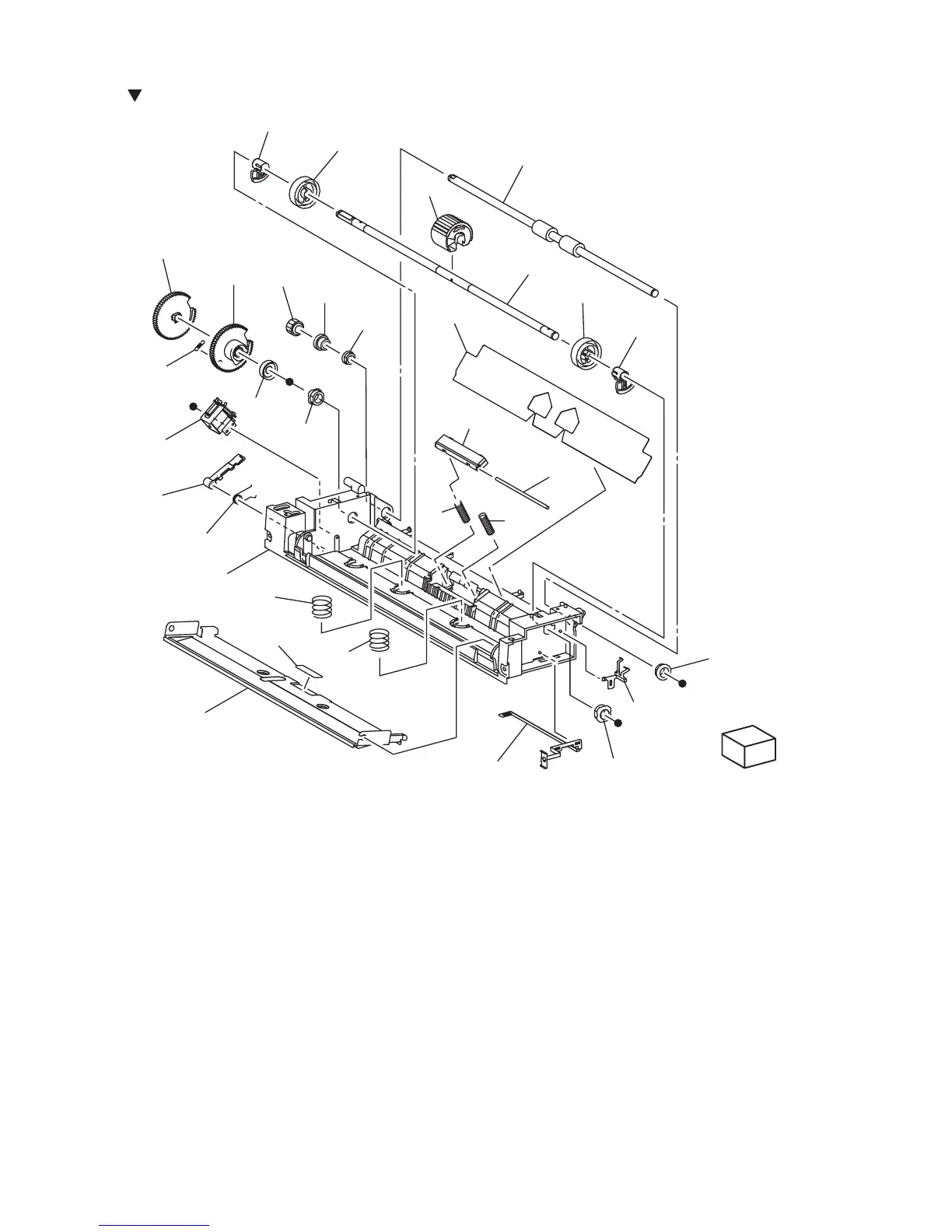

Parts List 3.2 Tray 1/MPT Lower Frame Assembly
s5500-196
Left
Front
6
22
7
4
21
14
20
16
19
18
13
3
9
26
15
8
23
12
5
24
24
21
28
9
27
2
25
25
10
11
17
19
1 (with 2-28)
E
E
E
S
