RX300 S7
Upgrade and Maintenance Manual 123
Power supply
6.2.4 Installing a PSU dummy module

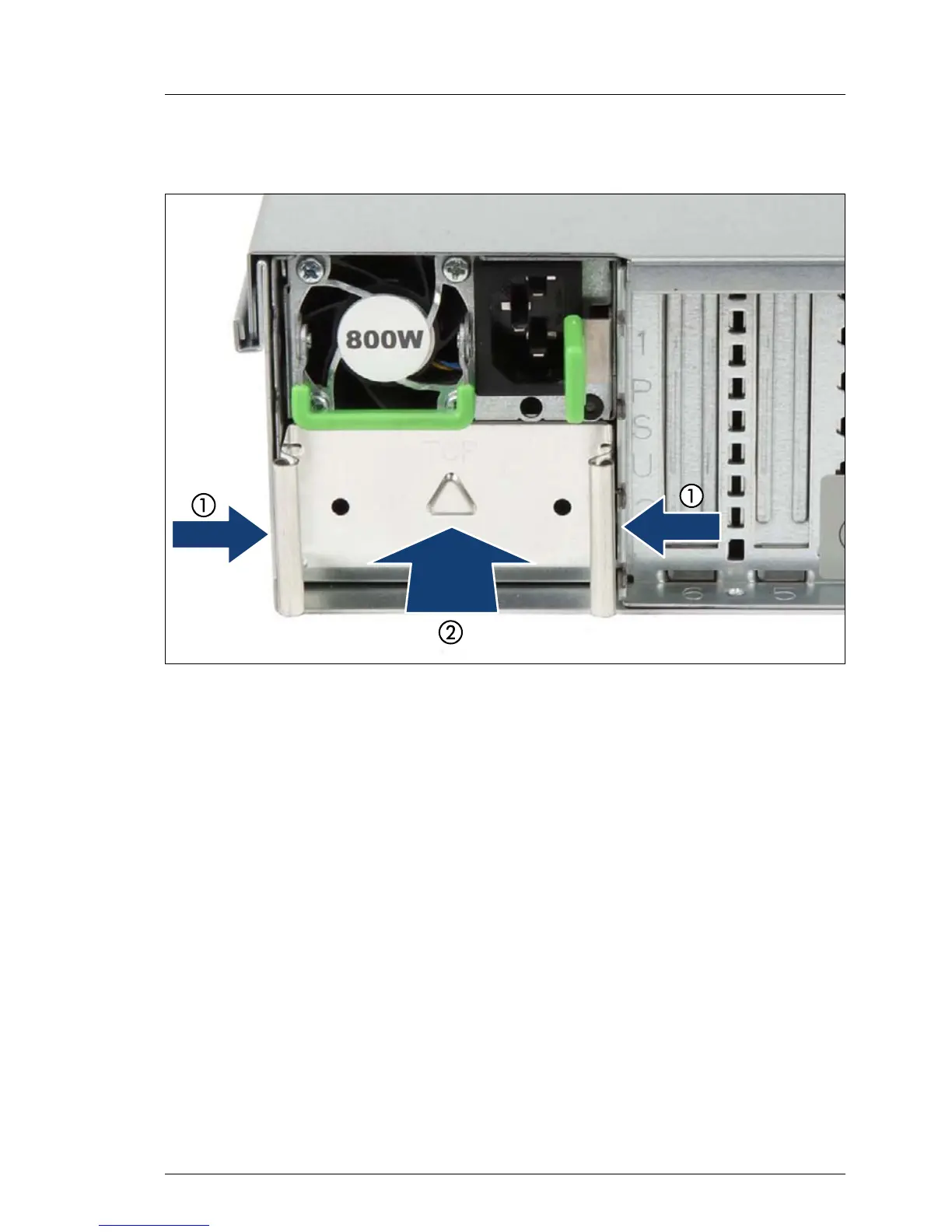

Figure 30: Installing a PSU dummy module
Ê Insert the PSU dummy module into the empty PSU slot with the impressed
arrow symbol facing up.
Ê Press in on both locking latches on the PSU dummy module (1) and carefully
insert the dummy module into its slot (2) until it locks in place.
V CAUTION!
Always install dummy modules into unused PSU slots to comply with
applicable EMC regulations and satisfy cooling requirements.
6.2.5 Concluding steps
Perform the following procedures:
Ê "Connecting the server to the power source" on page 81
Ê "Closing the rack door" on page 84
Ê "Enabling BitLocker functionality" on page 107
