504 Upgrade and Maintenance Manual
RX300 S7
Conversion configurations
– Remove the screw from the HDD cage or dummy cage, or remove the
two screws from the front panel cage, that you want to remove (see
circles).
15.2.5 Installing HDD cage and front panel cage

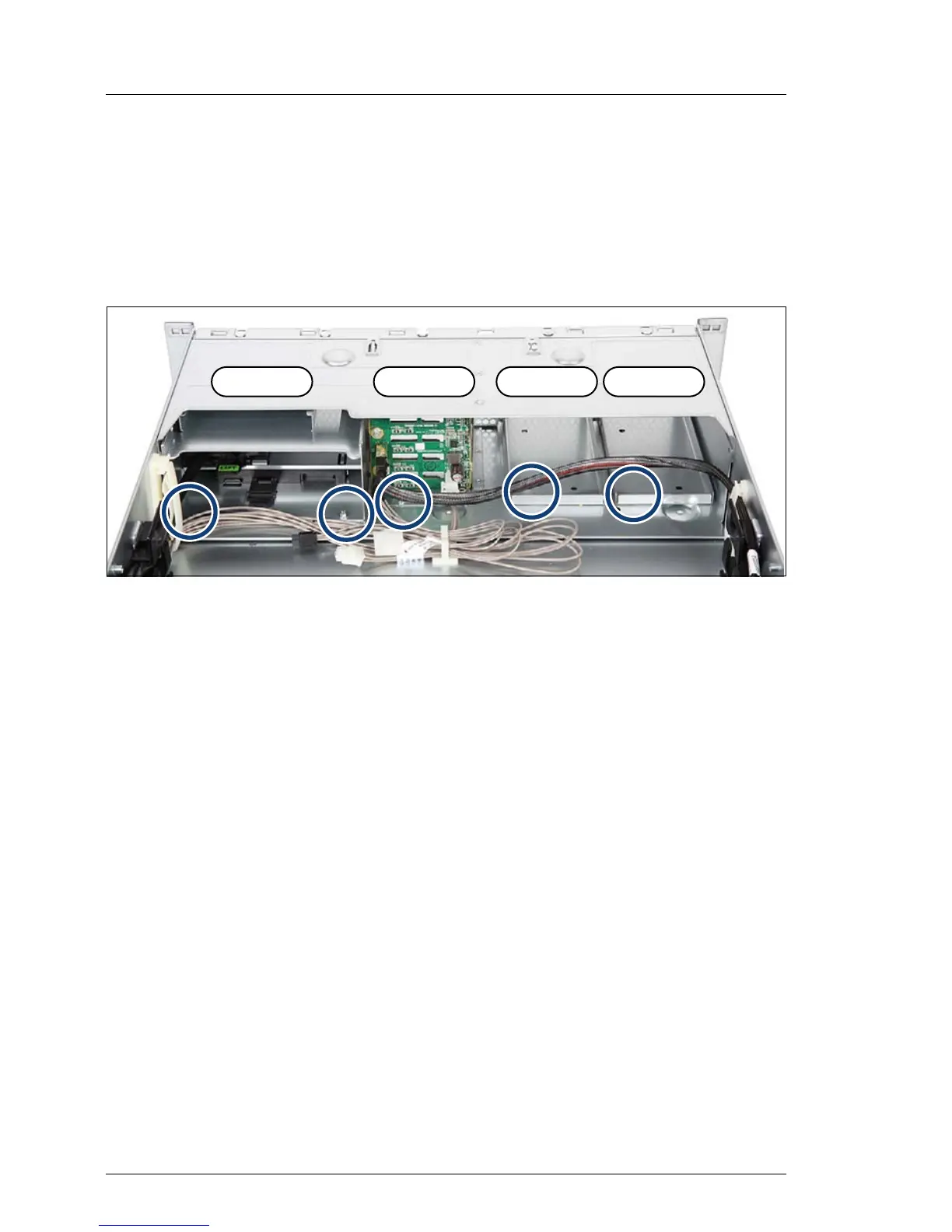

Figure 316: Installing HDD cages and front panel cage
For installing the bays:
– Insert the screw from the concerning HDD cage or the two screws from
the front panel cage (see circles).
– Connect the cables to the HDD backplane or the front panel module.
Depending on the start configuration and the end configuration you must
exchange the cables of the SAS cabling. See in the following sections
and the sction "Cabling" on page 528
bay 1 bay 3 bay 2bay 4/5
