Fujitsu PRIMERGY RX300 S7 - Removing the Front VGA Connector; Re-Installing the Front Panel Module; Concluding Steps

RX300 S7 Upgrade and Maintenance Manual 423
Front panel
13.2.2.4 Removing the front VGA connector

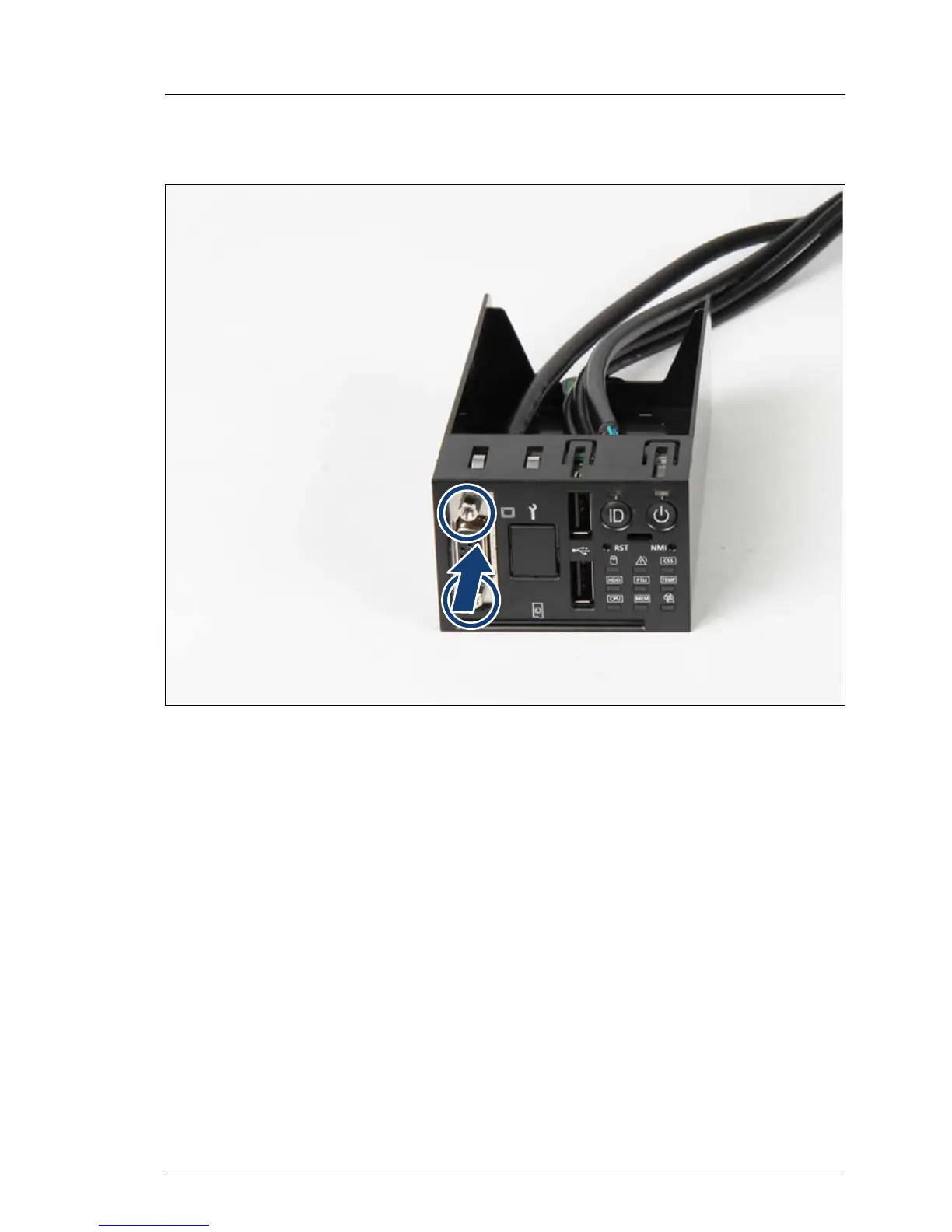

Figure 259: Removing front VGA connector from the front panel module
Ê Remove two screws.
Ê Push the VGA connector out of the front panel module.
13.2.2.5 Re-installing the front panel module
Ê "Installing the front panel module" on page 413
13.2.2.6 Concluding steps
Perform the following procedures:
Ê "Installing the fan box" on page 184
Ê "Installing the air duct" on page 74
Ê "Mounting the server cover" on page 76
