410 Upgrade and Maintenance Manual
RX300 S7
Front panel
13.1.3 Removing the front panel module

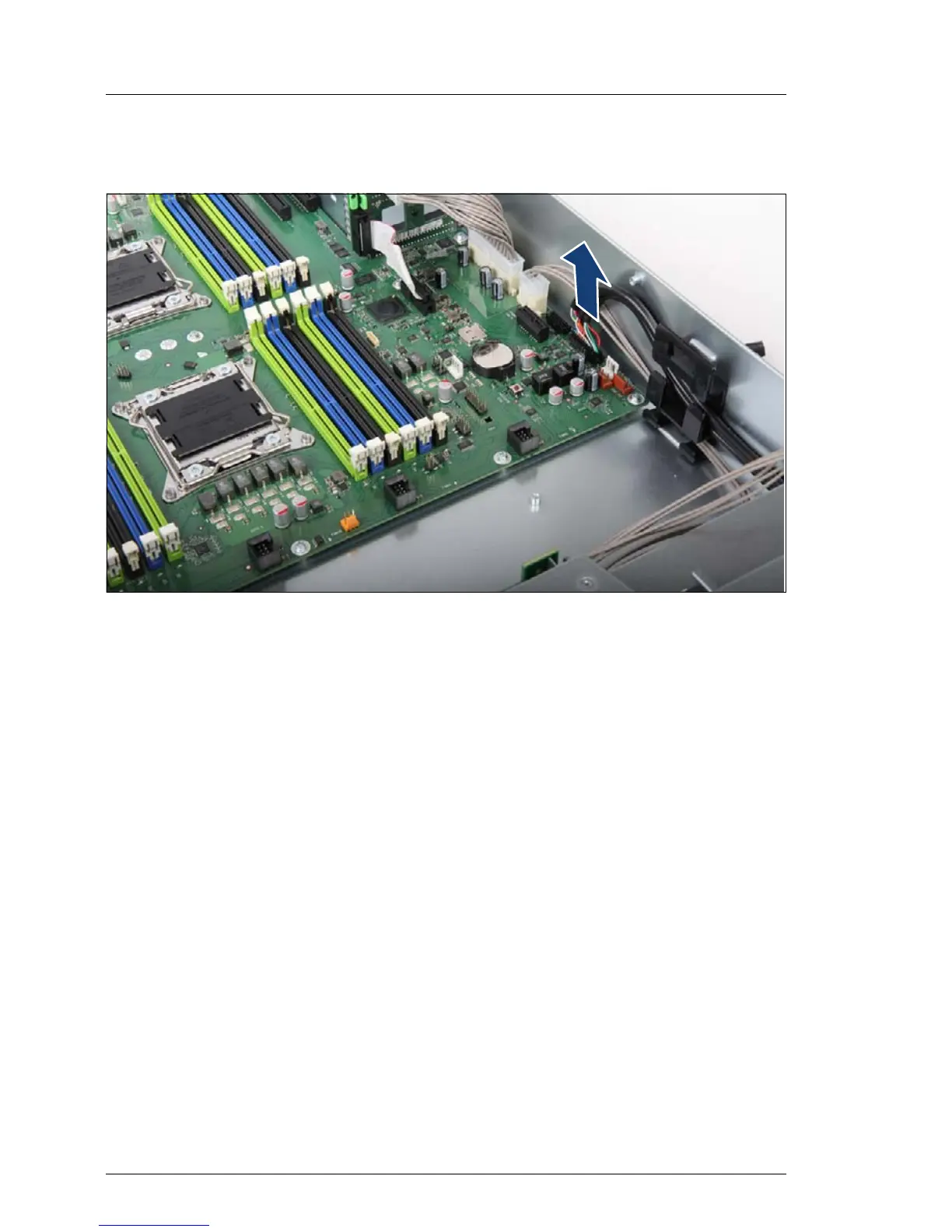

Figure 248: Disconnecting the front panel cable
Ê Disconnect the front panel cable from the system board.
Ê If applicable, disconnect the front VGA cable from the system board see
section "Removing the front VGA cable" on page 422.
