472 Upgrade and Maintenance Manual
RX300 S7
System board and components

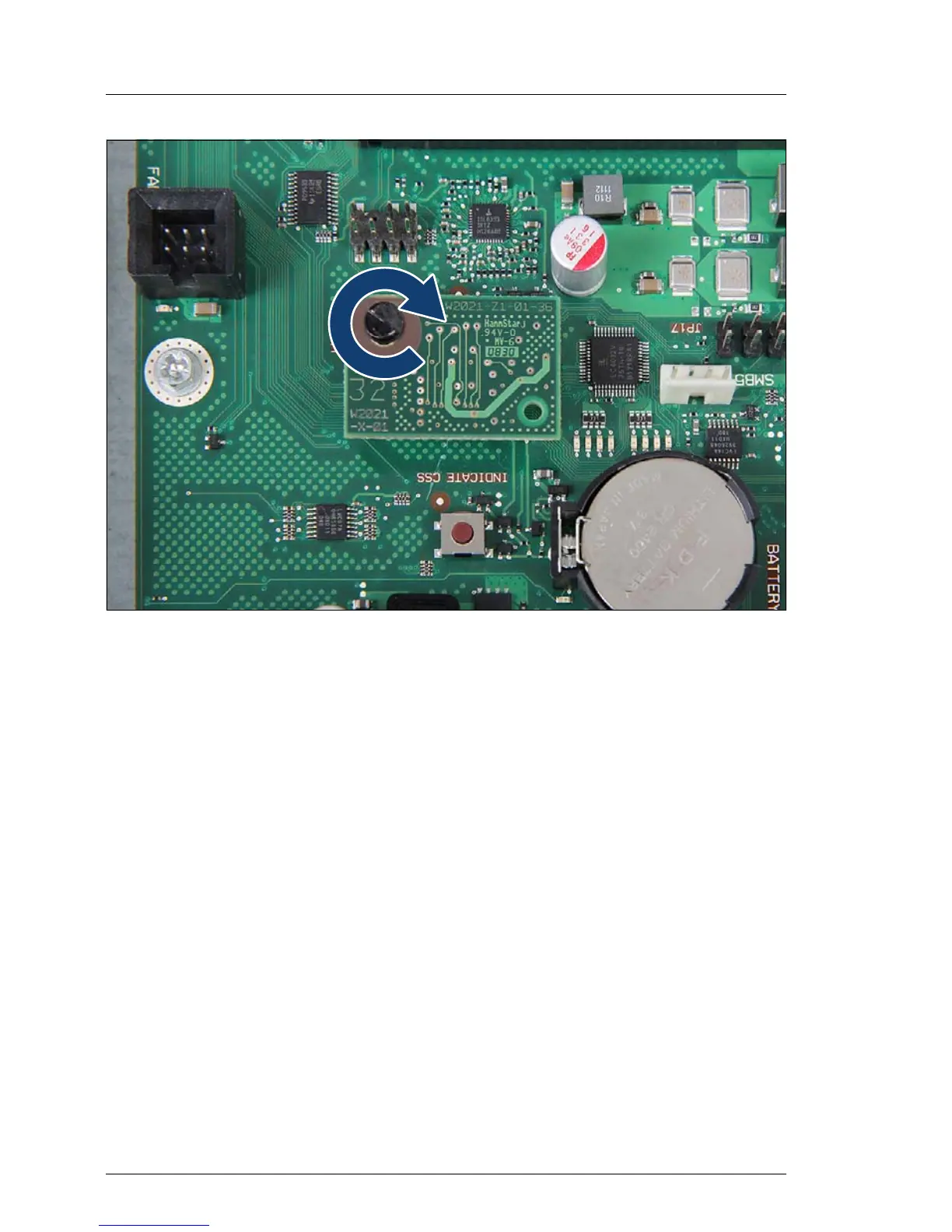

Figure 300: Securing the TPM board
Ê Secure the TPM board with the TPM screw using the TPM bit insert.
I Do not fasten the screw too firmly. Stop as soon as the head of the
screw lightly touches the TPM board.
14.3.1.4 Concluding steps
Perform the following procedures:
Ê "Installing the air duct" on page 74
Ê "Mounting the server cover" on page 76
Ê "Sliding the server into the rack" on page 80
If the server has been completely removed from the rack for maintenance
purposes, reinstall and secure it in the rack as described in section
"Mounting the server in the rack" on page 77.
Ê "Connecting the server to the power source" on page 81
Ê "Closing the rack door" on page 84
Ê Enable TPM in the system board BIOS. Proceed as follows:
