420 Upgrade and Maintenance Manual
RX300 S7
Front panel
13.2.1.6 Re-installing the front panel module
Ê "Installing the front panel module" on page 413

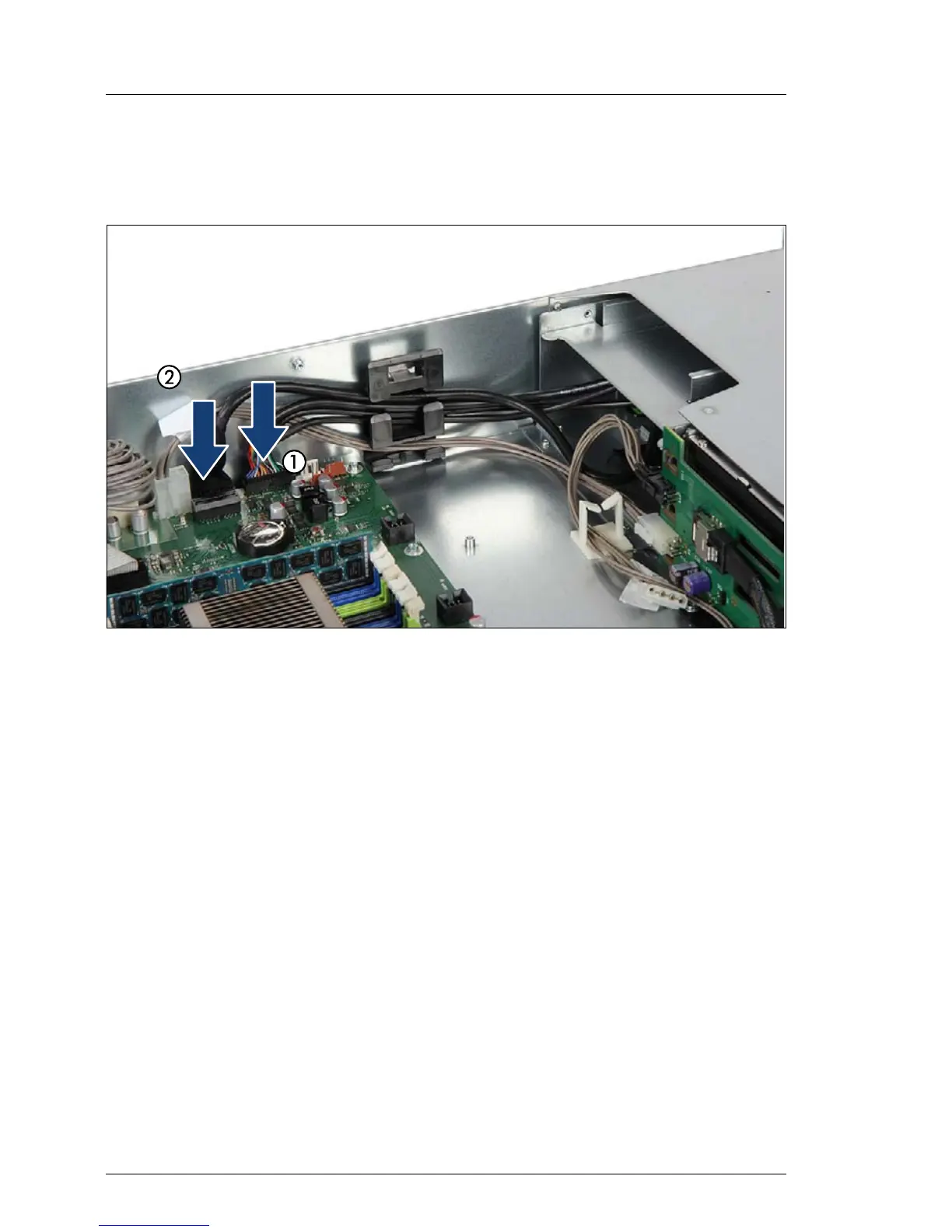

Figure 257: Connecting front panel cables
Ê Run the front panel cable through the cable clamps as shown.
Ê Connect the front panel cable to the system board (1).
Ê Connect the front VGA cable to the system board (2).
Ê If applicable, connect the front LAN connector to the system board.
13.2.1.7 Concluding steps
Perform the following procedures:
Ê "Installing the fan box" on page 184
Ê "Installing the air duct" on page 74
Ê "Mounting the server cover" on page 76
Ê "Sliding the server into the rack" on page 80
If the server has been completely removed from the rack for maintenance
purposes, reinstall and secure it in the rack as described in section
"Mounting the server in the rack" on page 77.
