Fujitsu PRIMERGY RX300 S7 - Installing the TPM Board

RX300 S7 Upgrade and Maintenance Manual 469
System board and components
Ê "Removing the server cover" on page 72
Ê "Removing the air duct" on page 73
14.3.1.3 Installing the TPM board

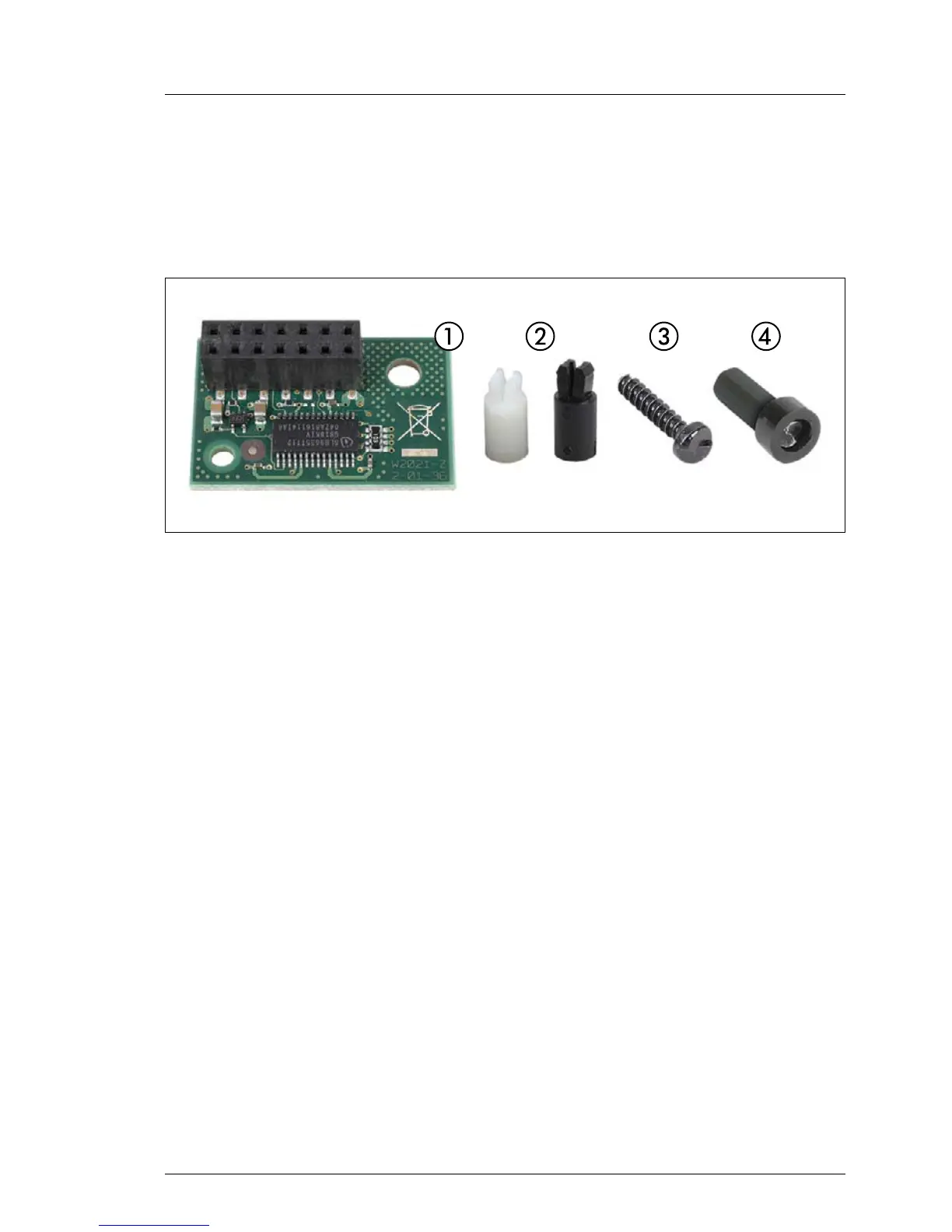

Figure 295: TPM kit
TPM kit (S26361-F3299-E2):
1 TPM module
S26361-D2727-A10
2 TPM spacers
I Use the white TPM spacer (A3C40106008).
The black TPM spacer is not used in this server.
3 TPM special screw
C26192-Y10-C176
4 TPM bit insert for TPM special screw
