Fujitsu PRIMERGY RX300 S7 - Installing the BBU Holder Onto the Air Duct

230 Upgrade and Maintenance Manual RX300 S7
Expansion cards and backup units

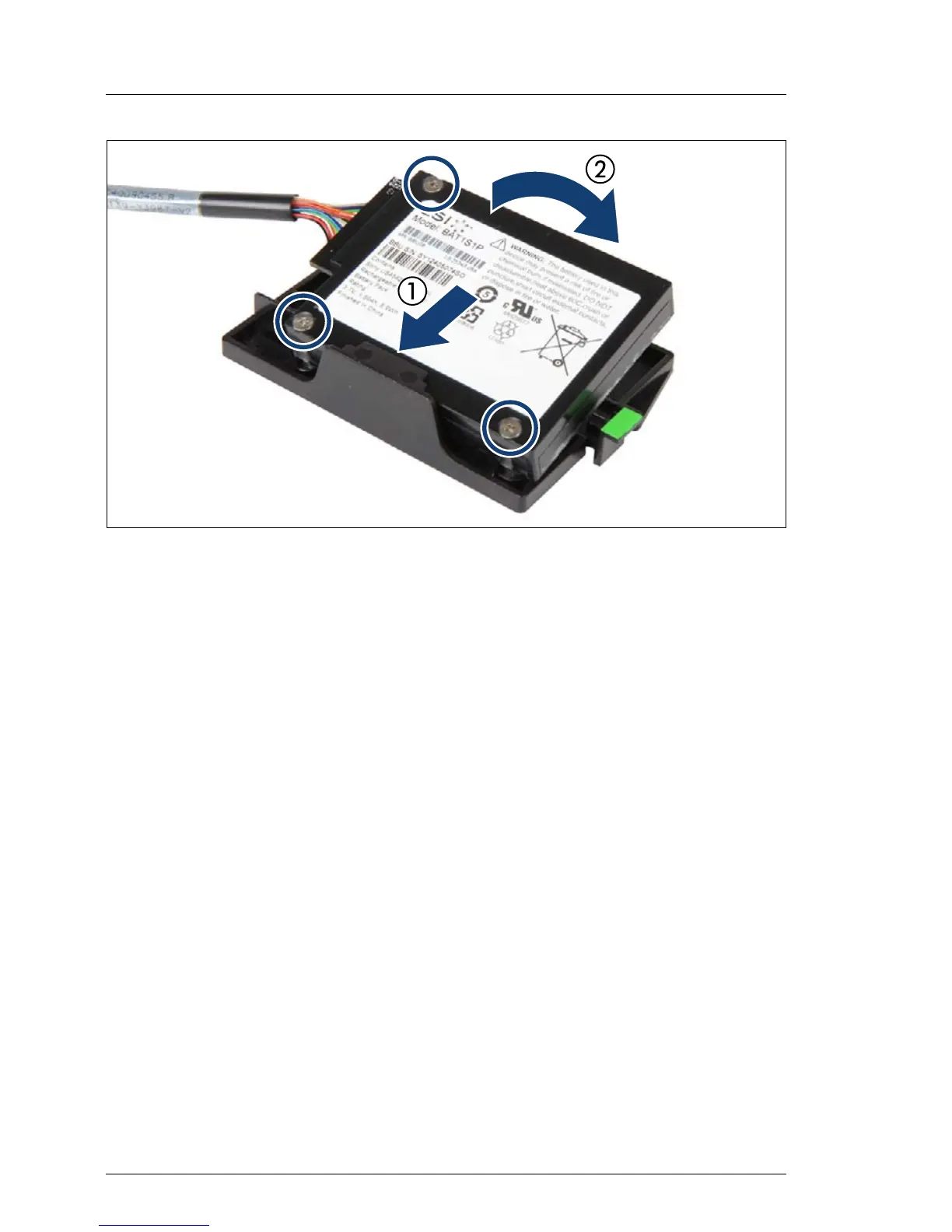

Figure 100: Installing the BBU in the BBU holder (example B)
Ê At a slight angle, fit the BBU under the right retaining bracket on the BBU
holder (1).
Ê Fold down the BBU until it locks in place (2).
9.5.1.4 Installing the BBU holder onto the air duct
I There are different BBUs available. The position of the BBU cable on the
BBU can differ from the following example.
