RX300 S7 Upgrade and Maintenance Manual 363
Accessible drives
12.8.5.2 Connecting the RDX/DAT drive to the USB 3.0 interface card
Figure 211: Connecting the USB cable to the USB 3.0 interface card

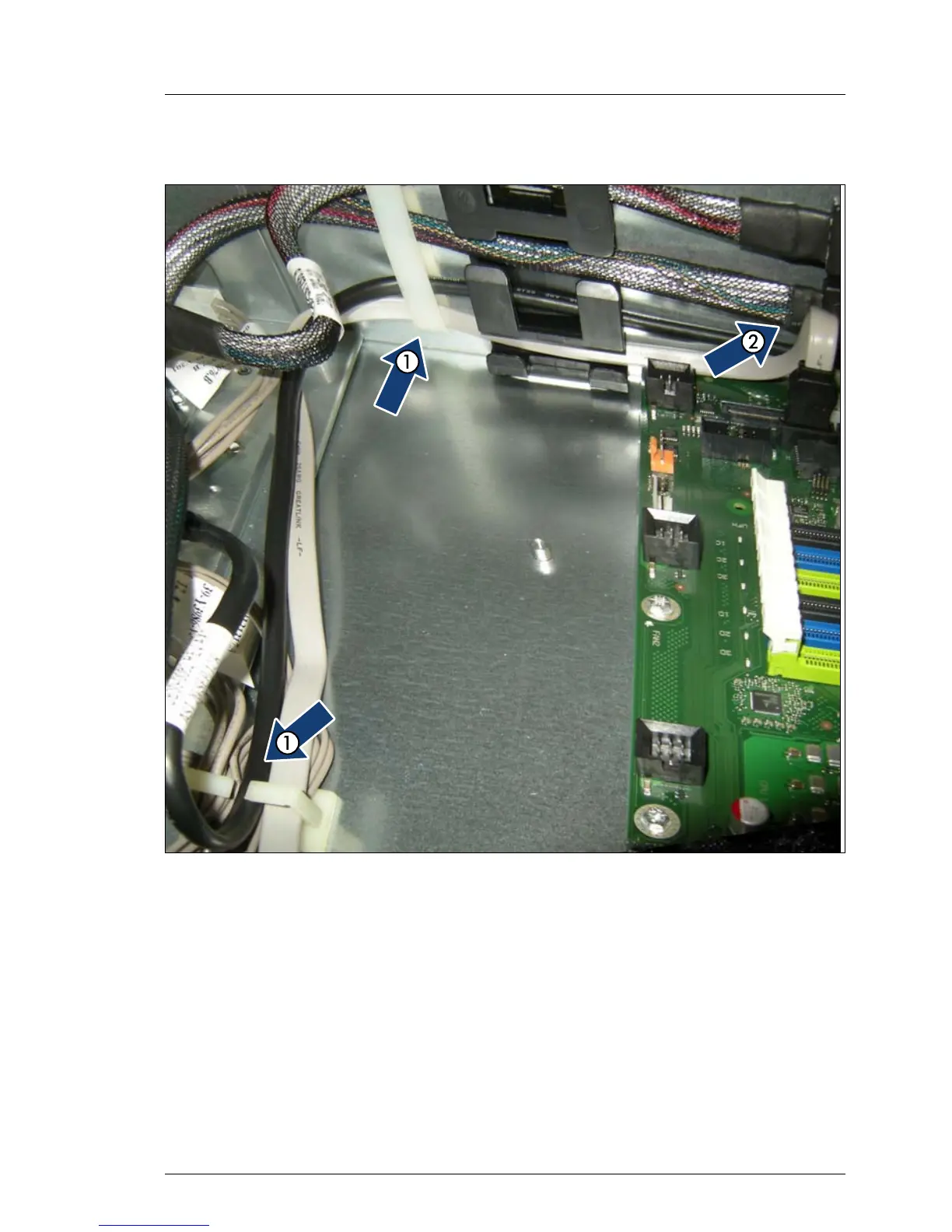

Ê Route the cable C17 as shown in the two cable clamps (1) and behind the
SAS RAID controller (2).
