Fujitsu PRIMERGY RX300 S7 - Installing the 3.5-Inch HDD SAS Backplane

162 Upgrade and Maintenance Manual RX300 S7
Hard disk drives / solid state drives
7.4.1.4 Installing the 3.5-inch HDD SAS backplane

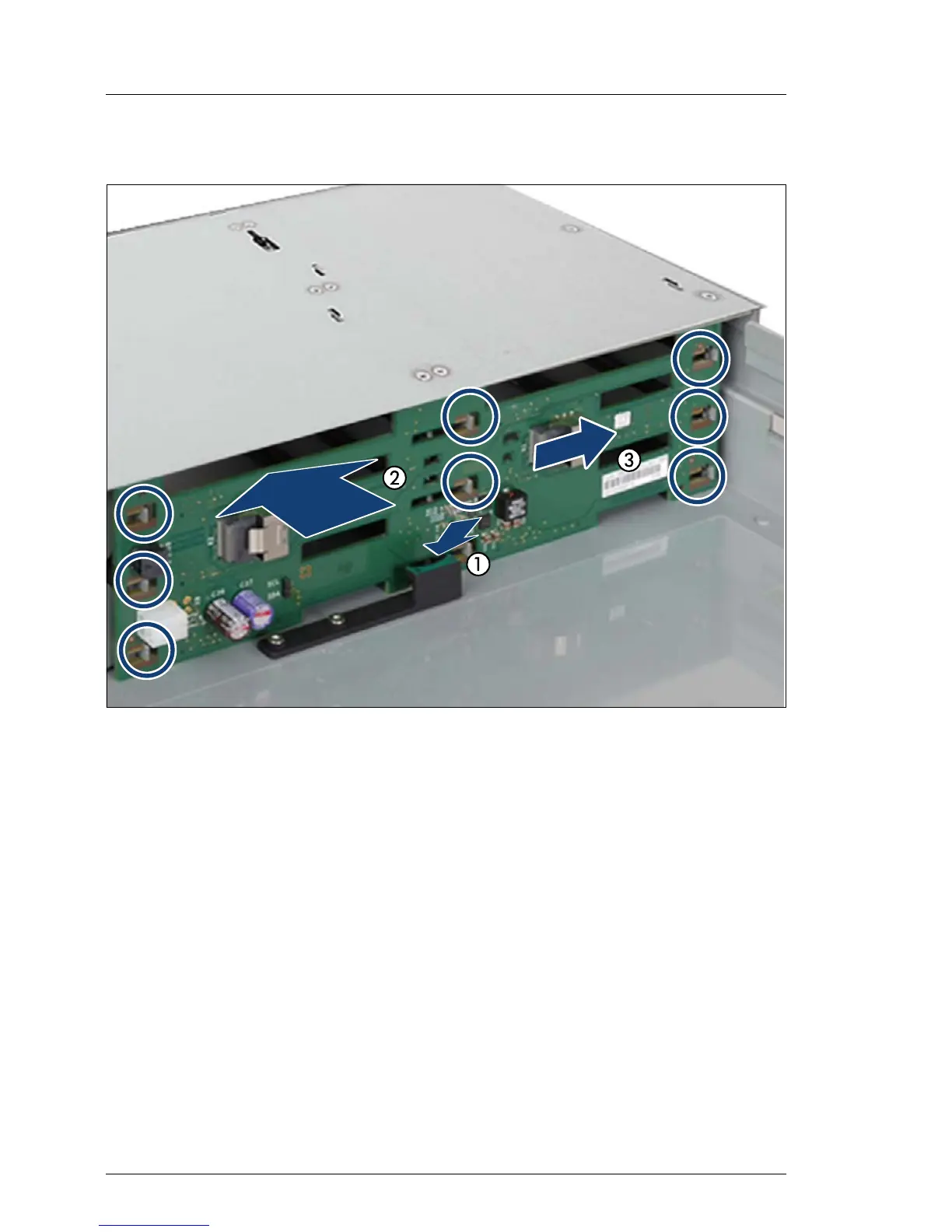

Figure 62: Installing the 3.5-inch HDD SAS backplane (A)
Ê At a slight angle insert the 3.5-inch HDD SAS backplane into the guide (1).
Ê Fit the 3.5-inch HDD SAS backplane on the eight hooks (circles) (2).
Ê Push the3.5-inch HDD SAS backplane in the direction of the arrow (3).
I Ensure that the eight hooks project through the recesses in the
backplane.
