Fujitsu PRIMERGY RX300 S7 - Removing HDD Cages and Front Panel Cage

RX300 S7 Upgrade and Maintenance Manual 503
Conversion configurations
15.2.4 Removing HDD cages and front panel cage

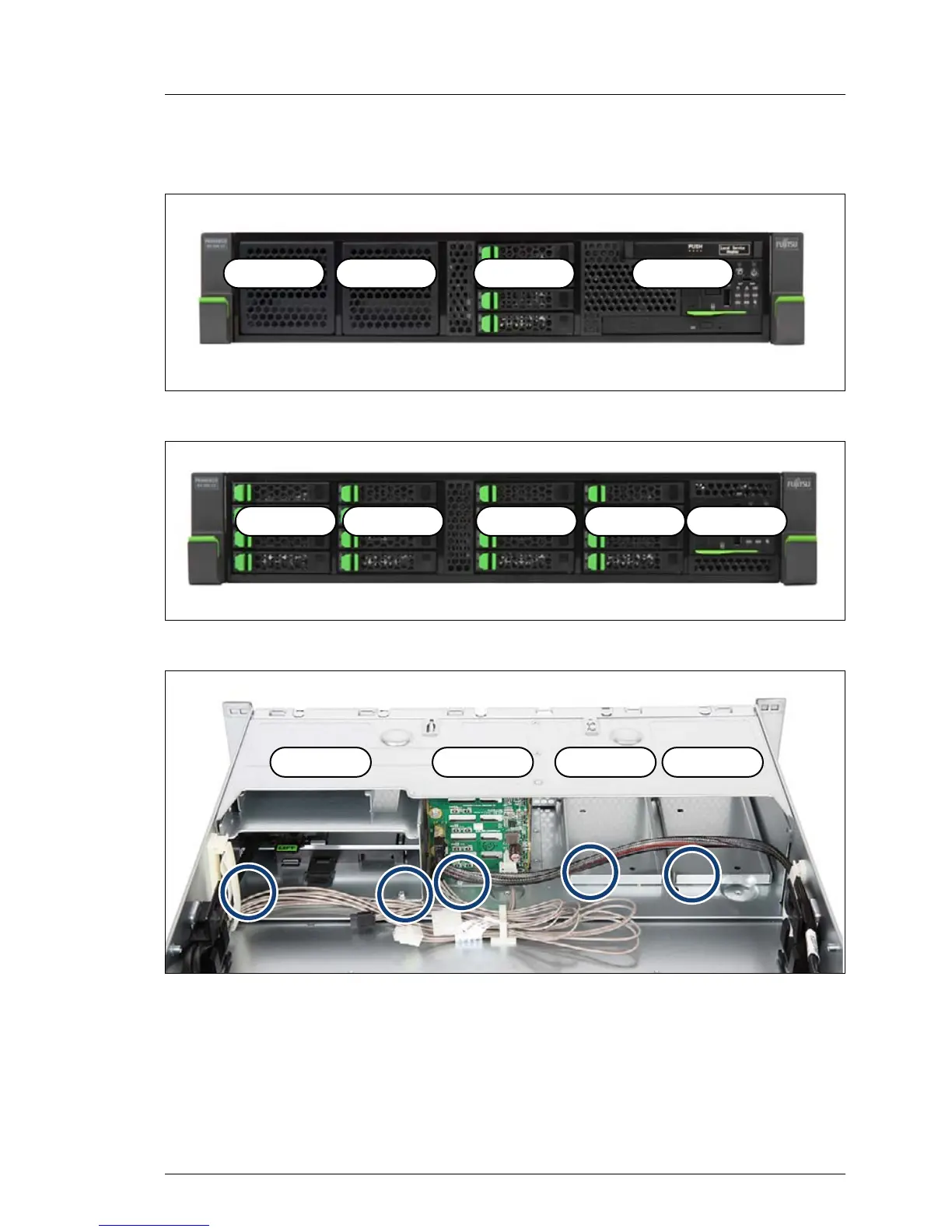

Figure 313: Bays to install HDD cages and the large frontpanel
Figure 314: Bays to install HDD cages and the small frontpanel
Figure 315: Removing HDD cages and front panel cage
For removing the bays:
– Remove the cables from the HDD backplane or the front panel module,
that you want to remove.
bay 1 bay 3 bay 2 bay 4/5
bay 1
bay 3
bay 2
bay 4
bay 5
bay 1 bay 3 bay 2bay 4/5
