Fujitsu PRIMERGY RX300 S7 - Removing the UFM; Re-Installing the UFM

464 Upgrade and Maintenance Manual RX300 S7
System board and components
14.2.3.3 Removing the UFM
Ê "Removing the UFM board" on page 460
Ê The UFM spacer remains on the system board.
14.2.3.4 Re-installing the UFM

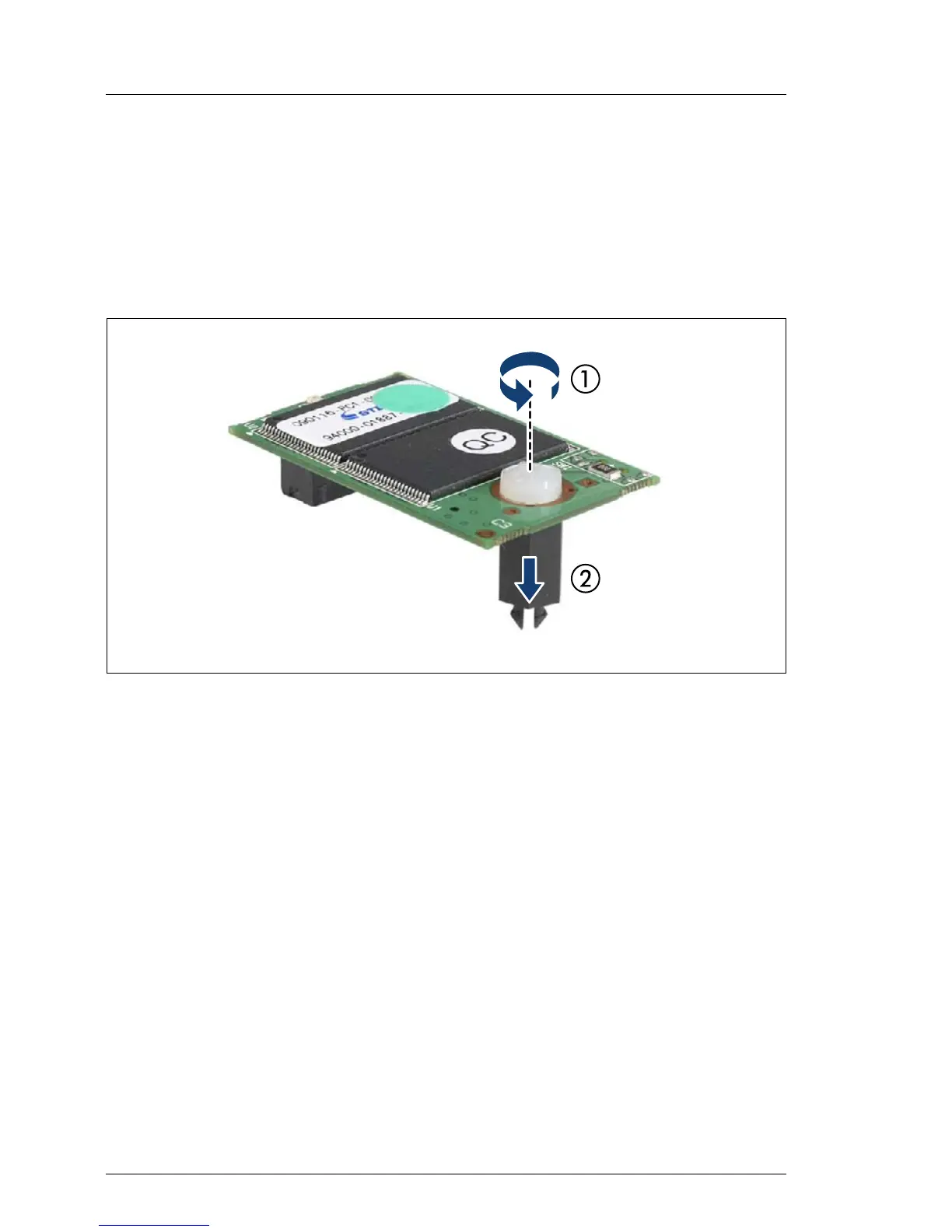

Figure 291: Preparing the new UFM board
Ê Remove the nylon screw from the new UFM board (1).
Ê Remove the UFM spacer (2).
