Fujitsu PRIMERGY RX300 S7 - Installing the Onboard SAS Enabling Key

RX300 S7 Upgrade and Maintenance Manual 483
System board and components
14.4.1.3 Installing the onboard SAS enabling key

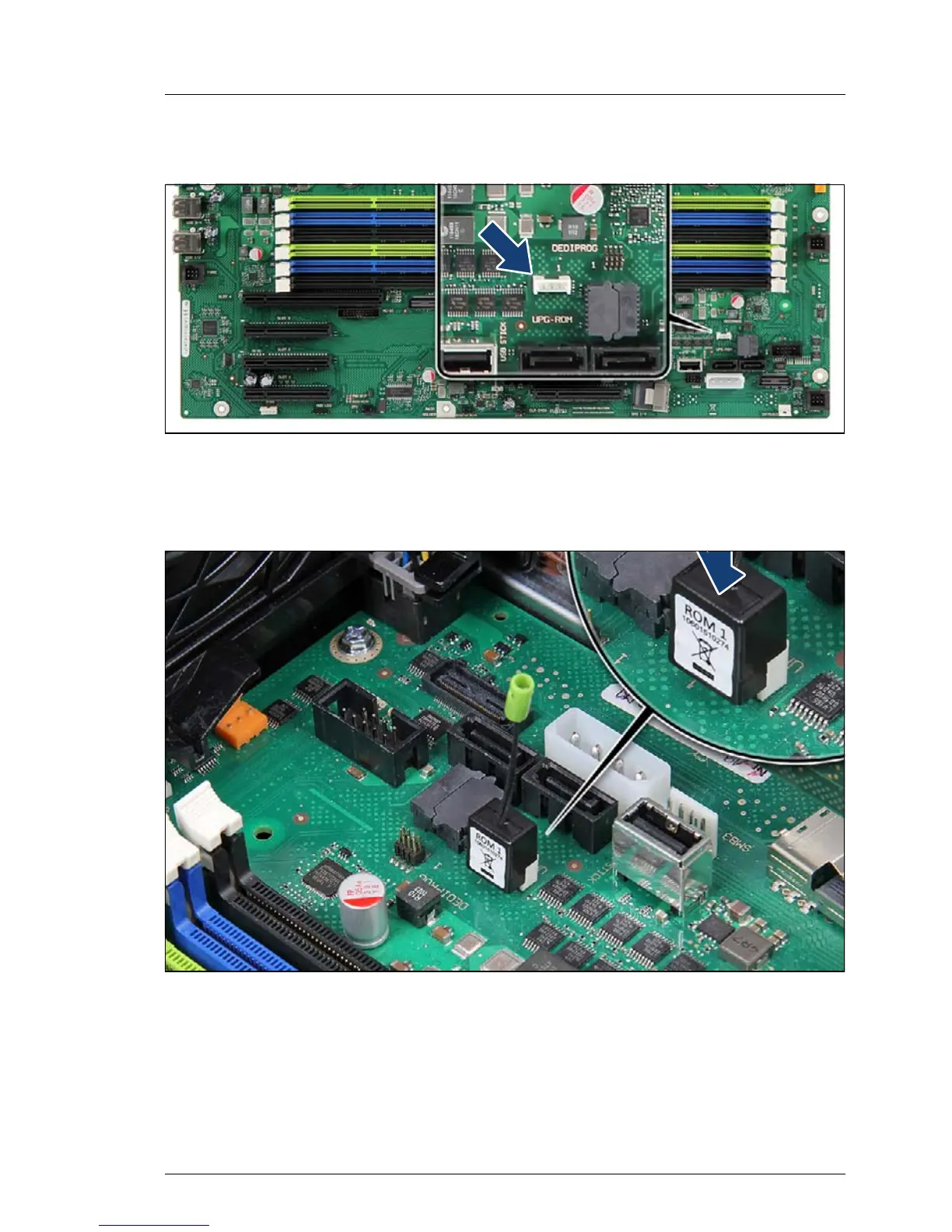

Figure 304: Onboard SAS enabling key mounting location
Ê Locate the onboard SAS enabling key mounting location on the system
board.
Figure 305: Connecting onboard SAS enabling key
Ê Connect the onboard SAS enabling key to system board connector SKU.
