RX300 S7
Upgrade and Maintenance Manual 183
System fan
8.2.4 Removing the fan box

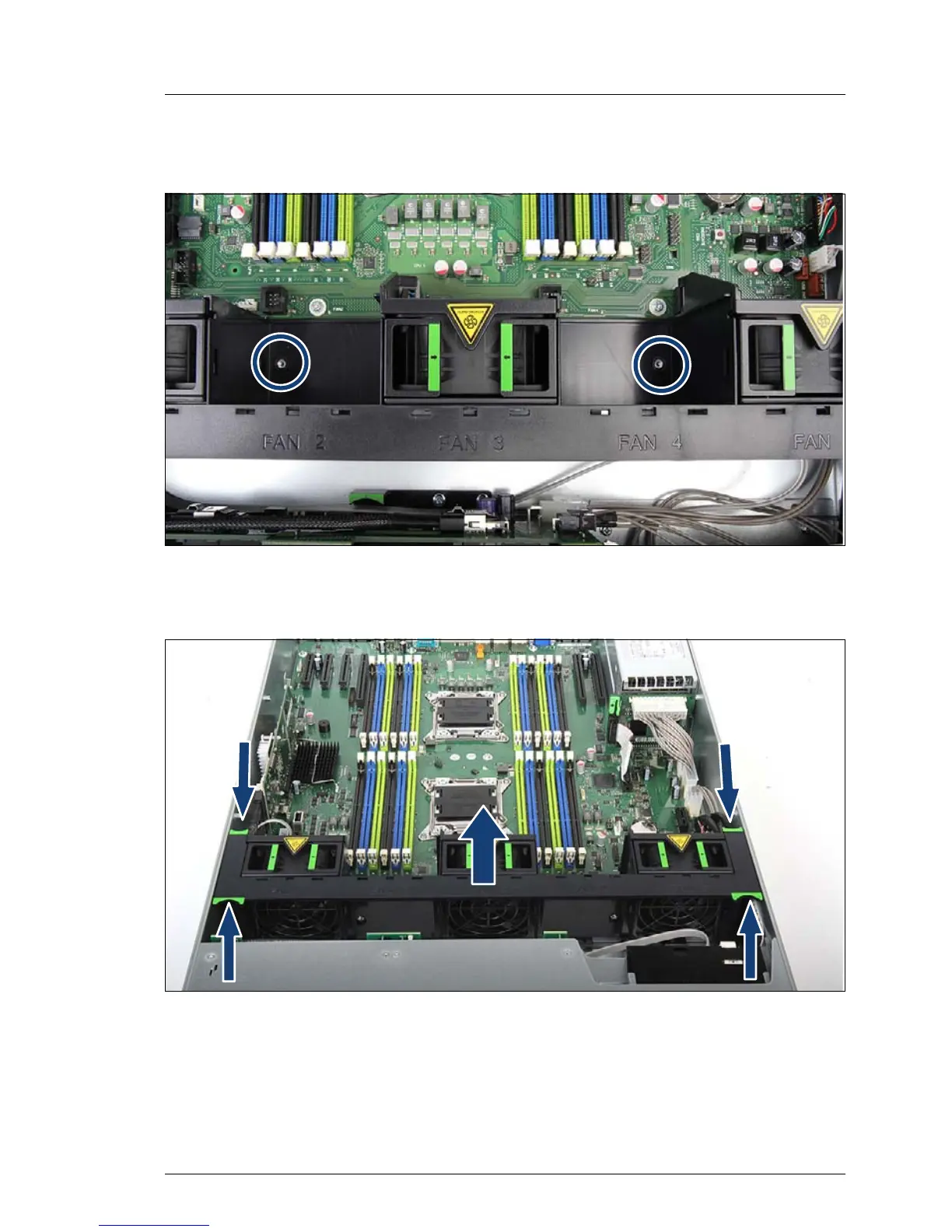

Figure 77: Removing the fan box
Ê Remove the two screws.
Figure 78: Removing the fan box
Ê Take the fan box by the green touch points and lift the fan box out of the
chassis.
