394 Upgrade and Maintenance Manual
RX300 S7
Accessible drives
LTO3 drive

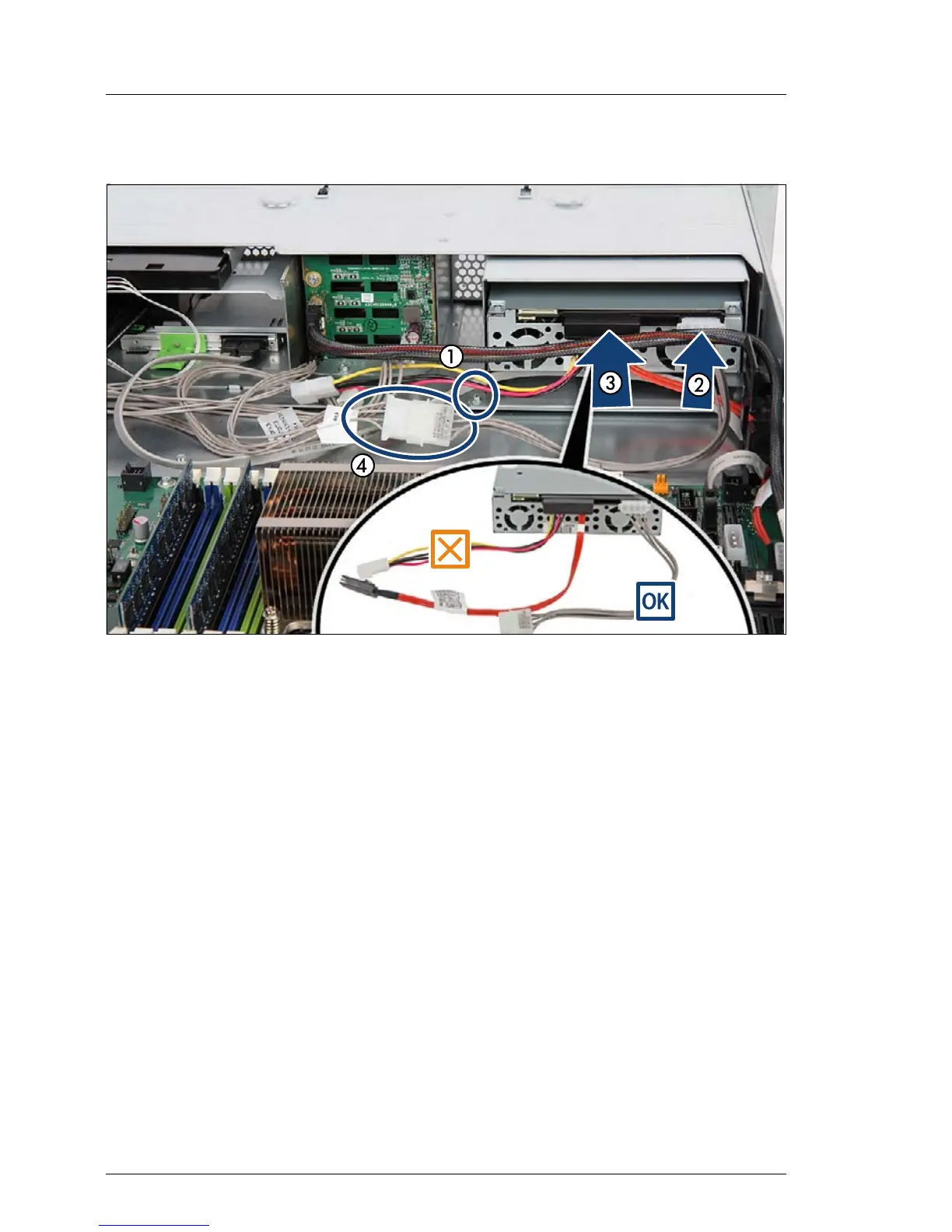

Figure 237: Connecting the cables to the LTO3
Ê Fasten the drive cage with the screw (1).
Ê Connect the power cable to the LTO drive (2).
Ê Connect the cable to the LTO drive (3).
V CAUTION!
Do not use the power supply cable (short ende) of cable (C18) that is
connected to connector (A) Use the cable (2) (C16) for the connecton
to the power supply.
Ê Connect the cable to the power cable (4).
12.14.7 Concluding steps
Perform the following procedures:
Ê "Installing the fan box" on page 184
Ê "Installing the air duct" on page 74
