RX300 S7
Upgrade and Maintenance Manual 193
Expansion cards and backup units
V CAUTION!
Keep the slot bracket for further use.
Always replace slot brackets into unused PCI slot openings to comply
with applicable EMC regulations and satisfy cooling requirements.
9.2.1.4 Installing an expansion card
Ê Remove the expansion card from its protective packaging.
I For further instructions regarding controller settings, please refer to
the accompanying documentation.
Ê If applicable, attach the required slot bracket to the expansion card as
described in section "Mounting expansion card slot brackets" on page 254.

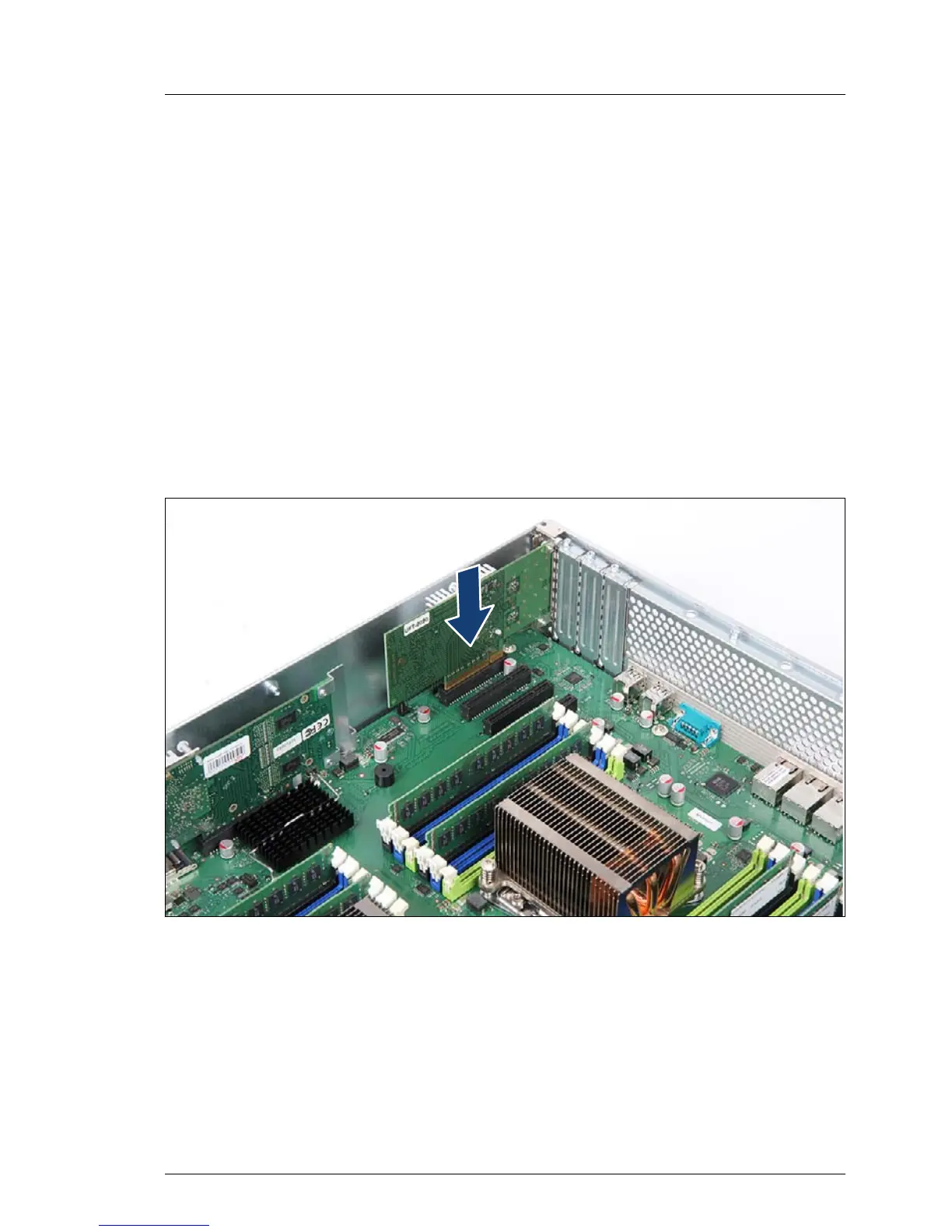

Figure 83: Installing the expansion card (A)
Ê Carefully insert the expansion card into the desired PCI slot and press down
firmly until it is fully seated in the slot.
