Fujitsu PRIMERGY RX300 S7 - Removing the Drive Cage

396 Upgrade and Maintenance Manual RX300 S7
Accessible drives
Ê "Removing backup and optical disk media" on page 89
Ê "Verifying and configuring the backup software solution" on page 89
Ê "Shutting down the server" on page 65
Ê "Disconnecting power cords" on page 66
Ê "Extending the server out of the rack" on page 69
If further required, remove the server from the rack as described in section
"Removing the server from the rack" on page 70.
Ê "Removing the server cover" on page 72
Ê "Removing the front cover" on page 501
Ê "Removing the air duct" on page 73
Ê "Removing the fan box" on page 183
12.15.3 Removing the drive cage
LTO4/5 drive

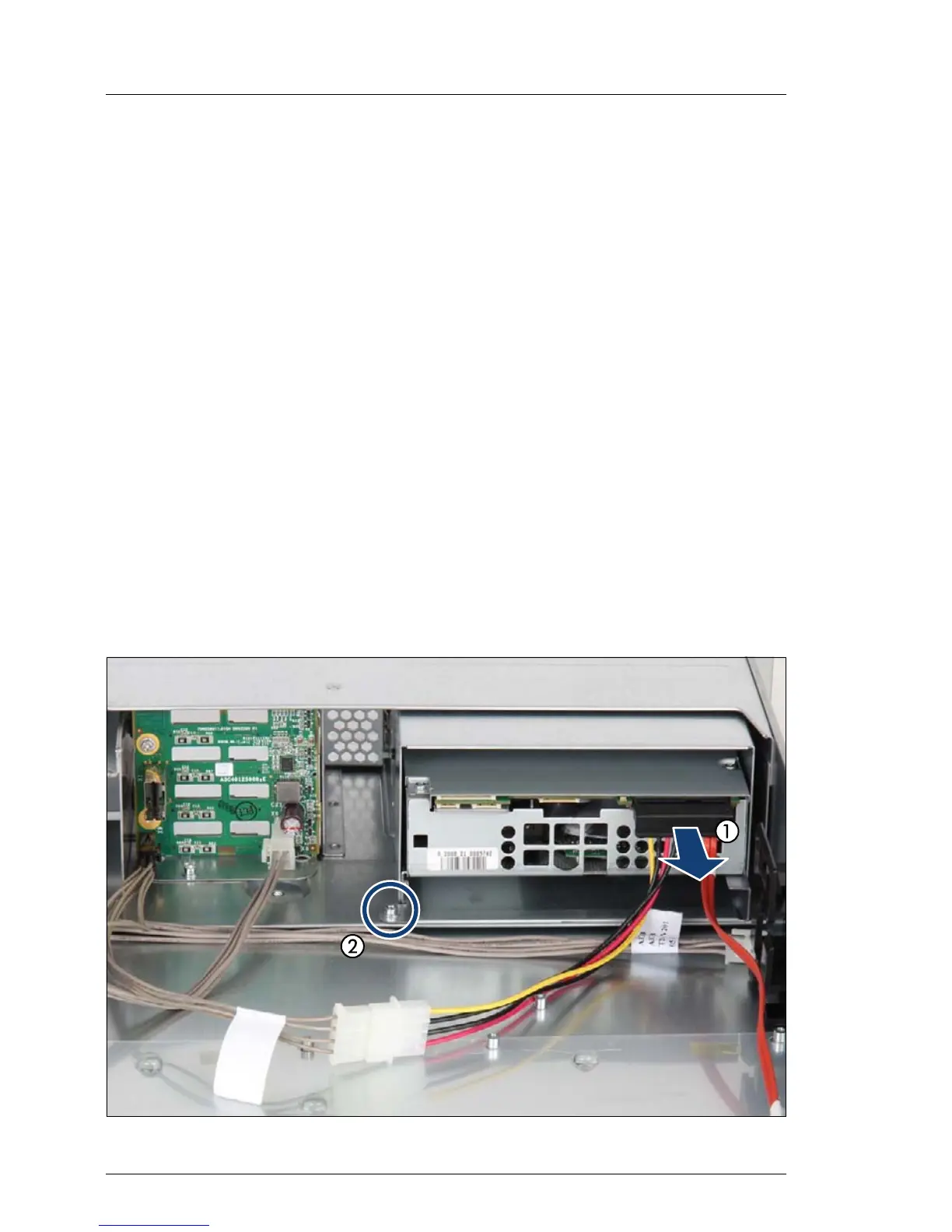

Figure 238: Removing the drive cage
