Fujitsu PRIMERGY RX300 S7 - Installing the 12 X 2.5-Inch HDD SAS Backplane

RX300 S7 Upgrade and Maintenance Manual 173
Hard disk drives / solid state drives
Ê Remove the three screws of the 12x 2.5-inch HDD SAS backplane (see
circles).
Ê Tilt out the 12x 2.5-inch HDD SAS backplane as shown.
Ê At a slight angle, unhinge the 12x 2.5-inch HDD SAS backplane from the
guides on the drive cage and remove it.
7.4.3.4 Installing the 12x 2.5-inch HDD SAS backplane

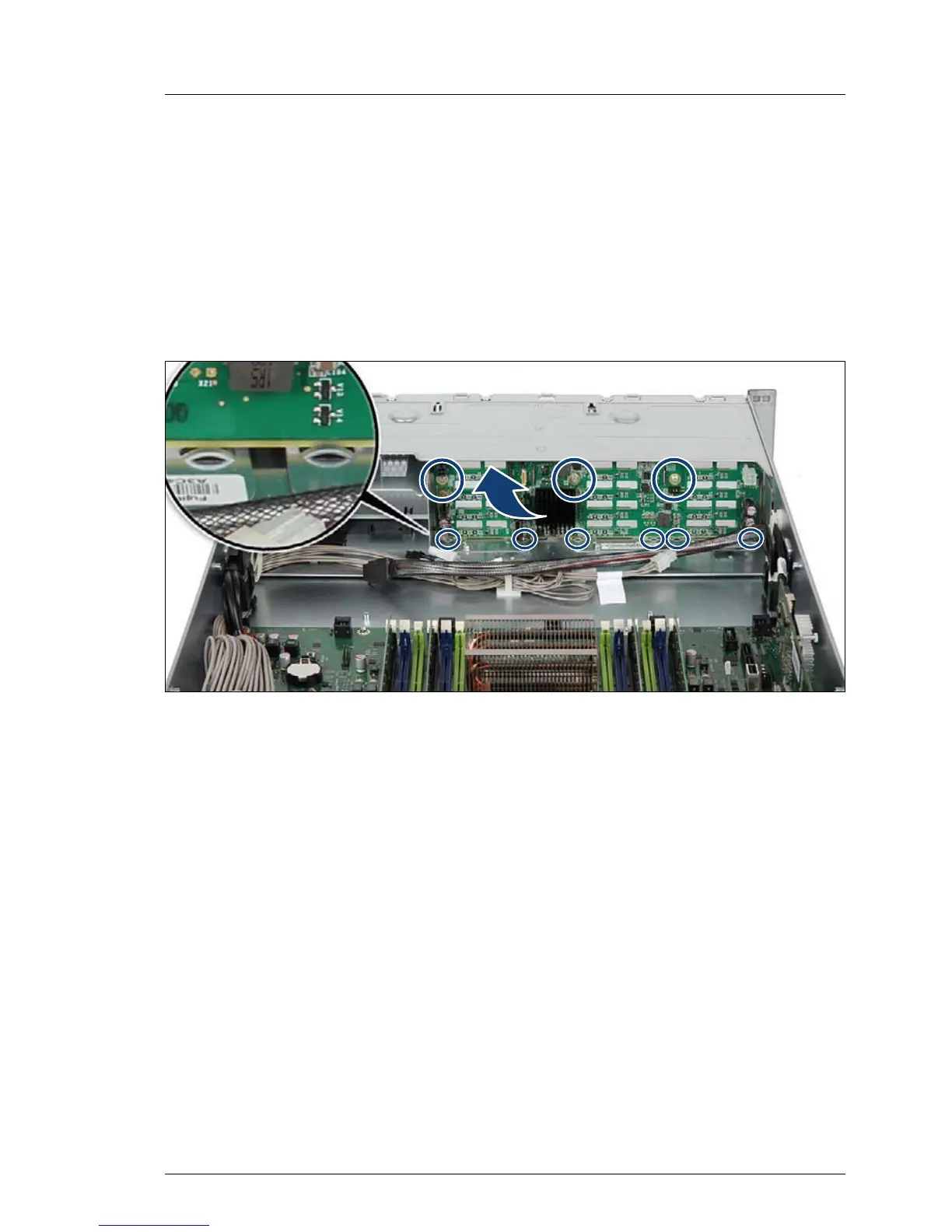

Figure 72: Installing the 12x 2.5-inch HDD SAS backplane (A)
Ê At a slight angle, fit the 12x 2.5-inch HDD SAS backplane into the guides on
the bottom of the chassis.
Ê Fold in the 12x 2.5-inch HDD SAS backplane.
Ê Secure the 12x 2.5-inch HDD SAS backplane with the three screws .
