Front panel
13.3.1.3 Removing the front panel module
Ê "Removing the front panel module" on page 410
Ê If applicable remove the front VGA connetor see section "Removing the front
VGA connector" on page 421.
13.3.1.4 Preparing the front panel module

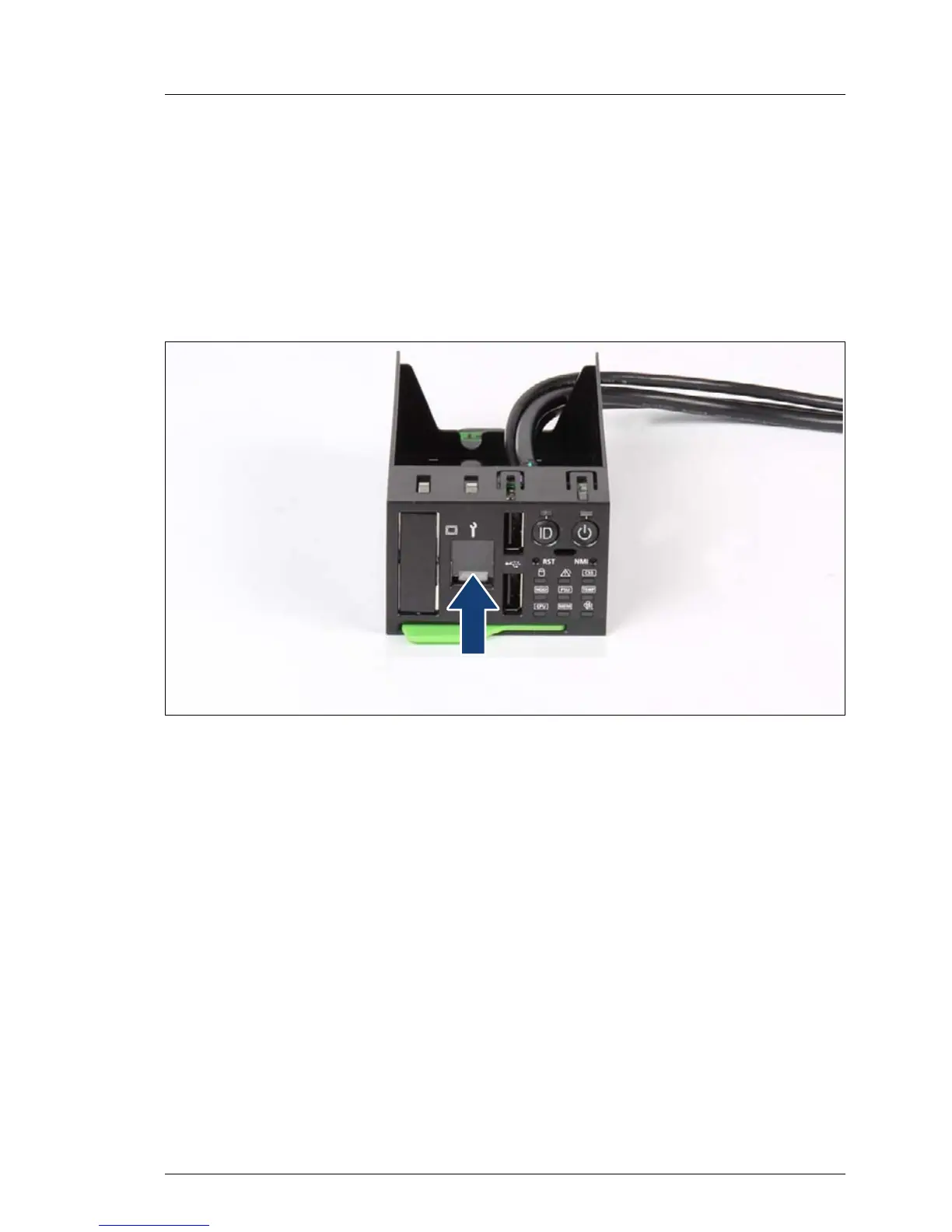

Figure 260: Breaking out the front LAN cover plate
Ê Break out the LAN cover plate on the front panel cover.
I Please note that once removed, the front LAN cover plate cannot be
refitted.
