RX300 S7 Upgrade and Maintenance Manual 245
Expansion cards and backup units

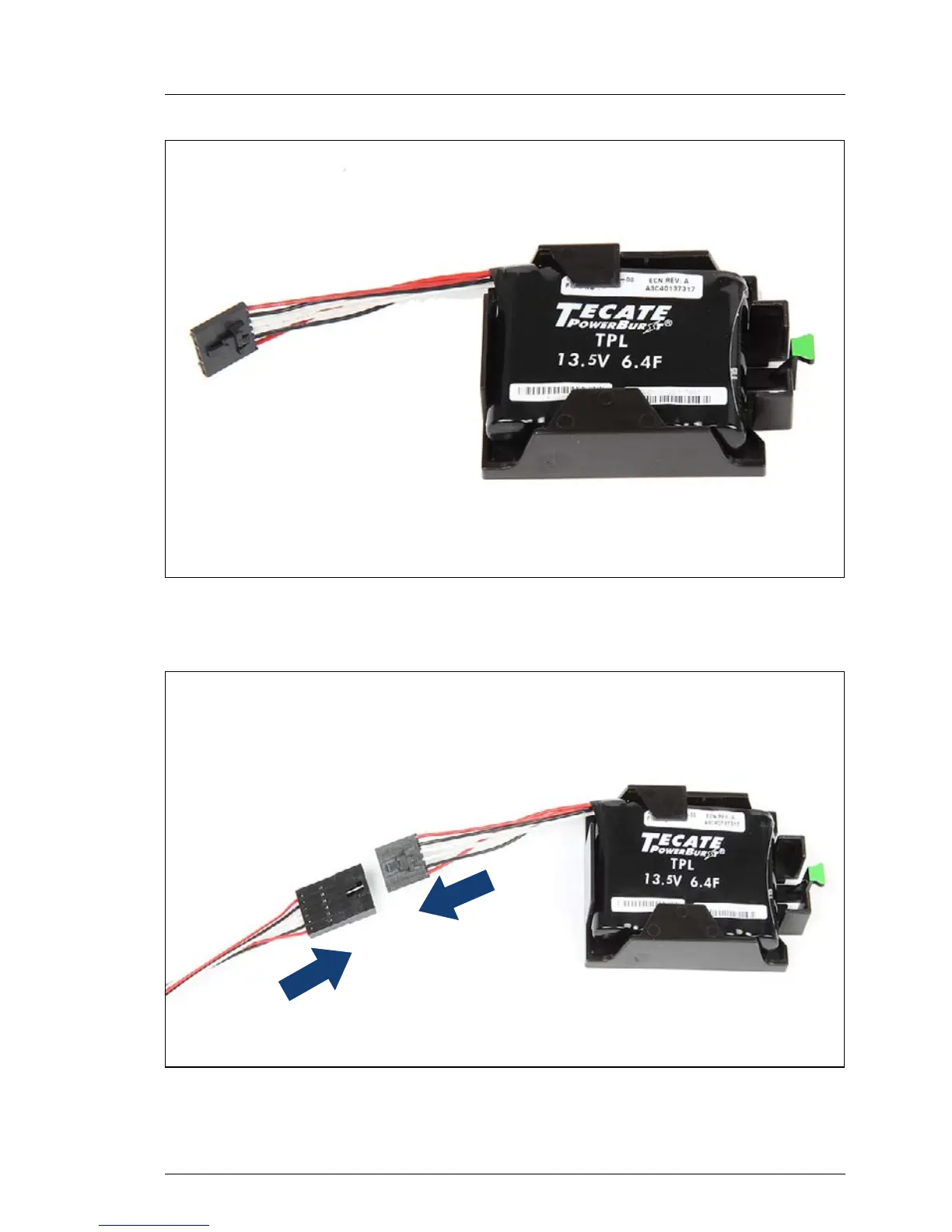

Figure 112: Installing the FBU in the FBU holder (B)
Ê Ensure that the FBU is properly seated in the FBU holder as shown.
Figure 113: Connecting the FBU adapter cable to the FBU
