Fujitsu PRIMERGY RX300 S7 - Switching the Server On and Off

RX300 S7 Upgrade and Maintenance Manual 75
Basic hardware procedures

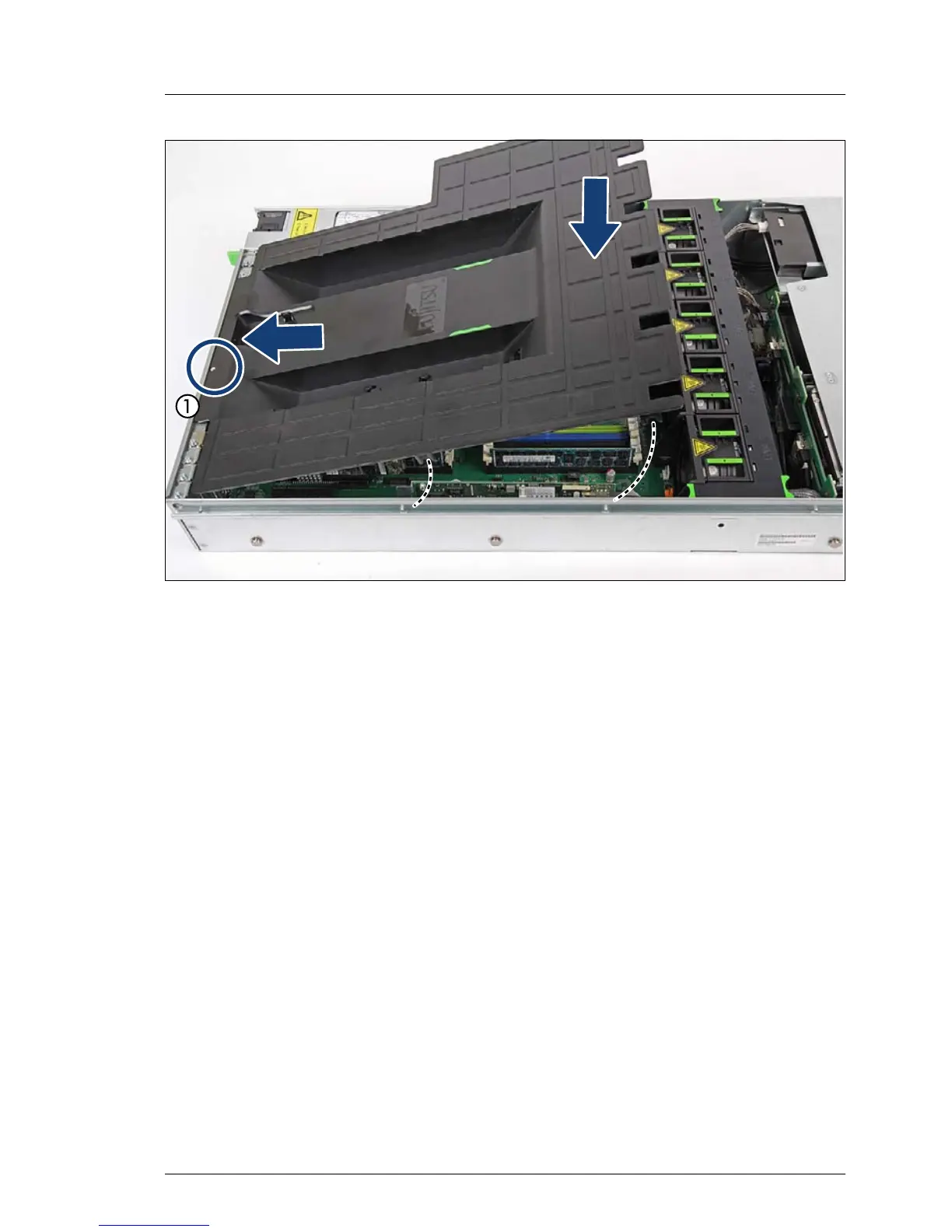

Figure 17: Installing the air duct
Ê Insert the air duct first with the rear side (1).
I If there is a BBU or FBU installed, follow the procedure that is
described in section "Installing the air duct with a BBU" on page 232
or in section "Installing the air duct with an FBU" on page 246.
