TX150 S8 / TX200 S7
Upgrade and Maintenance Manual
115
Power supply units
Ê
Lif
t the power supply unit out of the chassis (2).

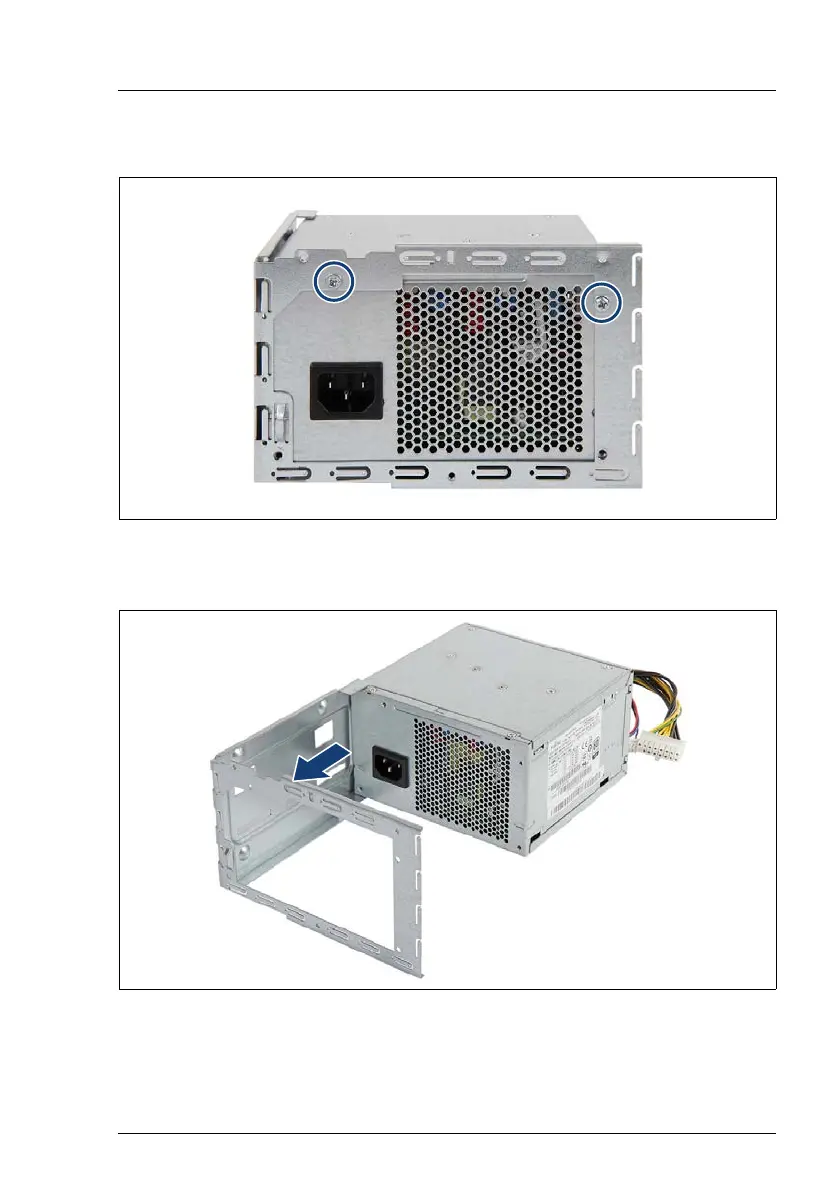

Figure 42: Removing the power supply unit f
rom the installation frame (A)
Ê
Remove the two screws (see circles).
Figure 43: Removing power supply unit from the i
nstallation frame (B)
Ê
Remove the power supply unit from the inst
allation frame.
