114
Upgrade and Maintenanc
e Manual
TX150 S8 / TX200 S7
Power supply units
6.2.2.3
Removing t
he defective standa
rd power supply u
nit

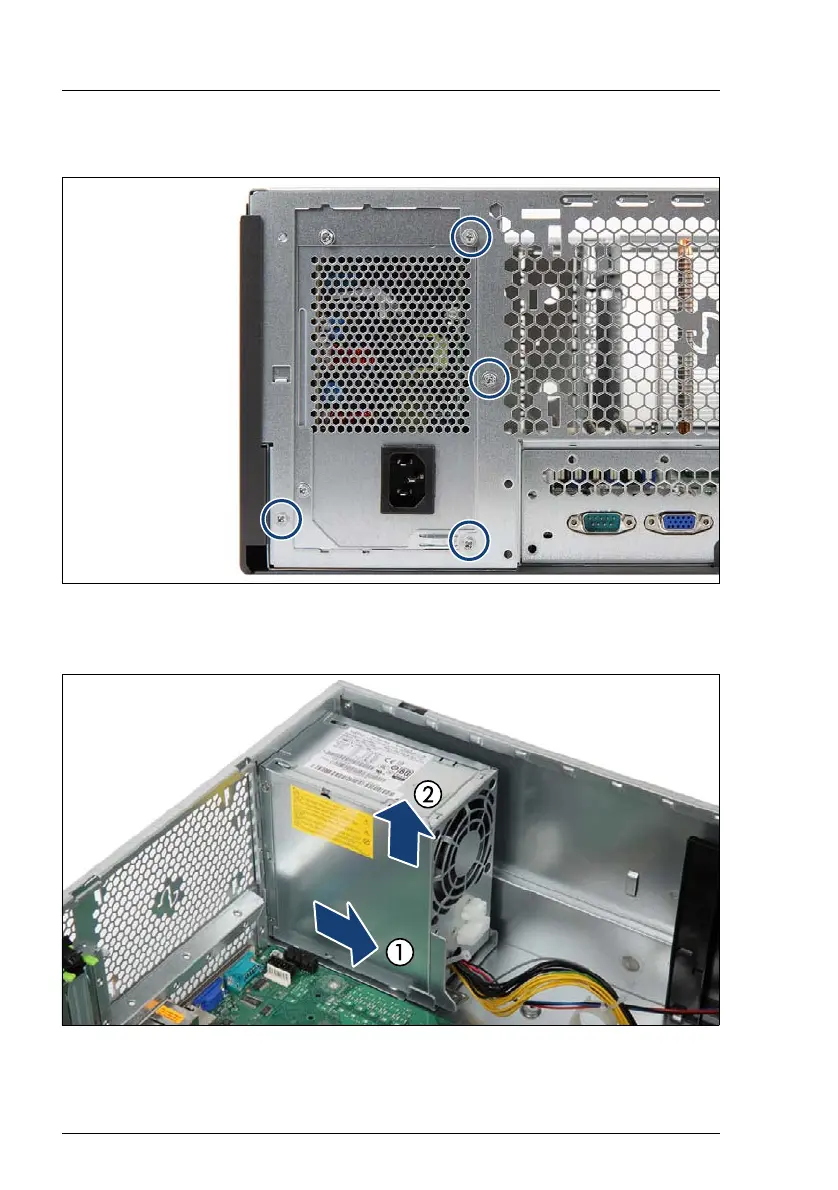

Figure 40: Detaching t
he standard power supply unit
Ê
Remove the four screws (see circles).
Figure 41: Removing the standard power supply uni
t
Ê
Slide the power supply unit i
nside the chassis by 3
cm (1).
113
115
