6.4.3 Installing the hot-plug power supply units

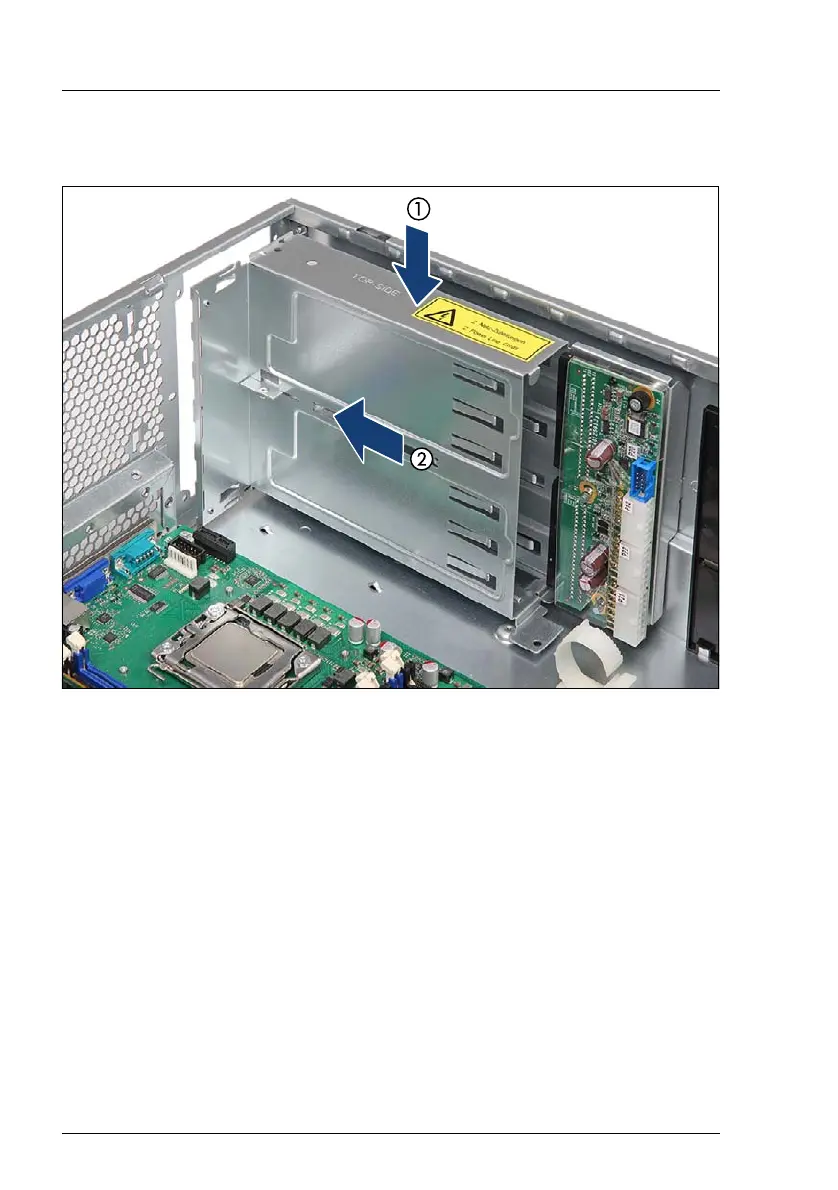

Figure 55: Installing the PSU cage

Ê Insert the PSU cage into the chassis (1).

Ê Slide the new PSU cage towards the rear of the chassis (2).
