TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 225
Expansion cards and backup units
Ê Connect the BBU cable to the BBU board.
V CAUTION!
Make sure that the connector side with the three dots points towards you
(see close-up). Otherwise, short-circuits may result!
9.5.2.3 Installing the BBU in the holder

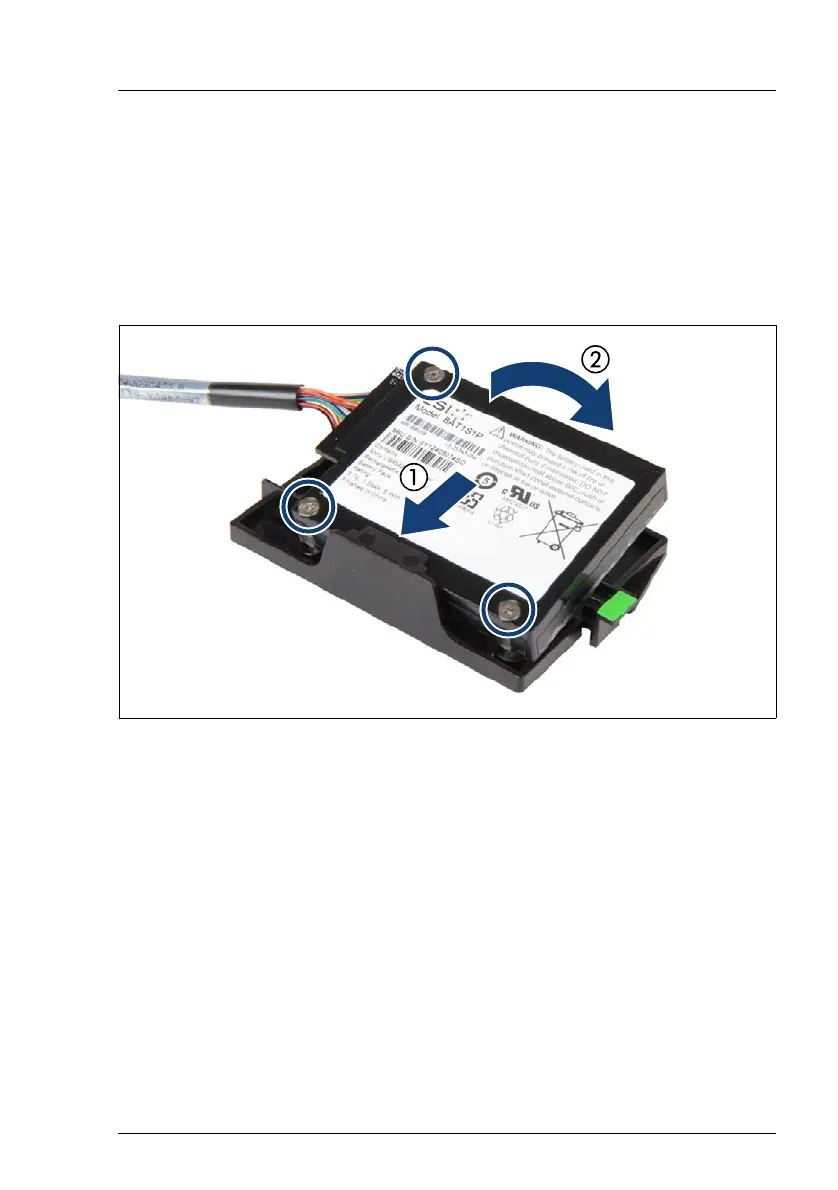

Figure 151: Installing the BBU in the BBU holder
Ê At a slight angle, fit the BBU under the right retaining bracket on the BBU
holder (1).
Ê Fold down the BBU until it locks in place (2).
