TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 307
Accessible drives and LSD

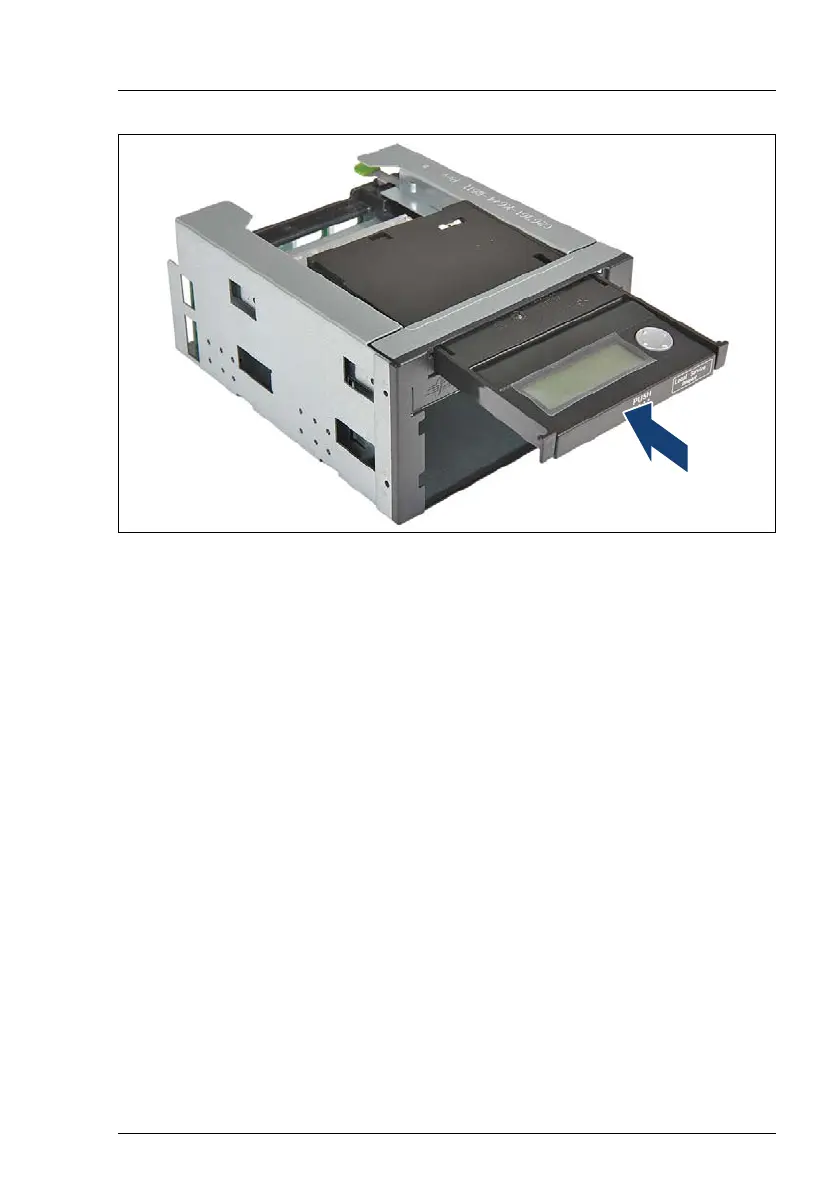

Figure 225: Inserting the LSD module
Ê Insert the LSD module into its installation bay and push in until it locks in
place.
Ê Before inserting the 2x 3.5-inch HDD extension box into the chassis,
connect the LSD cable to the LSD module (see section "Cabling" on
page 403).
12.6.1.4 Installing the 2x 3.5-inch HDD extension box
Ê Install the 2x 3.5-inch HDD extension box into installation bays 2 and 3 as
described in section "Installing an HDD extension box" on page 172.
12.6.1.5 Cabling the slimline ODD and LSD
Ê Connect the LSD, SATA and power cables (see section "Cabling" on
page 403).
