426 Upgrade and Maintenance Manual TX150 S8 / TX200 S7
Appendix
17.2.2 Connectors and indicators on the front panel
17.2.2.1 Front panel connectors

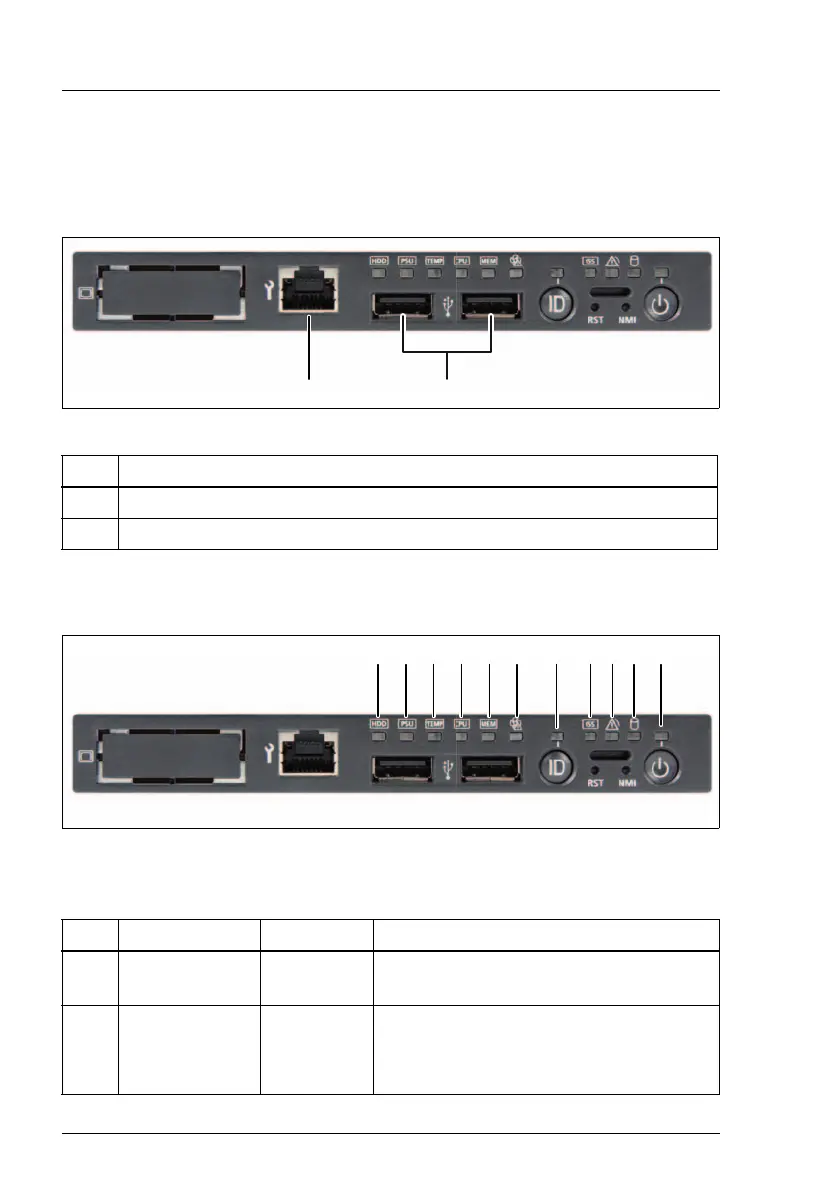

Figure 336: Front panel connectors
17.2.2.2 Front panel controls and indicators
Figure 337: Front panel controls and indicators
Local diagnostic indicators
Pos. Component
1 Front LAN connector (optional)
2 2 USB connectors
Pos. Indicator Status Description
1
HDD / SSD
error indicator
orange on
HDD / SSD, SAS / SATA backplane or
RAID controller failure detected
2
PSU error
indicator
orange on
Hot-plug PSU failure detected
I Only available in redundant PSU
configurations.
0
1
0
6
5
4
3
2
1 98
7
:
