13.1.1.2 Removing the front panel module
Disconnecting cables

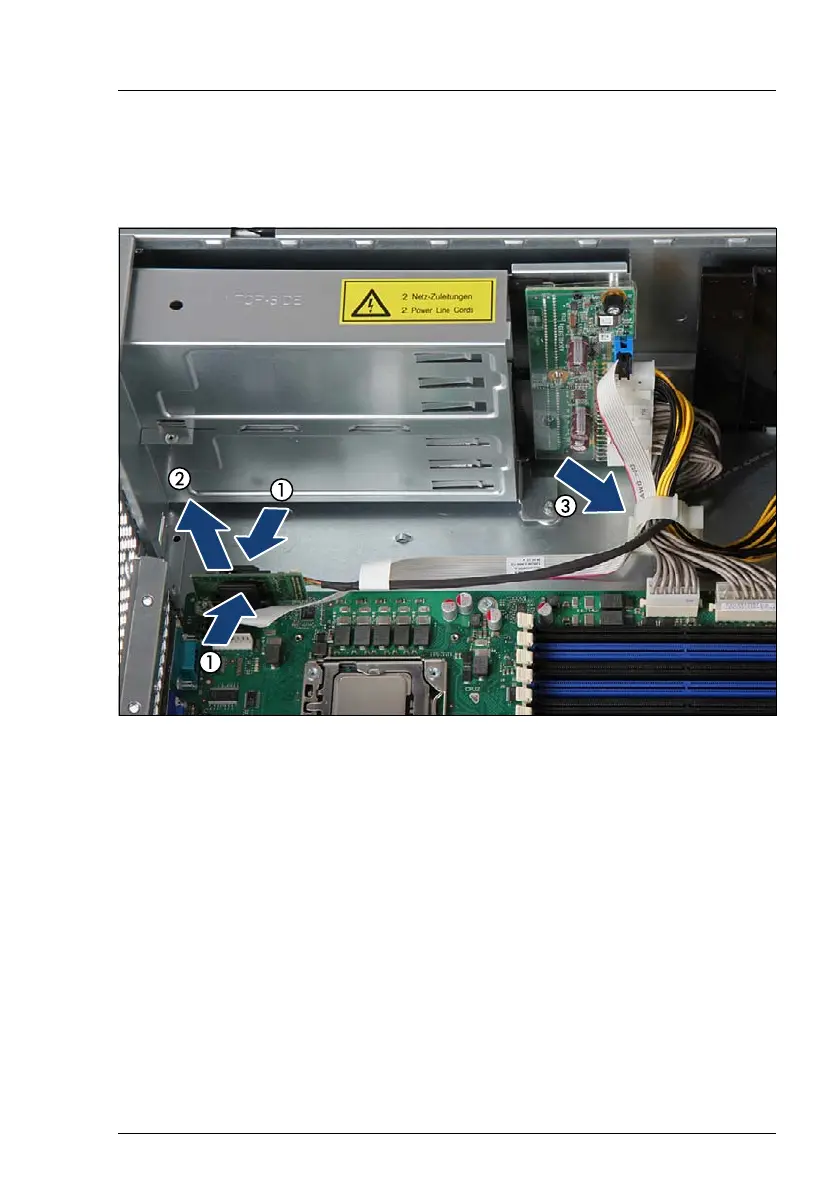

Figure 245: Disconnecting the front LAN board
Ê If applicable, disconnect the front LAN board from the system board:
Ê Press in on the locking latch on the front LAN board holder (1).
Ê While holding the locking latch pressed, pull the front LAN board out of
its socket (2).
Ê Remove the front LAN cable from the cable guide (3).
