358 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
System board and components
14.3.3.2 Removing the defective UFM
Ê Remove the UFM from the system board as described in section "Removing
the UFM" on page 356.
Ê The UFM spacer remains on the system board.
14.3.3.3 Installing the new UFM

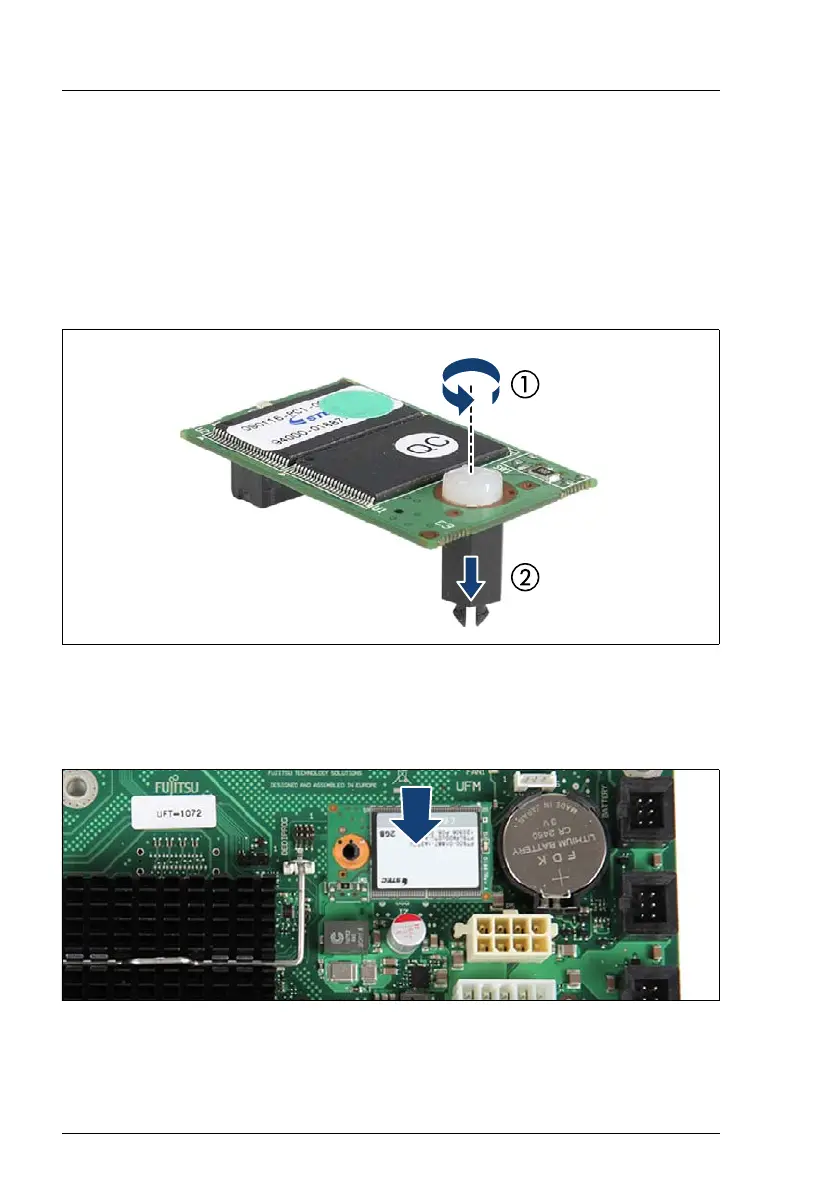

Figure 271: Preparing the new UFM
Ê Remove the nylon screw from the new UFM (1).
Ê Remove the UFM spacer (2).
Figure 272: Installing the UFM (A)
Ê Fit the UFM on the UFM connector and the remaining UFM spacer.
