7.3.4 Installing 3.5-inch HDD modules
7.3.4.1 Preliminary steps
Ê "Removing accessible drive and HDD bay covers" on page 60
Ê Locate the correct drive bay as described in section "3.5-inch HDD
configurations" on page 152.
7.3.4.2 Removing a 3.5-inch HDD dummy module

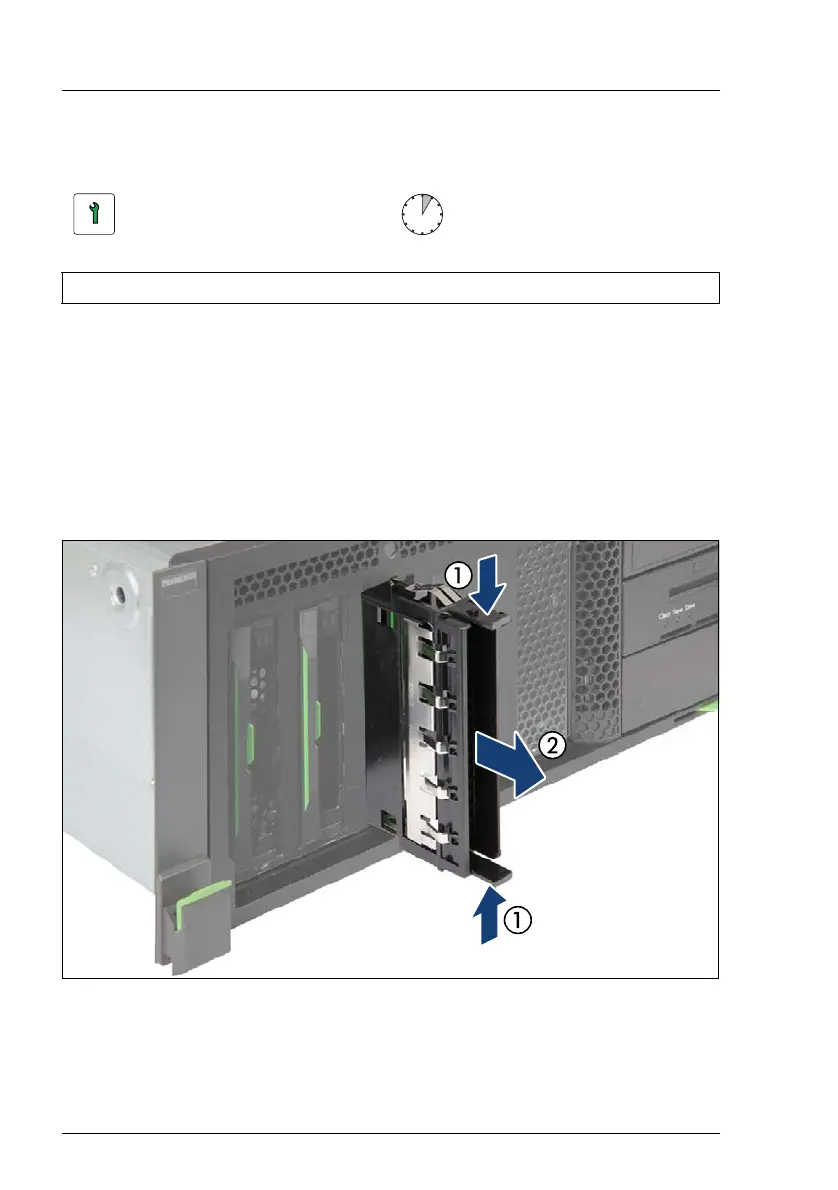

Figure 83: Removing a 3.5-inch dummy module
Ê Press in on the locking tabs on both sides of the dummy module to
disengage the locking mechanism (1).
Customer Replaceable Unit
(CRU)
Hardware: 5 minutes
Tools: tool-less
