Fujitsu PRIMERGY TX150 S8 - Installing the New 3.5-Inch HDD SAS Backplane

166 Upgrade and Maintenance Manual TX150 S8 / TX200 S7
Hard disk drives / solid state drives
Ê Remove the 3.5-inch HDD bay top cover from the chassis (2).

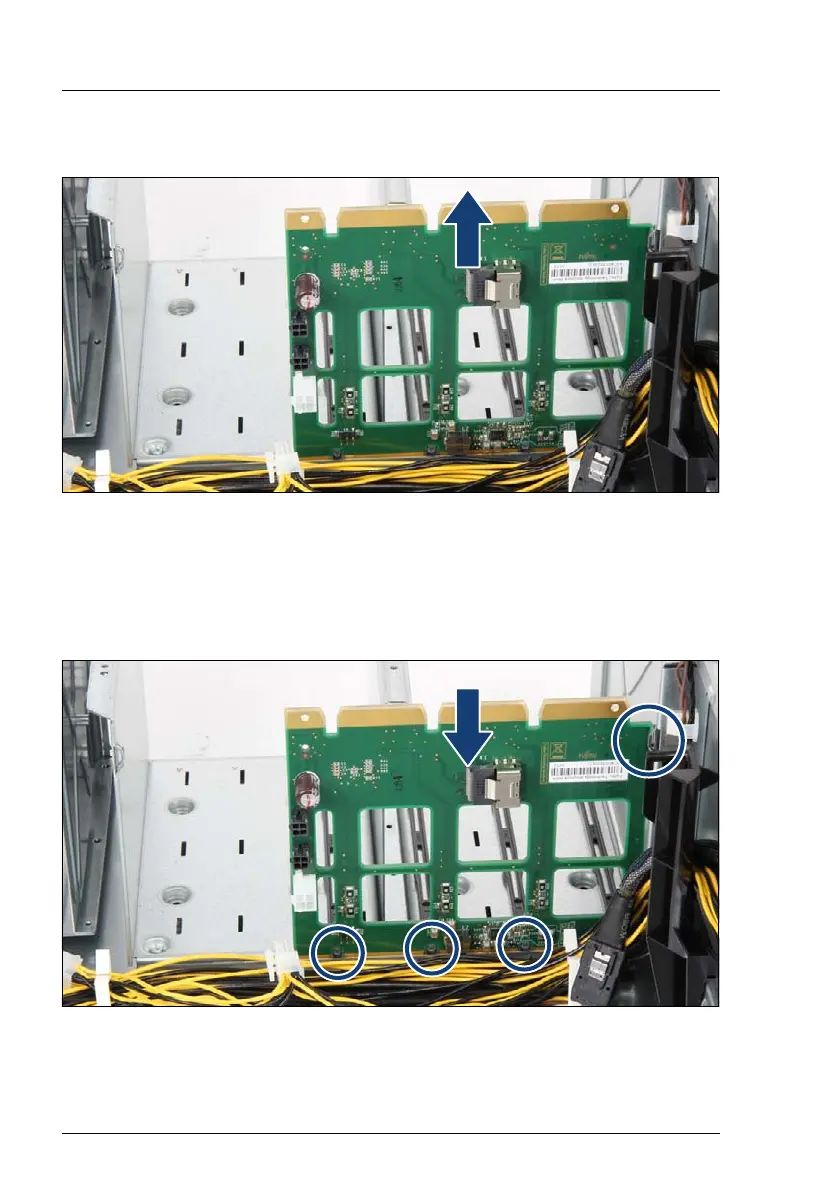

Figure 92: Removing the defective 3.5-inch HDD SAS backplane
Ê Pull up on the SAS backplane and remove it from the HDD bay in a vertical
motion.
7.3.7.3 Installing the new 3.5-inch HDD SAS backplane
Figure 93: Installing the new 4x 3.5-inch HDD SAS backplane
Ê Fit the SAS backplane into the guide on the outer wall of the HDD bay and
lower it into the bottom rim.
