Fujitsu PRIMERGY TX150 S8 - Removing the FBU with the Holder

TX150 S8 / TX200 S7 Upgrade and Maintenance Manual 237
Expansion cards and backup units
9.5.5.2 Removing the FBU with the holder

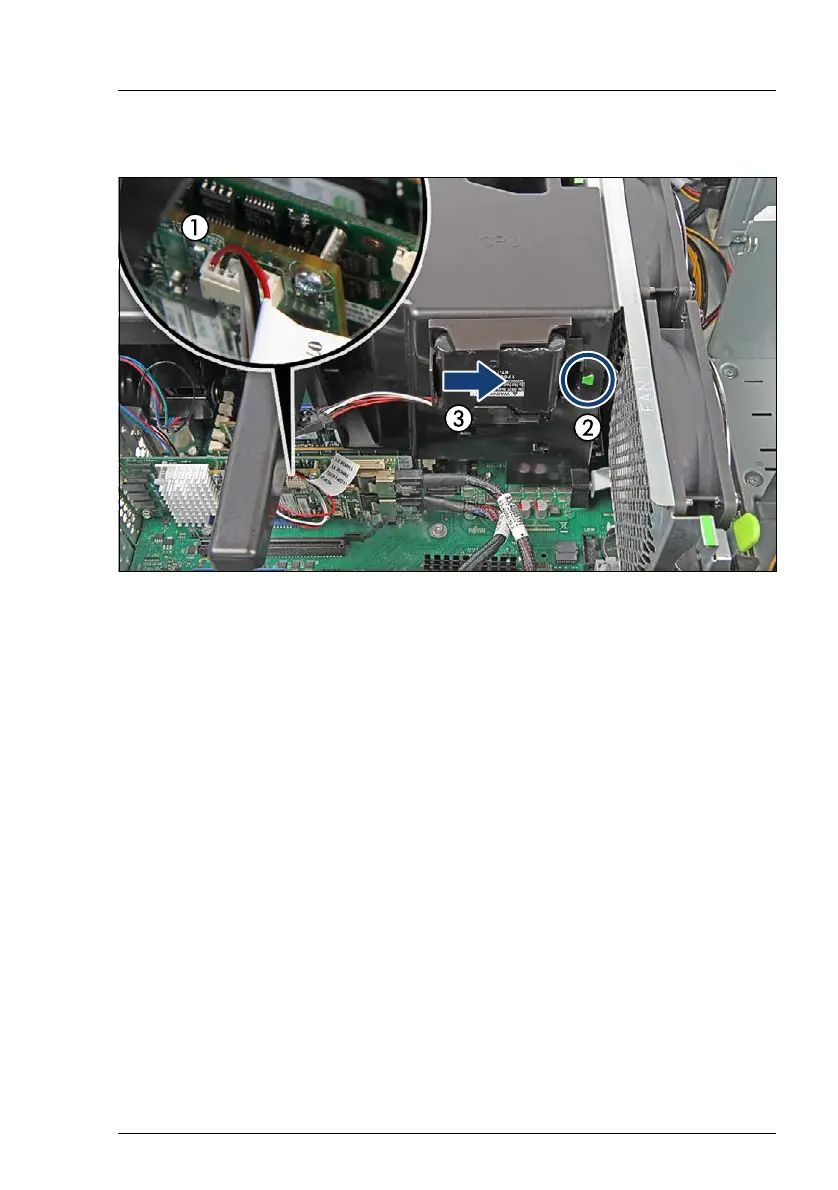

Figure 164: Removing the FBU holder from the chassis
Ê Carefully disconnect the FBU cable from the RAID controller (1).
Ê Lift up the green locking handle on the FBU holder (2) while sliding the FBU
holder in the direction of the arrow as far as it will go (3).
I After that, the hooks on the air duct will rest in the wide ends of the
keyhole slots on the holder.
Ê Lift the FBU holder out of the chassis.
