56 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Basic hardware procedures
4.4.1.4 Removing the rack front cover
I You remove the rack front cover when installing/removing accessible
drives or HDD extension boxes.

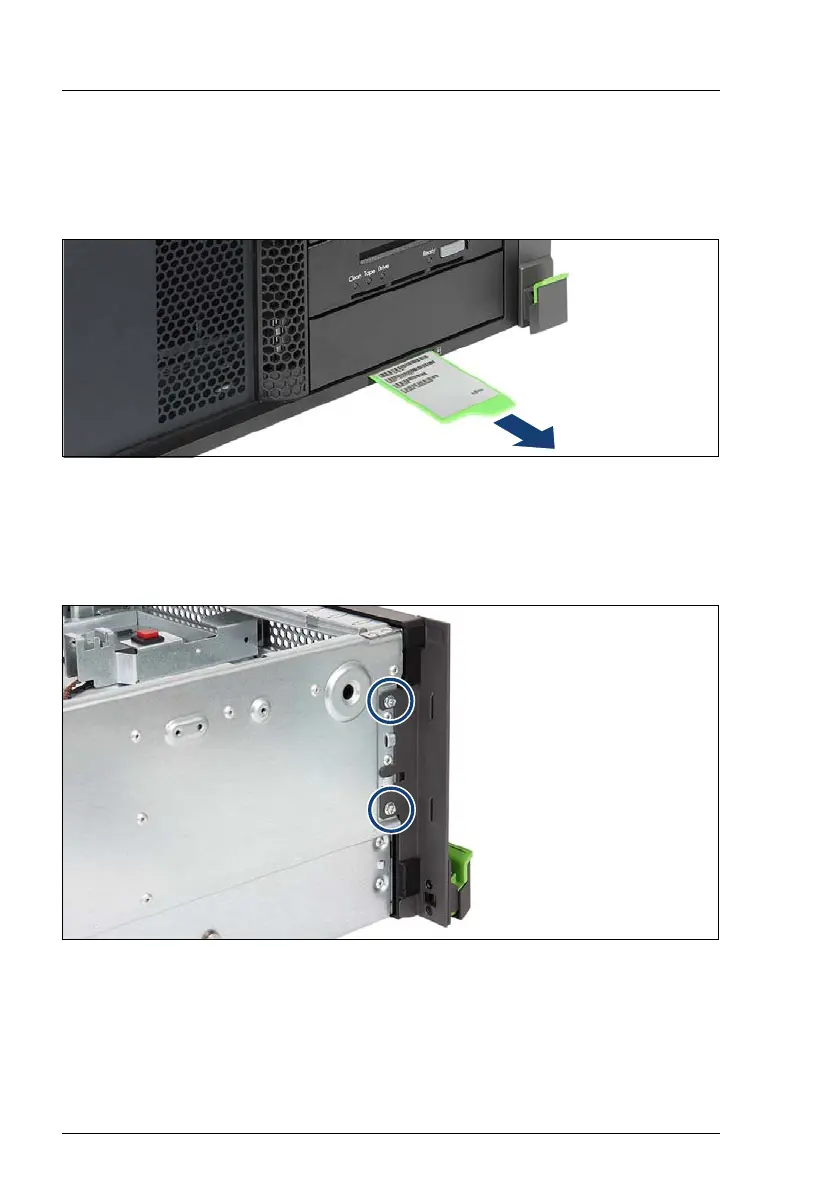

Figure 6: Removing the ID card (rack server)
Ê Remove the ID card from the server.
I It may be necessary to pull out on the ID card rather firmly. However,
do not apply excessive force.
Figure 7: Removing the rack front cover (A)
Ê Remove two screws (see circles) from the side brackets on either side.
