Hard disk drives / solid state drives
7.2.2.2 HDD / SSD naming scheme

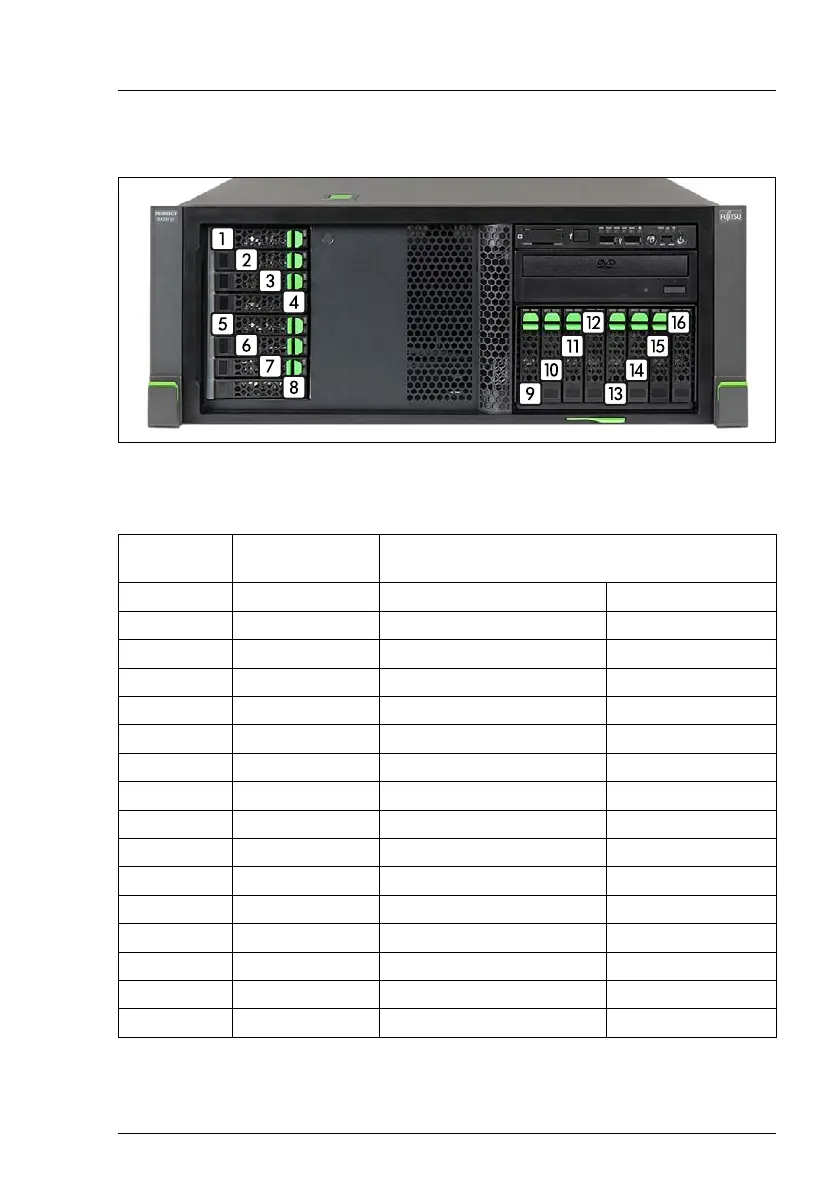

Figure 66: Naming scheme with 16 2.5-inch HDDs (4 SAS backplanes)
With two SAS controllers
Position
Logical drive
number
ServerView RAID Manager display name
[1] 0 HDD vendor name (0:0) Ctrl (0)
[2] 1 HDD vendor name (0:1) Ctrl (0)
[3] 2 HDD vendor name (0:2) Ctrl (0)
[4] 3 HDD vendor name (0:3) Ctrl (0)
[5] 4 HDD vendor name (0:4) Ctrl (0)
[6] 5 HDD vendor name (0:5) Ctrl (0)
[7] 6 HDD vendor name (0:6) Ctrl (0)
[8] 7 HDD vendor name (0:7) Ctrl (0)
[9] 0 HDD vendor name (1:0) Ctrl (1)
[10] 1 HDD vendor name (1:1) Ctrl (1)
[11] 2 HDD vendor name (1:2) Ctrl (1)
[12] 3 HDD vendor name (1:3) Ctrl (1)
[13] 4 HDD vendor name (1:4) Ctrl (1)
[14] 5 HDD vendor name (1:5) Ctrl (1)
[15] 6 HDD vendor name (1:6) Ctrl (1)
[16] 7 HDD vendor name (1:7) Ctrl (1)
